Lithium battery propellant (burning) testing machine

product characteristics of [Lithium battery propellant (burning) testing machine]

1. Applicable standard UL1642-2012, UL 2054-2008, GB 8897.4 -2008 test requirements;

2. To test the safety of the battery through leakage, combustion or explosion of the battery in an aluminum protective net.

3. Make it according to the standard drawing;

4. Remote control automatic ignition;

5. Can be customized according to customer needs non-standard.

Brief introduction of [Lithium battery ejection (Combustion) testing Machine]

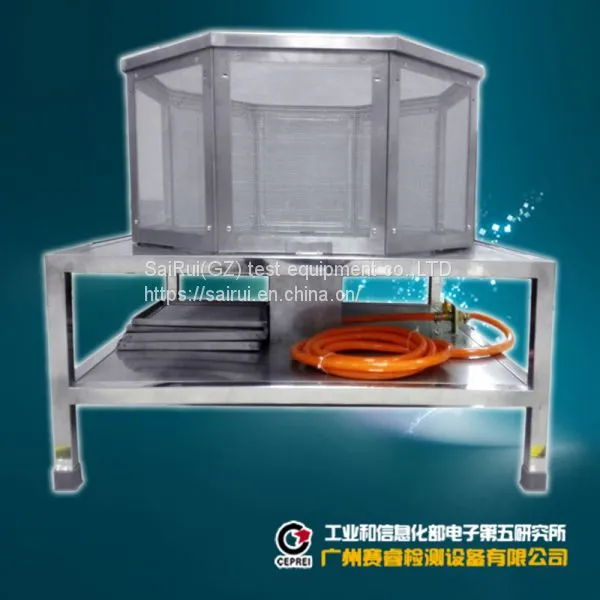

The 7203A battery ejector / combustion test device meets the combustion injection clause of item 7.9 of GB31241-2014. The whole frame is made of stainless steel, which is easy to be cleaned, and the eight aluminum mesh is fixed into pieces by stainless steel frame, respectively, installed on the eight-sided bracket, which is easy to be replaced. This device can be used to test many kinds of lithium batteries, its operation is simple, its reliability is high, and it meets the standard requirements completely.

Technical parameters of [Lithium battery ejector (combustion) tester]  (customizable)

1.. An octagonal cage: as required in figure 20.1 of UL1642-2009, accompanied by the following:

2. The circular hole diameter of the partition plate is 102 mm; the wire mesh on the partition plate: 20 holes / inch, steel wire diameter 0.43 mm; (4) the height of the partition plate is 38 mm above the lamp socket, and the fuel and air flow can be adjusted.

3. Octagonal iron cage with an edge distance of 610 mm and a height of 305 mm.

4. Each side of the metal separator is made of a layer of aluminum wire with a diameter of 0.25 mm and 4. The aluminum mesh made of 16 to 18 aluminum wires in each direction (25.4 mm) can be easily replaced;

5. Equipped with automatic igniters;

6. Consumables self-contained: burning gas, aluminum mesh and wire mesh.

Product maintenance and regular maintenance of [Lithium battery ejection (combustion) tester]

Maintenance：

In order to prevent the occurrence of electric shock, do not lift the cover of the instrument, and all the parts inside the instrument need not be maintained by the user. If the instrument is abnormal, seek the maintenance of our company.

Maintenance routine：

Ac power supply, input power cord and related accessories shall be carefully checked and verified at least once a year to protect the safety of the user and the accuracy of the instrument.
