Characteristics of [Lithium battery explosion-proof box]
1. The battery explosion-proof box is mainly used for personal safety protection in battery safety performance test.
2. Protection for operators and instruments;
3. Can be done according to customer needs uncalibrated.

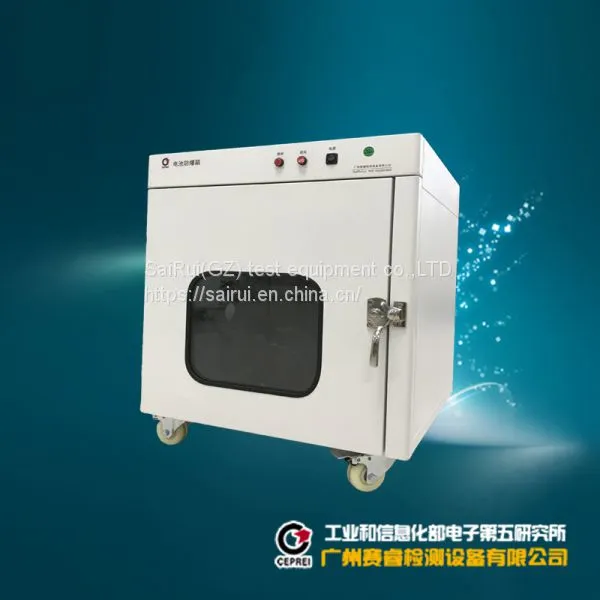

Introduction of [Lithium battery explosion-proof box]
The battery explosion-proof box is mainly used for personal protection in battery safety performance testing. In overcharging and discharging, charging and discharging tests and other tests, the battery is placed in the explosion-proof box and connected with the external charge-discharge tester. Protect operators and instruments.
Technical parameters [Lithium battery explosion-proof box] (not customizable)
1. Explosion-proof box structure: there are 8 small box body composition, divided into two parts, each of four;
2. Each explosion-proof box inside the box size: 500X500X500MM;
3. Inner box material: 304 stainless steel;
4. The outer box quality is: cold-rolled steel plate, spray plastic treatment;
5. Box body divided into two parts, divided into two layers up and down, single door;
6. Explosion-proof door installed with explosion-proof glass, through the glass can see the inside of the box battery test status;
7. The explosion-proof door is connected with the box body by the strong closing page, plus the explosion-proof lock;
8. The bottom of the test chamber is covered with insulated rubber to prevent the external short circuit of the battery;
9. The top of the box is equipped with energy-saving lights to illuminate the whole test space;
10. A strong exhaust fan is installed on the back of the box to discharge the smoke out of the box;
11. Each box side open a vent, do not need to be sealed with stainless steel cover;
12. Each box is connected with two 2.5 square-square power cords and two insulated handle clips are installed in the wire head for clamping the positive and negative electrodes of the battery. The external power cord can determine the length according to the actual situation.
13. Centralized control panel can control smoke discharge and lighting inside each test chamber separately;
14. The bottom is equipped with 8 casters and coaster pads for easy movement and fixation.
15. Equipment dimensions: about 3000mm (long) * 600mm (deep) * 1200mm (high); weight: about 400kg;
16. Working power supply: 220V ±10%, 50Hz ±2Hz, 5A;
17. Use Environmental advice: rooms with ventilated smoke pipes.
Maintenance and regular maintenance of [Lithium battery explosion-proof box]
Maintenance:
To prevent the occurrence of electric shock, do not lift the cover of the instrument. All parts inside the instrument need not be maintained by the user. If there is an abnormal condition in the instrument, please ask for maintenance from my laboratory. the attached lines and block diagrams are for reference only.
Regular maintenance:
At least once a year, the AC power supply and relevant accessories of input power line shall be carefully checked and checked to protect the safety of the user and the accuracy of the instrument....
