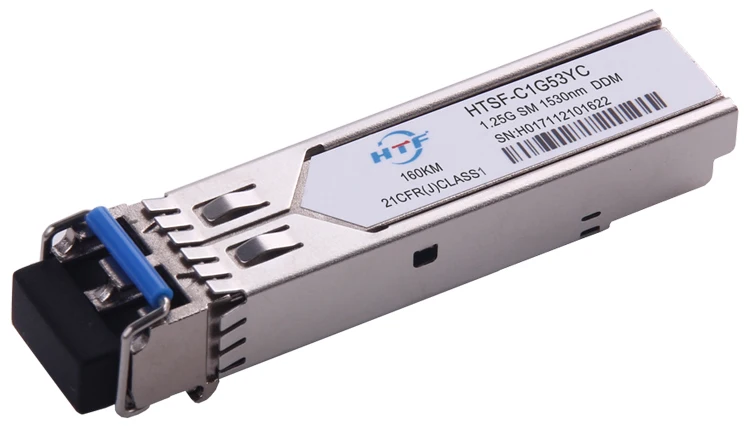

Help Center1250Mb/s SFP CWDM 160km YR Transceivers
Related Products
-
1250Mb/s CWDM SFP 80km ZR TransceiversUS$ 30 - 60MOQ: 1 Piece -
1250Mb/s SFP CWDM 40km ModuleUS$ 29 - 60MOQ: 1 Piece
-
1.25Gb/s SFP CWDM 20km Optical ModulesUS$ 29 - 60MOQ: 1 Piece
-
1.25Gb/s SFP CWDM 120km ModulesUS$ 35 - 70MOQ: 1 Piece
-
1.25Gb/s SFP DWDM 50GHz 120km Optical Transceiver ModuleUS$ 160 - 300MOQ: 1 Piece

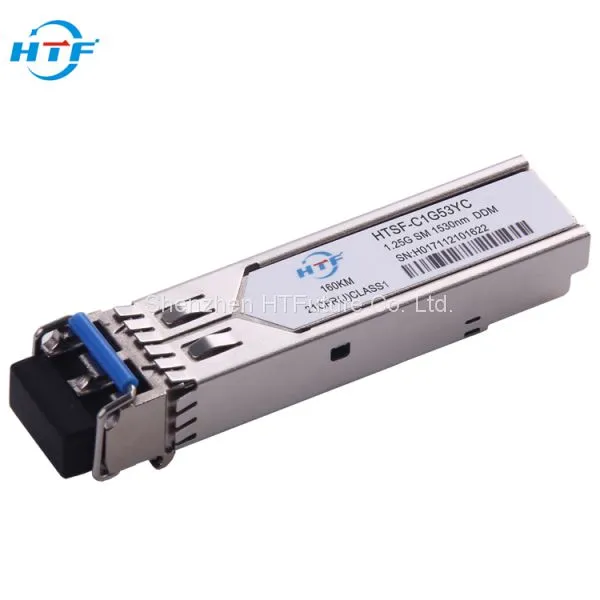

1.25Gb/s SFP CWDM 160km Optical Modules
Features
(1) Up to 1.25Gb/s data links
(2) CWDM DFB laser transmitter and APD photo-detector
(3) Up to 160km on 9/125µm SMF
(4) Hot-pluggable SFP footprint
(5) Duplex LC/UPC type pluggable optical interface
(6) Low power dissipation
(7) Metal enclosure, for lower EMI
(8) RoHS compliant and lead-free
(9) Support Digital Diagnostic Monitoring interface
(10) Single +3.3V power supply
(11) Compliant with SFF-8472
(12) Case operating temperature
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Applications
Switch to Switch Interface
Gigabit Ethernet
Switched Backplane Applications
Router/Server Interface
Other Optical Links
HTF’HTSF-C1GxxYx Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the CWDM DFB laser and the APD photo-detector .The module data link up to 160km in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
More details, Welcome to contact Ivy.
Related Product
(3) Optical Transport Network Product (OEO, OTU, OBP, OLP, EDFA etc)
We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. The optical modules are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.
