The HT6000-AAWG40 from HTF is a combined passive C-band 100GHz 40 channels DWDM multiplexer and de-multiplexer flat-top athermal AWG in DWDM system.
It may be used in pairs or in combination with any other vendor's ITU grid-compliant DWDM MUX DEMUX.

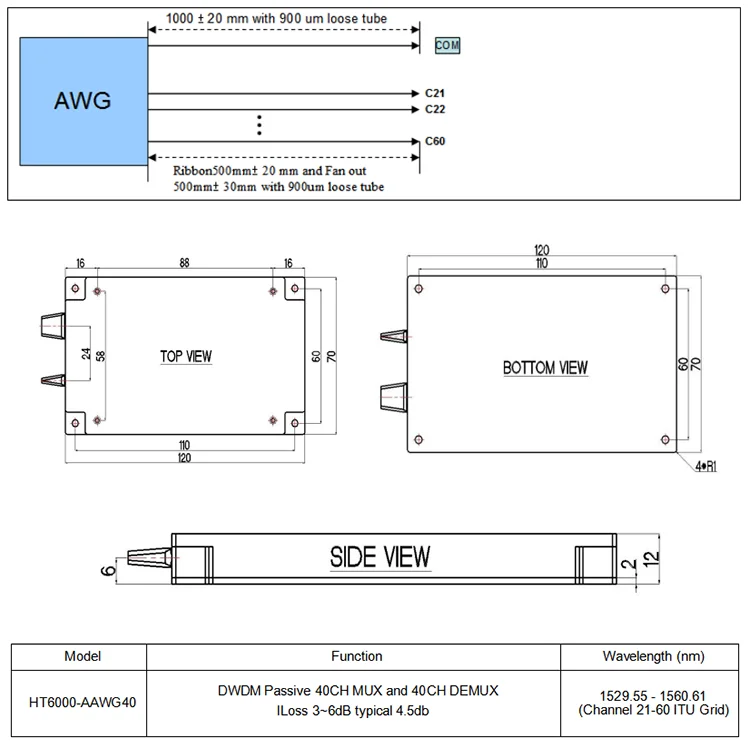

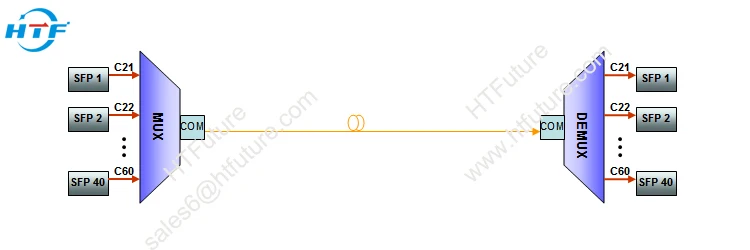

The HT6000-AAWG40 is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers. It can achieve 40CH multiplex and de-multiplex.
The complete passive solution requires no power cabling and no configuration, it is a true plug and plays solution.
Features:
(1) 40 Channels 100 GHz DWDM combined MUX & DEMUX
(2) Configuration is not require
(3) Completely passive, needs no power and no cooling
(4) Low insertion loss, insertion loss ≤6dB, typ 4.5dB
(5) Uniform insertion loss variation over the 40-channels - less than 1dB (typical 0.6dB) per MUX or DEMUX
(6) High channel isolation : adjacent isolation ≥25dB; non-adjacent isolation ≥35dB
(7) Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from HTFuture and other third parties
(8) High reliability, MTBF for 100 years
(9) Designed for Telcordia / Bellcore GR-120
Applications:
DWDM transmission
Metro and long-haul networks
Point-to-point DWDM fiber optimization
Linear add/drop DWDM fiber optimization
Optical Specifications
Parameters |
Notes |
Specifications |
|
Min |
Max |
||
Channel |
40CH |
||
Channel Spacing |
100GHz |
||
Reference Pass-band |
Relative to ITU Grid |
± 0.1nm |
|
ITU Frequency |
On ITU grid in C-band |
196.0THz |
192.1THz |
ITU Wavelength |
On ITU grid in C-band |
1530.33nm |
1561.42nm |
Center Frequency Accuracy |
Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels |
-0.05nm |
+0.05nm |
Insertion Loss |
Maximum of the insertion loss across the ITU pass-band over all channels |
6.0dB |
|
Insertion Loss Uniformity |
Maximum insertion loss variance across all channels |
1.0dB |
|
Ripple |
Maximum of the loss variance across the ITU pass-band over all channels |
0.75dB |
|
1dB Bandwidth |
1dB from min Insertion Loss, full width, average polarization |
0.36nm |
|
3dB Bandwidth |
3 dB from min Insertion Loss, full width, average polarization |
0.51nm |
|
Adjacent Channel Isolation |
Ratio of peak transmission to the maximum transmission over both adjacent pass-bands |
25dB |
|
Non-Adjacent Channel Isolation |
Ratio of peak transmission in channel pass-bands to maximum transmission over all non-adjacent pass-bands |
30dB |
|
Total Crosstalk |
Ratio of power in channel to power in all other pass-bands |
21dB |
|
Polarization Dependent Loss |
Maximum ratio of transmissions over all polarization states, over the ITU pass-band |
0.5dB |
|
Return Loss |
40dB |
||
Polarization Mode Delay (PMD) |
In Reference Passband over all channels |
0.5ps |
|
Chromatic Dispersion |
In Reference Passband over all channels |
-20ps/nm |
20ps/nm |

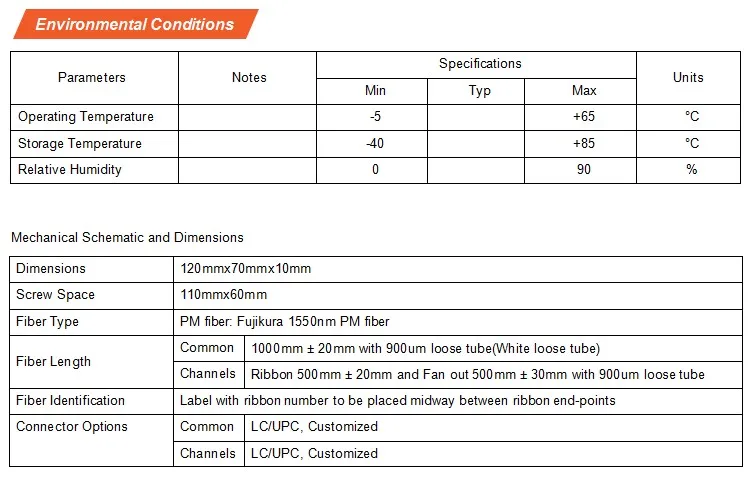

More details, Welcome to contact Ivy.
Related Product:
DWDM/CWDM 4/8/16/18ch/Customized channel MUX DEMUX, Passive Compact CCWDM 4/8/16/18ch MUX-DEMUX, AWG 40/48ch MUX DEMUX, Dual/Single fiber is available)
Due the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX package and 19" 1U rack mount.
