Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network ) thumbnail-1
Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network ) photo-1
US$ 500 - 680 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
HTFuture
Place of Origin:
China
Model Number:
DWDM HT6000-ODU/OMU16
Contact Supplier Request Quote Chat Now
Shenzhen HTFuture Co. Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HTFuture
Place of Origin China
Model Number DWDM HT6000-ODU/OMU16


Product Description

16 Channel  Single Fiber 100 GHz DWDM Passive Multiplexer and Demultiplexer

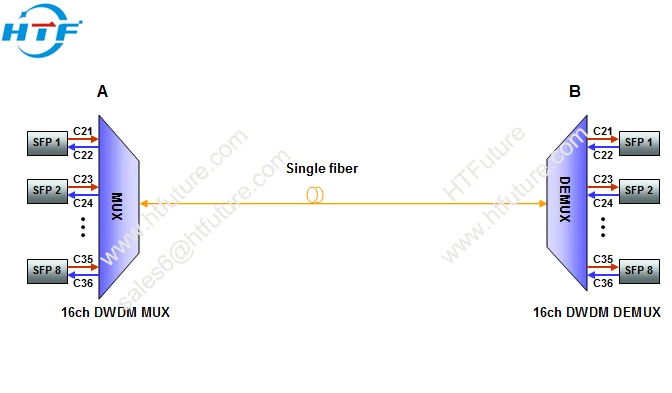

The 16 channels DWDM passive MUX and DEMUX modules deliver the benefits of a Dense Wave Division Multiplexer in a fully passive solution. With matching MUX and DEMUX units placed at each end of an optical link, up to 8 data channels can be combined and transmitted over a single-mode fiber trunk.



Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )



The HT6000-ODM16 is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers.


The HT6000-ODM16 may be used as a standalone tabletop device or mounted in 1-unit space of a 19” data rack It can achieve bi-directional 8CH data multiplex and demultiplex.


The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.



Features

(1) 16 Channels 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX & DEMUX)
(2) Standalone compact form factor-1U, Installation friendly
(3) Plug’n play: requires no configuration
(4) Green product: completely passive, needs no power and no cooling
(5) Low insertion loss, insertion loss ≤4dB,
(6) High channel isolation:adjacent isolation ≥25dB; non-adjacent isolation ≥40dB
(7) Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from Htfuture and other third parties
(8) High reliability, MTBF of 100 years
(9) Designed for Telcordia / Bellcore GR-120



Applications

(1) DWDM transmission
(2) Metro and long-haul networks
(3) Point-to-point DWDM fiber optimization
(4) Linear add/drop DWDM fiber optimization



Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )



Specifications



Parameter

4 Channel

8 Channel

16 Channel

MUX

DEMUX

MUX

DEMUX

MUX

DEMUX

Channel Wavelength (nm)

ITU 100GHz Grid

Center wavelength Accuracy (nm)

±0.1

Channel Spacing (nm)

0.8nm (100GHz)

Channel Passband (@-0.5dB bandwidth (nm)

>0.25

Insertion Loss (dB)

≤1.8

≤3.0

≤4

Channel Uniformity (dB)

≤0.6

≤1.0

≤1.5

Channel Ripple (dB)

0.3

Isolation (dB)

Adjacent

N/A

>30

N/A

>30

N/A

>30

Non-adjacent

N/A

>40

N/A

>40

N/A

>40

Inertion Loss Temperature Sensitivity (dB/℃)

Wavelength Temperature Shifting (nm/℃)

Polarization Dependent Loss (dB)

Polarization Mode Dispersion

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

300



Company Information

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )



Product Range

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )





Certifications

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )



Packaging & Shipping

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )



FAQ

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )

Contact HTFuture

Single Fiber 16 Channel DWDM Mux Demux for ODN ( Optical Distribution Network )


More details, Welcome to contact Ivy.


Related Product:

DWDM/CWDM 4/8/16/18ch/Customized channel MUX DEMUX, Passive Compact CCWDM 4/8/16/18ch MUX-DEMUX, AWG 40/48ch MUX DEMUX, Dual/Single fiber is available)


Due the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX package and 19" 1U rack mount.
