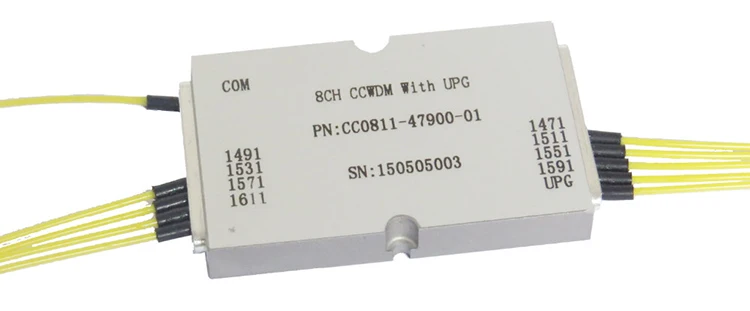

Compact size High channel isolation 8 channel CCWDM MUX DEMUX
Compact Coarse Wavelength Division Multiplexer (CCWDM MUX DEMUX) can solve the shortage of fiber resources and transparent transmission of business, and reduce the cost of network Construction. With low-cost and compact dimension, it is mainly used in metropolitan area network and access layer, also be used to build networks.
Features:
Compact size
Low insertion loss
Low PDL
High channel isolation
Excellent environmental reliability
Epoxy-Free Optical Path
Applications:
Broadband Systems
Optical Add/Drop Multiplexing
Metro/Access Communication Networks
Fiber Optic Instruments
Optical Specifications
Parameter | 8 Channel | |
Center Wavelength (nm) | 1270~1610/1271 ~1611nm any 8CH | |
Channel Passband (nm) | CW±6.5 | |
Insertion Loss (dB) | ≤2.0 | |
Isolation (dB) | Adjacent | ≥30 |
Non-adjacent | ≥40 | |
Polarization Dependent Loss (dB) | <0.2 | |
Polarization Mode Dispersion (ps) | <0.2 | |
Directivity (dB) | ≥50 | |
Return Loss (dB) | ≥45 | |
Maximum Power Handling (mW) | 500 | |
Operating Temperature (℃) | -10~+70 | |
Storage Temperature (℃) | -40~+85 | |

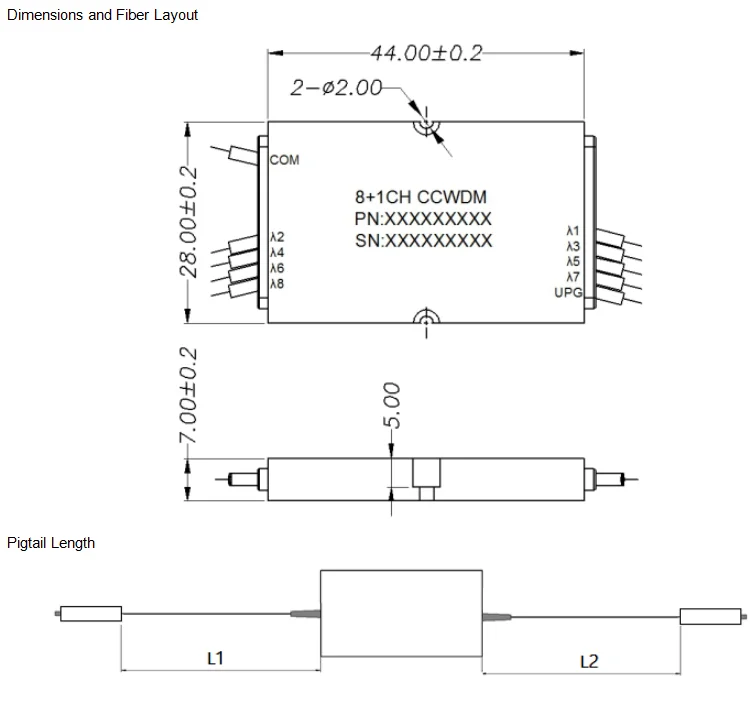

Package Dimension (mm) | L44xW28xH6 | |
More details, Welcome to contact Ivy.
Related Product:
DWDM/CWDM 4/8/16/18ch/Customized channel MUX DEMUX, Passive Compact CCWDM 4/8/16/18ch MUX-DEMUX, AWG 40/48ch MUX DEMUX, Dual/Single fiber is available)
Due the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX package and 19" 1U rack mount.
