16 Channel 100 GHz DWDM Passive Multiplexer and Demultiplexer

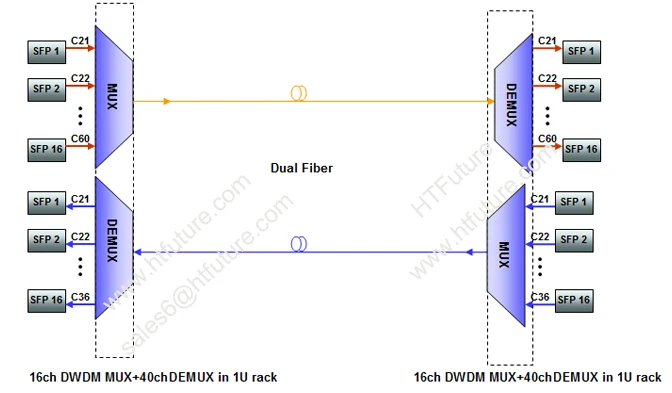

The 16 channels DWDM passive MUX and DEMUX modules deliver the benefits of a Dense Wave Division Multiplexer in a fully passive solution. With matching MUX and DEMUX units placed at each end of an optical link, up to 16 data channels can be combined and transmitted over a single-mode fiber trunk.
The HT6000-ODM16 is ideal for increasing the fiber capacity between two sites without the need for installing or leasing additional fibers.

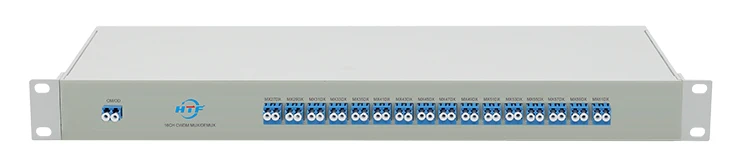

The HT6000-ODM16 may be used as a standalone tabletop device or mounted in 1-unit space of a 19” data rack It can achieve bi-directional 16CH data multiplex and demultiplex.
The complete passive solution requires no power cabling and no configuration; it is a true plug and play solution.
Features
(1) 16 Channels 100 GHz DWDM combined Multiplexer and Demultiplexer (MUX & DEMUX)
(2) Standalone compact form factor-1U, Installation friendly
(3) Plug’n play: requires no configuration
(4) Green product: completely passive, needs no power and no cooling
(5) Low insertion loss, insertion loss ≤4dB,
(6) High channel isolation:adjacent isolation ≥25dB; non-adjacent isolation ≥40dB
(7) Compatible with 100GHz ITU Grid DWDM active transponders and transceivers from Htfuture and other third parties
(8) High reliability, MTBF of 100 years
(9) Designed for Telcordia / Bellcore GR-120
Applications
(1) DWDM transmission
(2) Metro and long-haul networks
(3) Point-to-point DWDM fiber optimization
(4) Linear add/drop DWDM fiber optimization
Specifications
Parameter |
4 Channel |
8 Channel |
16 Channel |
||||||
MUX |
DEMUX |
MUX |
DEMUX |
MUX |
DEMUX |
||||
Channel Wavelength (nm) |
ITU 100GHz Grid |
||||||||
Center wavelength Accuracy (nm) |
±0.1 |
||||||||
Channel Spacing (nm) |
0.8nm (100GHz) |
||||||||
Channel Passband (@-0.5dB bandwidth (nm) |
>0.25 |
||||||||
Insertion Loss (dB) |
≤1.8 |
≤3.0 |
≤4 |
||||||
Channel Uniformity (dB) |
≤0.6 |
≤1.0 |
≤1.5 |
||||||
Channel Ripple (dB) |
0.3 |
||||||||
Isolation (dB) |
Adjacent |
N/A |
>30 |
N/A |
>30 |
N/A |
>30 |
||
Non-adjacent |
N/A |
>40 |
N/A |
>40 |
N/A |
>40 |
|||
Inertion Loss Temperature Sensitivity (dB/℃) |
|||||||||
Wavelength Temperature Shifting (nm/℃) |
|||||||||
Polarization Dependent Loss (dB) |
|||||||||
Polarization Mode Dispersion |
|||||||||
Directivity (dB) |
>50 |
||||||||
Return Loss (dB) |
>45 |
||||||||
Maximum Power Handling (mW) |
300 |
||||||||
More details, Welcome to contact Ivy.
Related Product:
DWDM/CWDM 4/8/16/18ch/Customized channel MUX DEMUX, Passive Compact CCWDM 4/8/16/18ch MUX-DEMUX, AWG 40/48ch MUX DEMUX, Dual/Single fiber is available)
Due the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX package and 19" 1U rack mount.
