8000Rpm Spindle Speed Siemens GSK Fanuc Mitsubishi CNC Machining Center Metal Parts Milling Machine For Sale
Suitable for milling, boring, solid boring, reaming and tapping of spare parts
Can be used for continuous milling processing of model
Nice performance ration makes being widely used for aerospace, aviation, ordnance, automobile, motorcycle, nuclear industry and IT industry
8000Rpm Spindle Speed Siemens GSK Fanuc Mitsubishi CNC Machining Center Metal Parts Milling Machine For Sale

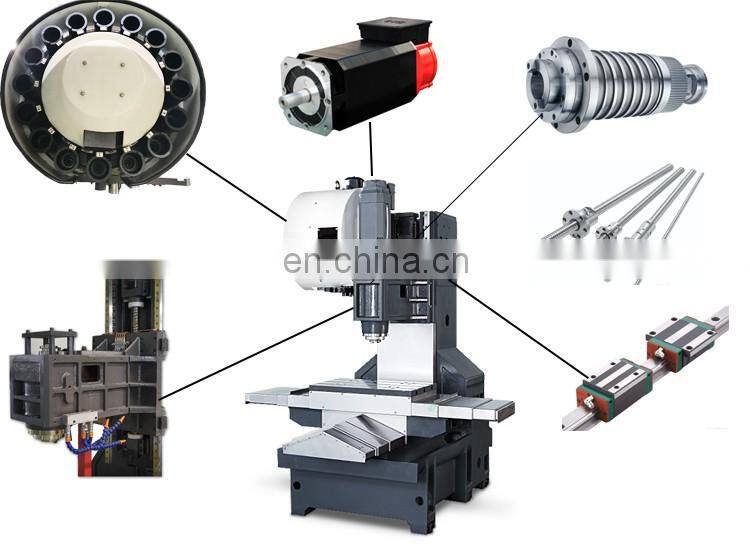

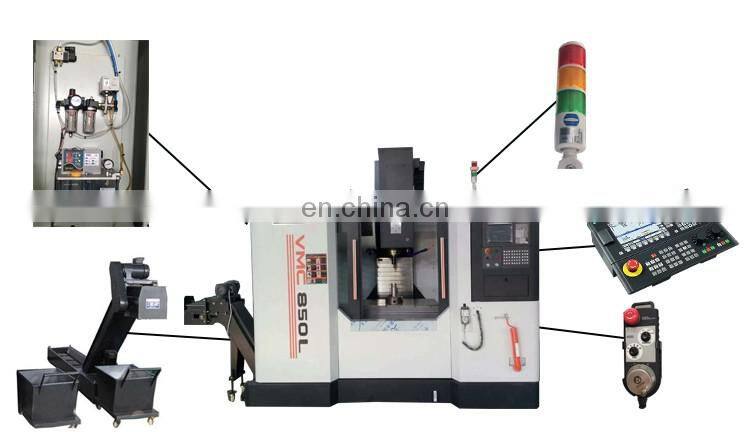

Standard Configurations:
---Casting body HRC 300+
---Taiwan AIMACH tool magazine--16/24/30 tools ATC type
---Taiwan Hiwin/PMI linear guideway and ball screw
---Taiwan Kenturn/CELLS/POSA/Royal spindle
---Schneider electric parts

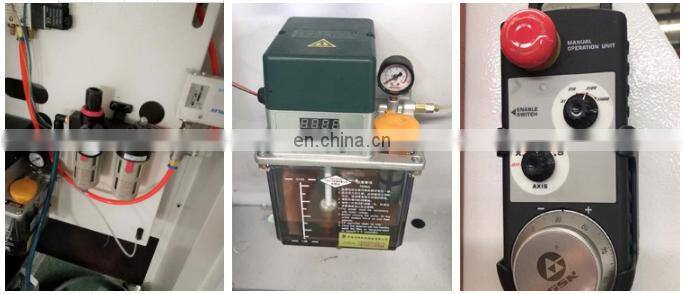

---Automatic lubrication system
---Heat exchanger
Optional Configurations:
---CTS coolant through spindle
---Taiwan GAS 4th/5th axis
---Chip conveyor
---Without tool magazine
---Coldstar air conditioner
Specifications:
Specifications:
| Item | Unit | VMC350L | VMC460L | VMC600L | VMC850L | VMC1060L | VMC1160L | VMC1270L | VMC1380L | VMC1580L |
| Worktable size | mm | 690*230 | 800*300 | 800*360 | 100*500 | 1200*600 | 1200*600 | 1360*700 | 1400*800 | 1700*800 |
| Load capacity | kg | 150kg | 200 | 350 | 500 | 800 | 800 | 800 | 1000 | 1500 |
| T slot | 3-16*63 | 3-14*80 | 3-14*115 | 5-18*90 | 5-18*90 | 5-18*100 | 5-18*122 | 5-18*140 | 5-22*135 | |
| X axis travel | mm | 350 | 460 | 600 | 800 | 1000 | 1100 | 1200 | 1300 | 1500 |
| Y axis travel | mm | 260 | 320 | 400 | 500 | 600 | 600 | 700 | 800 | 800 |
| Z axis travel | mm | 350 | 460 | 500 | 500 | 600 | 600 | 600 | 700 | 700 |
| Distance from spindle nose to table | mm | 90-440 | 90-550 | 100-600 | 150-650 | 120-720 | 120-720 | 87-687 | 15-850 | 13-830 |
| Distance from spindle center to column slide way | mm | 294 | 395 | 430 | 550 | 650 | 650 | 785 | 855 | 810 |
| Tool shank | BT30 | BT30/40 | BT40 | BT40 | BT40 | BT40 | BT40/BT50 | BT40/BT50 | BT40/BT50 | |
| Spindle speed | rpm | 10000 | 10000 | 10000 | 8000 | 8000 | 8000 | 6000/8000 | 6000/8000 | 6000 |
| Spindle motor power | KW | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 11 | 8 | 8 | 15 |
| Rapid moving speed | m/min | 10 | 10 | 10 | 48 | 36 | 36 | 24/24/18 | 30/30/30 | 16/16/20 |
| Feed rate | 1-4000 | 1-4000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 20-6000 | 1-10000 | 20-5000 | |
| Positioning accuracy | mm | 0.02 | 0.012 | 0.01 | 0.008 | 0.01 | 0.01 | 0.01 | 0.01 | 0.012 |
| Repeated positioning accuracy | mm | 0.01/300 | 0.007 | 0.007 | 0.002/300 | 0.003 | 0.005 | 0.005 | 0.005 | 0.006 |
| Machine weight | kg | 1500 | 2500 | 3500 | 5500 | 6500 | 7000 | 8000 | 12000 | 13000 |
| Machine size | m | 1.5*1.3*1.8 | 1.9*1.8*1.9 | 2.2*2.1*2.2 | 2.6*2.2*2.6 | 3*2.5*2.9 | 3.2*2.5*3.2 | 3.3*2.8*3.2 | 3.4*3.1*3.6 | 4.5*3.2*3.6 |

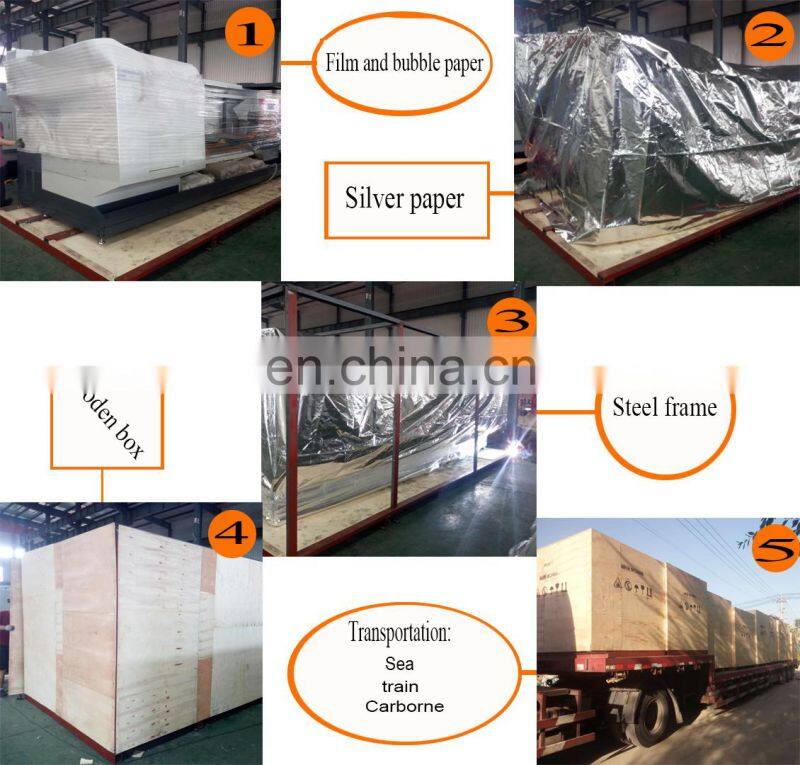

Standard packaging: wooden case,steel frame,bubble wrap and so on
Delivery: rail way ,bus,shipping and so on
Shandong HUNK Precision Machinery Co., LTD. is a high tech enterprise and also an exporter, integrated with manufacturing, processing and sales of machine tools, which has more than 10 years experience in machine tools production. As the strategic partner of Jinan First Machine Tool Co., Ltd, we have mastered the advanced machine tool technology and dedicated to customers domestic and abroad and made an excellent achievement.

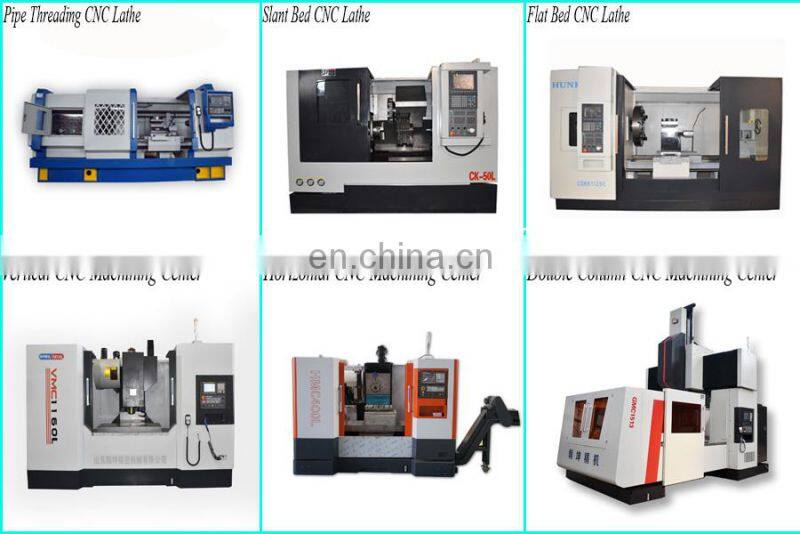

Other related products
Exhibition
24-online free service
12 warranty
All-life technical support
Kindly pre-sale and after-sale consult service
Factory visiting
others......
Certificates;
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 6hrs in working day.
Q3.Where is your factory located? How can I visit there?
Our factory is located in South Development zone, Tai An City, Shan Dong Province, China. There has flight from Jinan need 1.5 hours, or High speed train directly to our city. Welcome to visit our factory.
Q4.Delivery time
Machines order takes 20 days after deposit payment received. Please inquiry sales.
Q5.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q6.Payment term
30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.
Q7.Can I trust you?
Sure, we’re Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q8.How long is the warranty for machines?
Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your YZ CNC sales representative for details.
Q9.How' s your after-sale service?
Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q10.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
