VMC350L Mini Milling Machine

Name: VMC350L Mini Milling Machine
Availability: InStock

FOB Price

US$ 21,500 - 22,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Technical parameter

Item	unit	VMC350
Table size	mm	390*230
Load capacity	kg	150
T slot		3-16-63
X axis travel	mm	350
Y axis travel	mm	260
Z axis travel	mm	350
Distance from spindle center to table	mm	99-440
Distance from spindle center to columnslide way	mm	294
Tool shank		BT30
Spindle speed	RPM	10000
Spindle motor power	KW	2.2/3.7
MAX.diameter of tool	mm	30/80
MAX,length of tool	mm	120
MAX.weight of tool	kg	3
X/Y-axis rapid moving speed	mm	10000
Z axis rapid moving speed	mm	10000
Feed rate	mm/min	1-4000
Positioning accuracy	mm	0.02
Repeated positioning accuracy	mm	0.01/300
Out dimension	mm	180016502160
Weight	kg	1800

Main components

NO	ITEM	Model Number	Place of origin	Quentity	Remarks
1	Spindle	BT40(socketφ120)	Taiwan	1set
2	Boosting unclamping cylinder	3.5T	Xieqing (Wuxi)	1set
3	Bamboo hat type knife managine	BT40-16T	Taiwan	1set	Standard
4	Disc cutter	BT40-16T or 20T	Taiwan	1set	Optional
5	X ball screw	3210/P3	Domestic	1 pair	Taiwan Optional
6	Y ball screw	3210 /P3	Domestic	1 pair	Taiwan Optional
7	Z ball screw	3210/P3	Domestic	1 pair	Taiwan Optional
8	Special bearing		NSK or FAG	6 pairs
9	Double disc coupling		Domestic	3
10	Cooling pump		Taiwan	1
11	Lubrication system	Single track damping type	Nanjing	1 set
12	Pneumatic system	AirTAC	SMC	1 set

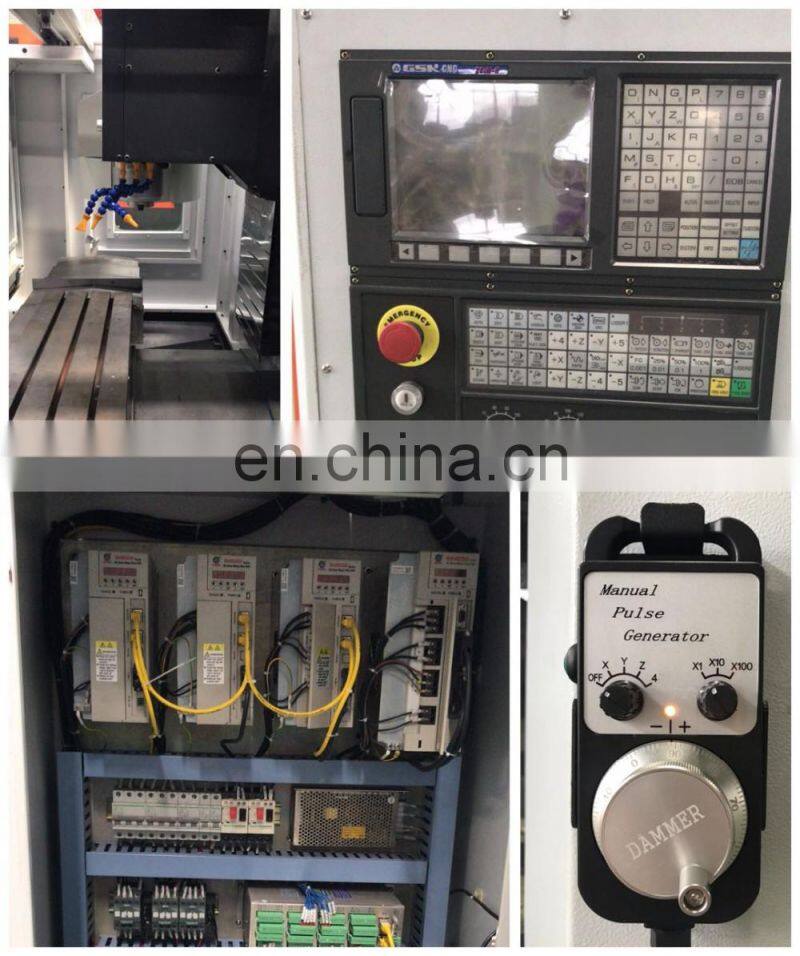

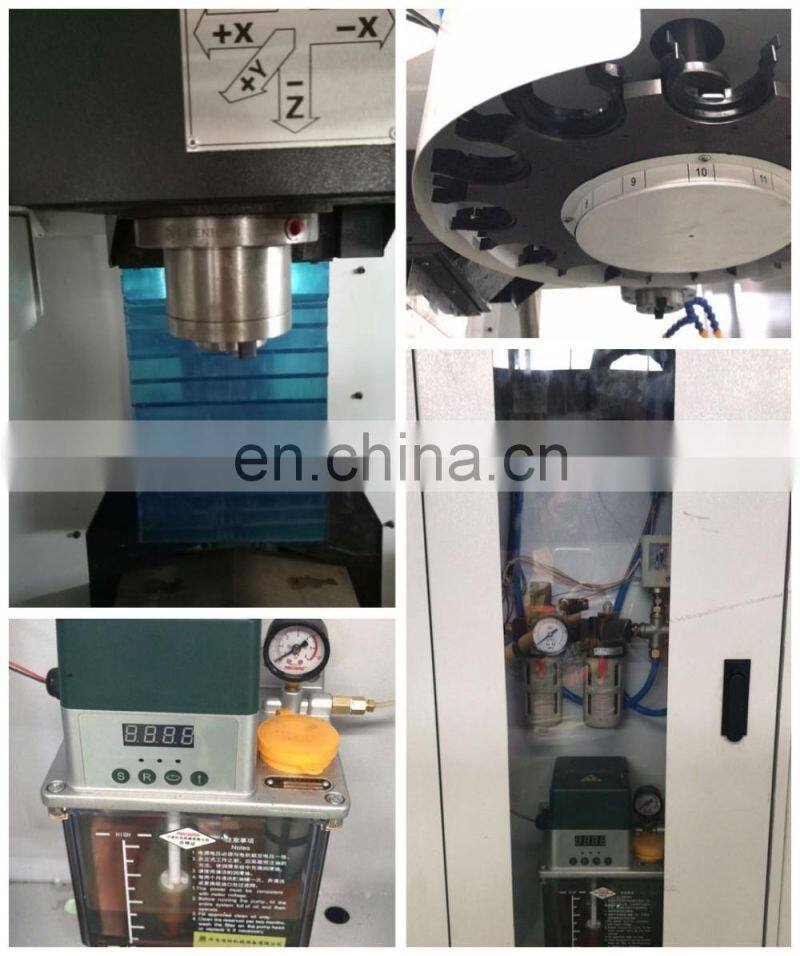

Detailed Image
