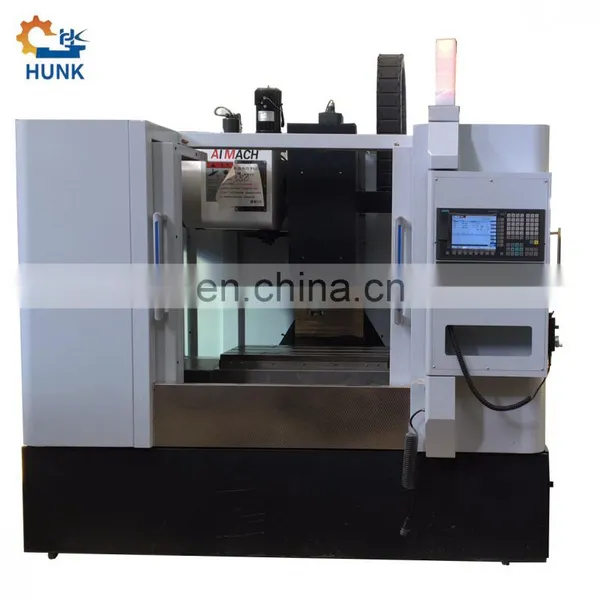

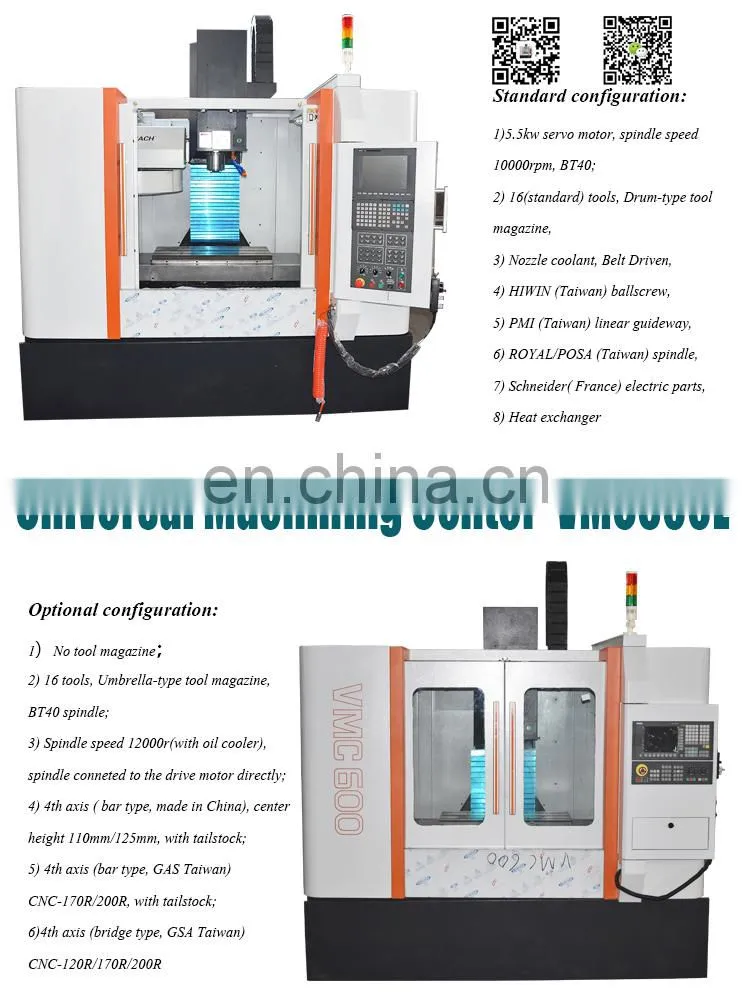

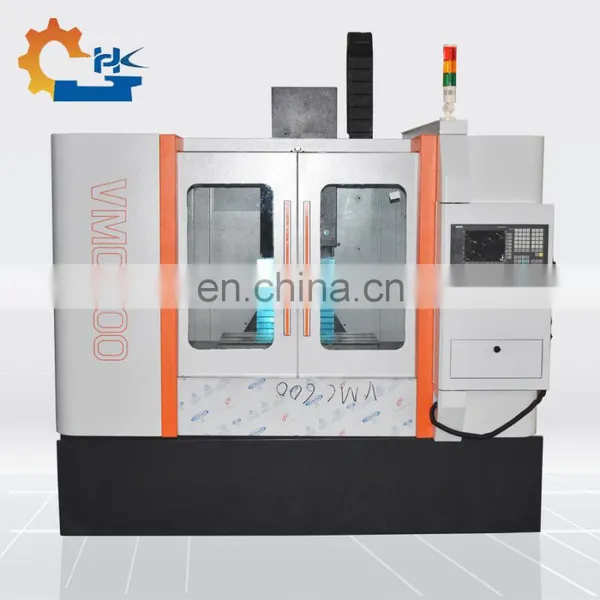

CNC milling machine VMC600L
UNIT |
VMC600L |
|
Table size |
mm |
800*360 |
Load capacity |
kg |
350 |
T slot |
|
3-14*115 |
X-axis travel |
mm |
600 |
Y-axis travel |
mm |
400 |
Z-axis travel |
mm |
500 |
Distance from Spindle center to table |
mm |
100-600 |
Distance from Spindle center to column slide way |
mm |
430 |
Tool shank |
|
BT40 |
Spindle speed |
rpm |
10000 |
Spindle motor power |
kw |
5.5 |
Max. diameter of tool |
mm |
120*200 |
Max. length of tool |
mm |
350 |
Max. weight of tool |
kg |
8 |
X/Y -axis rapid moving speed |
mm |
10000 |
Z-axis rapid moving speed |
mm |
10000 |
feed rate |
mm/min |
1-4000 |
positioning accuracy |
mm |
0.01 |
repeated positioning accuracy |
mm |
0.007 |
Out dimension |
mm |
2200*2100*2200 |
Machine weight |
Kg |
3500 |
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
2. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
3. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
4. Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
5. Q: What sales terms do you have?
A: T/T, L/C,West Union.
6. Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
7. Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
8. Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
9. Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
10. Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
11. Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
