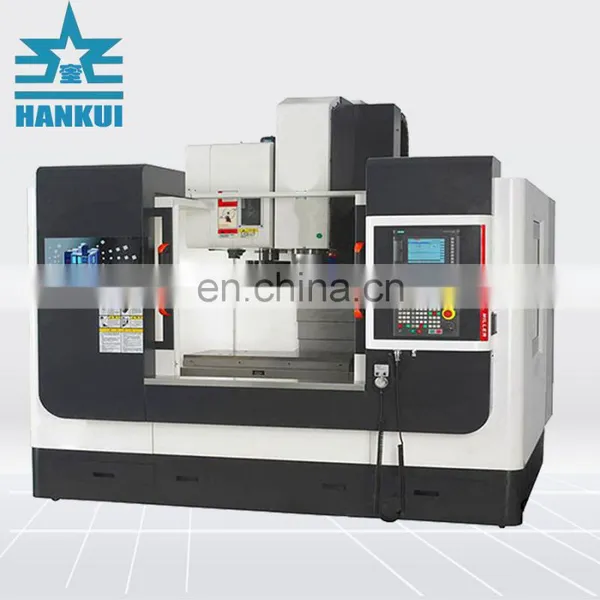

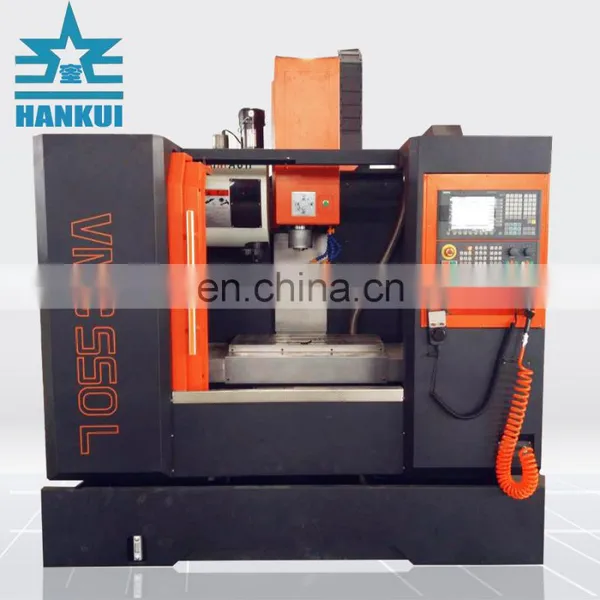

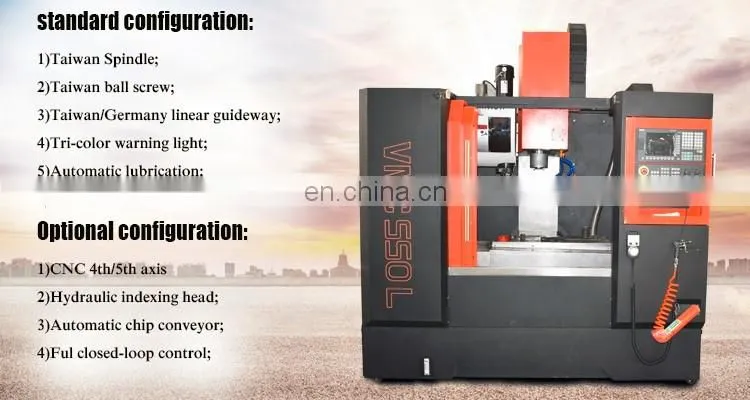

VMC550L Professional Vertical CNC Milling Machine Price

FOB Price

USD $19,000 - $29,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao Port for VMC550L Professional Vertical CNC Milling Machine Price
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HUNK	Place of Origin	Shandong, China
Model Number	VMC550L	Type	Vertical
Certification	ISO9001 CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	13 Months	Weight	2300kg
Dimension(LWH)	210020502100mm	Voltage	380V/50Hz
Condition	New	Power(W)	5.5kw

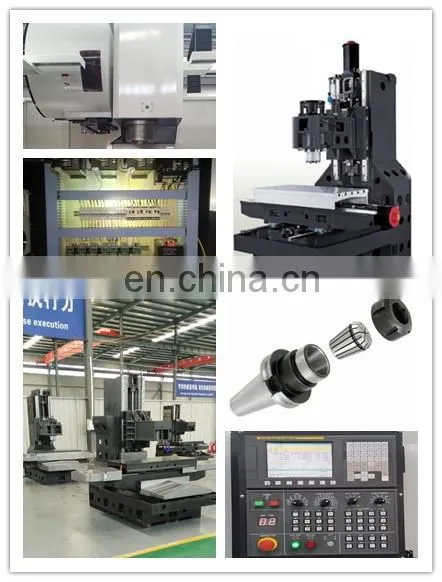

Product Description

⑴ Base, sliding block, working bench, vertical column, spindle box and other main basic parts adopt HT250 cast iron.

⑵The guide rail of X, Z, Y axis are plastic rectangular guide, fast speed, eliminate intermittent creep, high rigidity, low friction, low noise, low temperature rise.

⑶ Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable.

⑷The feed of X, Y, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.

⑸The spindle unit is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.

⑹Guide rail and ball screw of X, Y, Z direction are all use protection device to ensure that the screw and the guide is clean and accurate.

⑺The machine tool external protection of machine tool uses the full protection structure. It is convenient operation, safe and reliable, and nice shape.

Item	Unit	VMC550L
Table Size	mm	800×320
Load Capacity	kg	300
T Slot		14*3
X-axis Travel	mm	550
Y-axis Travel	mm	340
Z-axis Travel	mm	460
Distance from Spindle Center to Table	mm	100-560
Distance from Spindle Center to Column Slide Way	mm	410
Tool Shank		BT40
Spindle Speed	rpm	8000
Spindle Motor Power	kw	5.5
Max. Diameter of Tool	mm	φ80/φ150
Max. Length of Tool	mm	300
Max. Weight of Tool	kg	6
X/Y -axis Rapid Moving Speed	mm	20000
Z-axis Rapid Moving Speed	mm	20000
Feed Rate	mm/min	1-10000
Positioning Accuracy	mm	±0.01
Repeated Positioning Accuracy	mm	±0.004/300
Out Dimension	mm	2100×2050×2100
Machine Weight	kg	2300

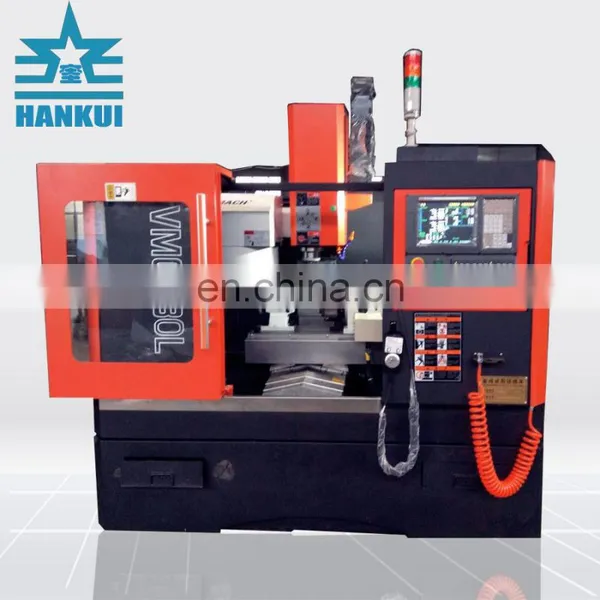

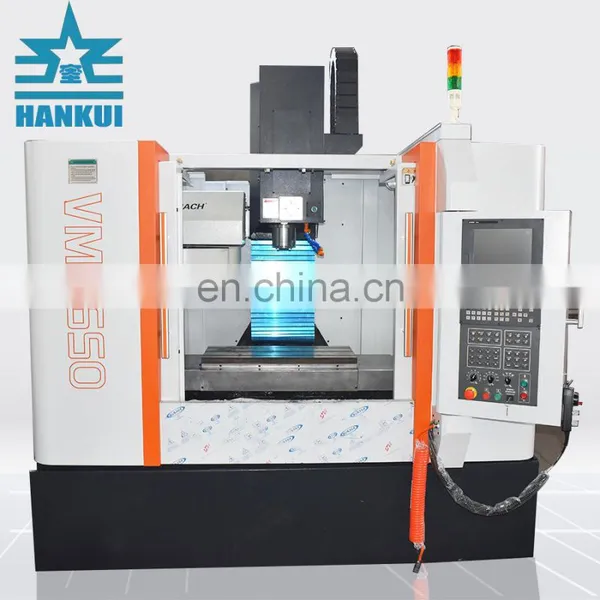

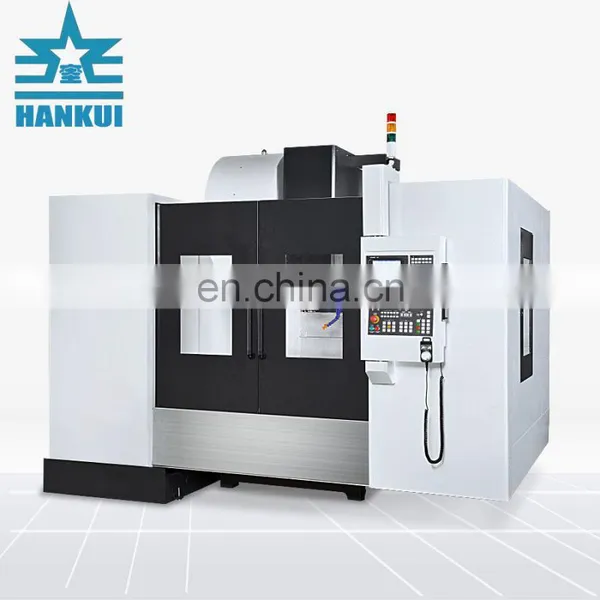

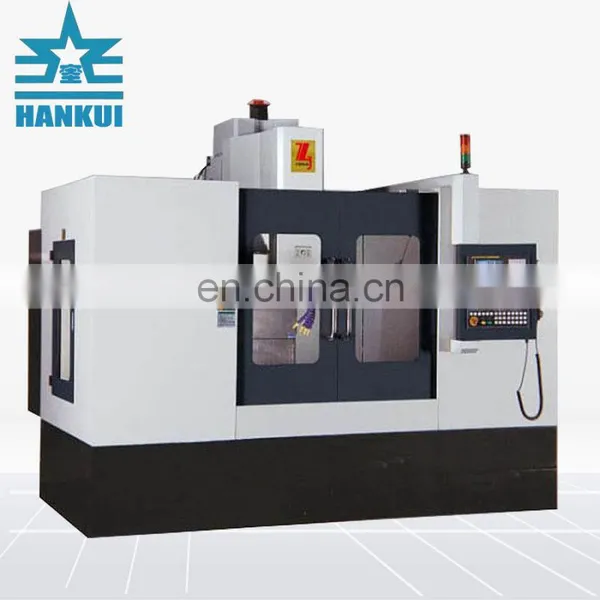

Products Show

Customers Show

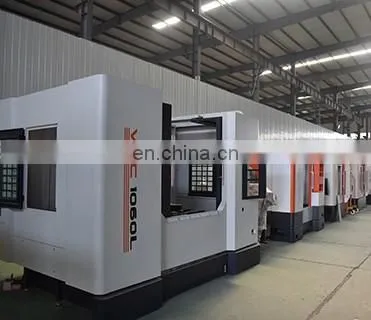

Our Company

Testing & Delivery

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Normally 10 days if the goods are in stock or 30-45 days if the goods are not in stock.

Q: What is your terms of payment?

A: 30% T/T in advance, balance before shipment or irrevocable 100% L/C at sight.
