3 Axis 4 Axis 5 Axis CNC Milling Cutting Drilling Vertical Machining Center

FOB Price

USD $19,500 - $35,900 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao Port for 3 Axis 4 Axis 5 Axis CNC Milling Cutting Drilling Vertical Machining Center
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	HUNK	Place of Origin:	Shandong, China	Type:	Vertical
Certification:	ISO9001 CE	Warranty:	13 Months
Weight:	5500kg	Dimension(LWH):	270024002600mm	Voltage:	380V/50Hz
Condition:	New	Power(W):	7.5kw

Product Description

Application

It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.

Product Description

Parameter

Item	Unit	VMC350	VMC460	VMC600	VMC850
Table size	mm	690*230	800*300	800*360	1000*500
Load capacity	kg	150	200	350	500
T slot		3-16-63	3-14*80	3-14*115	5-18*90
X axis travel	mm	350	460	600	800
Y axis travel	mm	260	320	400	500
Z axis travel	mm	350	460	500	500
Distance from spindle center to table	mm	90-440	90-550	100-600	150-650
Distance from spindle center to column slideway	mm	294	395	430	550
Tool shank		BT30	BT30/BT40	BT40	BT40
Spindle speed	rpm	10000	10000	10000	8000
Spindle motor Power	kw	2.2/3.7	3.7	5.5	7.5
Max Length of tool	mm	120	200	350	250
Max weight of tool	kg	3	6	8	8
X/Y axis rapid moving speed	mm/min	20000	20000	20000	48000
Z axis rapid moving speed	mm/min	20000	20000	20000	48000
Position accuracy	mm	0.02	0.02	0.015	0.008
Reposition accuracy	mm	0.01/300	0.007	0.0075	0.002
Dimension	mm	152013001800	180017502000	220021002200	270024002600
Weight	kg	1200	1900	2600	5500

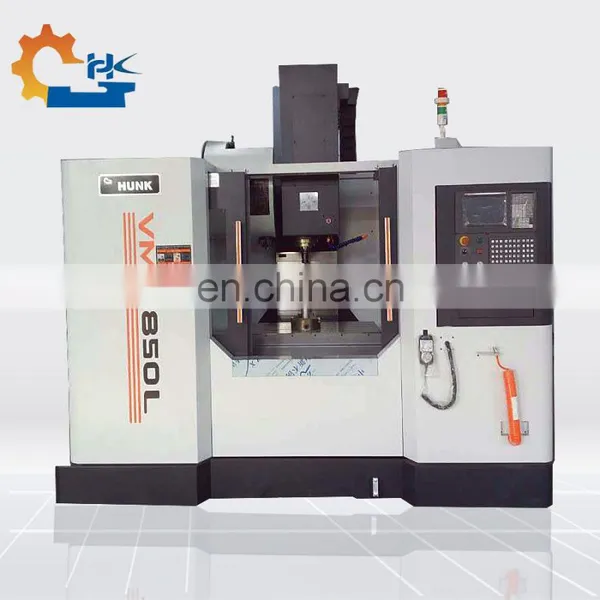

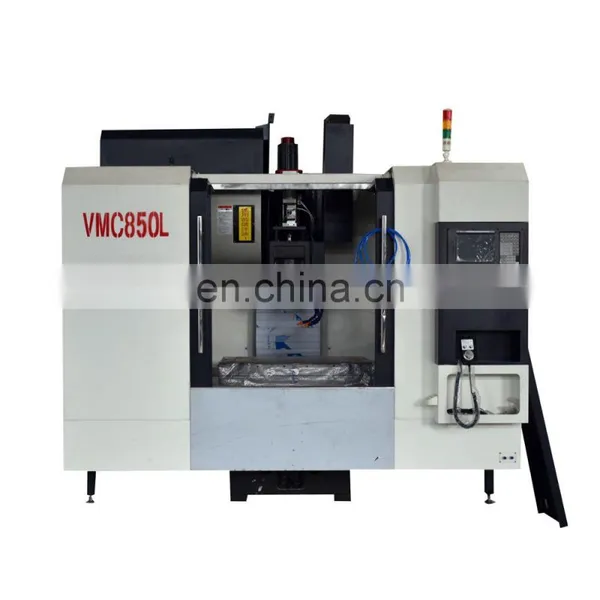

Products pictures

Packing & Delivery

Packing dimension(LxWxH):2950mmX2300mmX2520mm

Contact Me

FAQ

Q:Do you have after sales support?
A: Yes for Sure.
1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.

Q: How can I choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you.

Q: Are you factory?
A: Yes, we are. Supply to you product with high configuration and perfect service at competitive price.
