Help CenterTPX6113 Hydraulic Horizontal Boring Milling Machine
Related Products
-
TPX6113A Dro Horizontal Boring Machine/horizontal Borer for SaleUS$ 30,000 - 150,000MOQ: 1 Set -
TPX6111A/2 Horizontal Boring Machine/table Type Horizontal Boring MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
TPX6111 Horizontal Borer/horizontal Boring MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
TK6516 Planer Cnc Horizontal Boring Machine/cnc Horizontal BorerUS$ 100,000 - 5,000,000MOQ: 1 Set
-
TPX6213 Floor Type Horizontal Boring Machine With DroUS$ 50,000 - 300,000MOQ: 1 Set

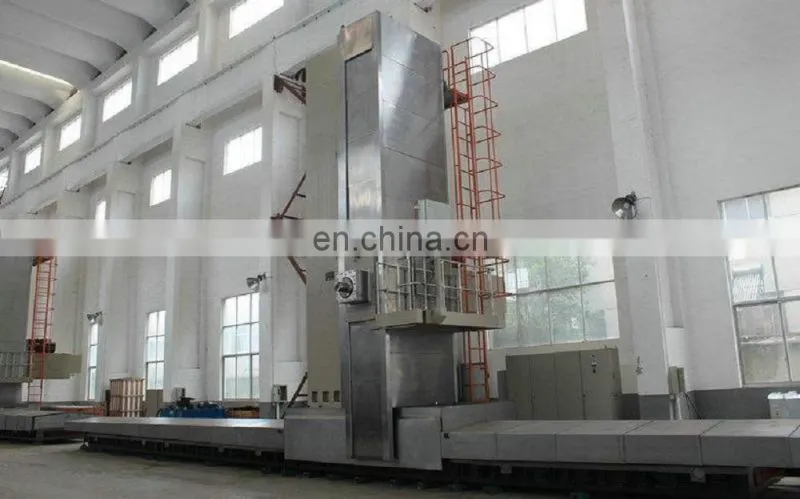

TPX6113 horizontal boring and milling machine
TPX6111A(Ø110mm) DRO Horizontal Boring Machine
TPX6216(Ø160mm) DRO Floor-type Horizontal Boring Machine
Such horizontal boring and milling machine has following features:
TPX6113 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes. The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type parts.
Specifications |
Unit |
Parameter |
Spindle bore diameter |
mm |
Φ130 |
Spindle taper |
mm |
80 |
Max, spindle torque |
Nm |
3136 |
Max. spindle axial thrust |
N |
31360 |
Steps of spindle speed |
|
24 |
Range of spindle speed |
r/min |
4~800 |
Power of main motor |
kW |
15 |
Max. facing head torque |
Nm |
4900 |
Facing head diameter |
mm |
Φ750 |
Range of facing head speed |
r/min |
2.5~125 |
Speed step of facing head speed |
|
18 |
Table size |
mm |
1600 x1400 |
Max. permissible load on table |
kg |
8500 |
T- slot |
mm |
28 |
Number of T-slot |
|
10 |
X- axis travel |
mm |
1600 |
Y - axis travel |
mm |
1500 |
Z - axis travel |
mm |
1500 |
W- axis travel (Spindle travel) |
mm |
900 |
U - axis travel (facing head spindle travel) |
|
250 |
B - axis work table rotary |
|
360 |
Min. distance between spindle center and table surface |
mm |
0 |
Rapid travel (X/Y/Z/W) |
mm/min |
2500 |
Range of feed per spindle revolution (X/Y/Z/W) |
mm/rev |
0.05~8/0.01~2 |
Linear measurement accuracy |
mm |
0.005 |
B - axis measurement accuracy |
|
0.001 |
Overall dimensions (L*W*H) |
mm |
6995x3730x3535 |
Weight of machine |
kg |
24500 |
S.N |
Name |
Remark |
1 |
Rear column |
1 Set |
2 |
Face heading plate |
1 Set |
5 |
Operation tools |
1 Set |
6 |
Automatic centralized lubrication system |
1 Set |
7 |
Work light |
1 Set |
8 |
Documents in English |
1 Set |
Pls send inquiry to me for optioanl accessories and other further information about horizontal boring milling machine.
