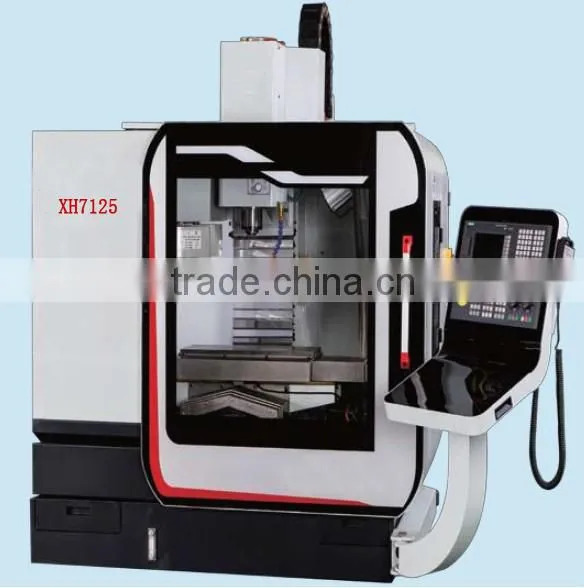

XH7125 High Speed Vertical CNC Machining Center centro de mecanizado
Specifications
Item | Unit | XH7125 |
Table travel(X,Y,Z) | mm | 400×250×400 |
Table size | mm | 600×250 |
Number/Width/Distance of T-slot | mm | 3-14-75 |
Distance from spindle nose to table surface | mm | 60~460 |
Distance from spindle axis to column guideway | mm | 325 |
Taper of spindle |
| BT30 |
Spindle speed range | r/min | 60~6000 |
Spindle motor power | kw | AC servo 3.7 |
Rapid traverse speed(X,Y,Z) | m/min | 6 |
Cutting feed speed(X,Y,Z) | mm/min | 2.5~3000 |
Tool magazine capability | qty | 10 |
Max.dimension of tool | mm | φ92 |
Max.weight of tool | kg | 5 |
Positioning accuracy | mm | ±0.015 |
Repeat positioning accuracy | mm | ±0.075 |
L×W×H | mm | 1650×1600×2000 |
Net weight | kg | 1530 |
Main configuration
Standard:
CNC system: SIEMENS 808D.
Spindle: Taiwanhigh speed(6000rpm),precision spindle unit.
Tool magazine: Taiwan famous brand turret-type tool magazine 10 tools.
Ball screw: Taiwan's precision ball screw.
protection: full outer stainless steel inner defense and protection.
Optional:
KND-1000Ⅱ,Siemens 828D.
CNC fourth axis.
Automatic chip removal system.
