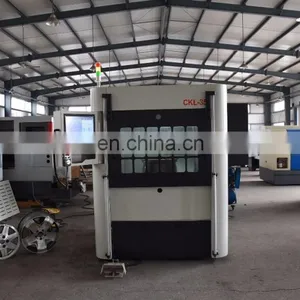

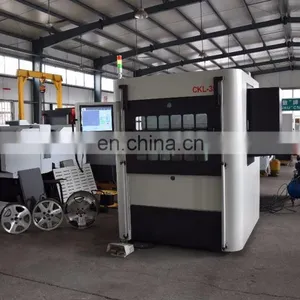

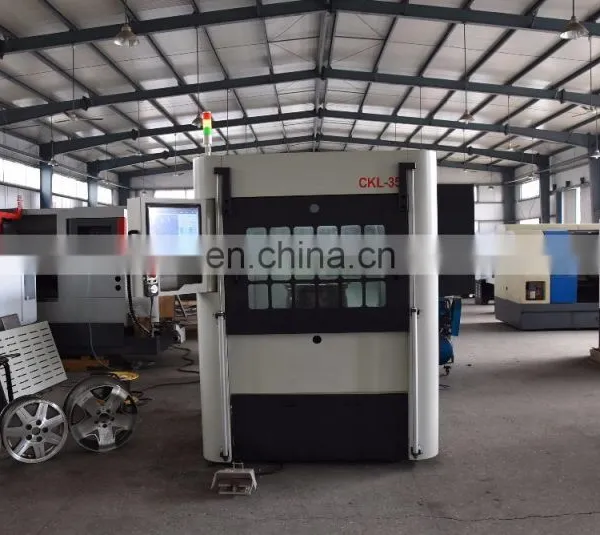

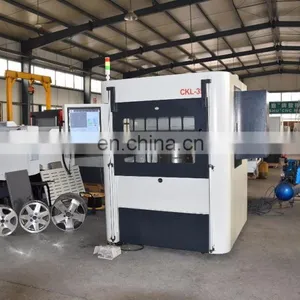

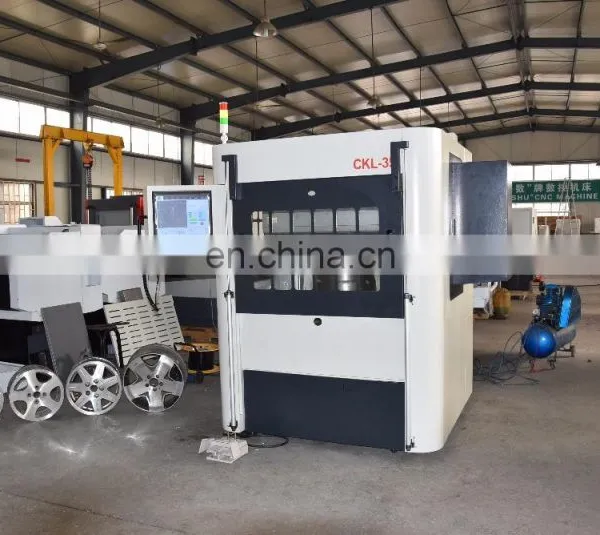

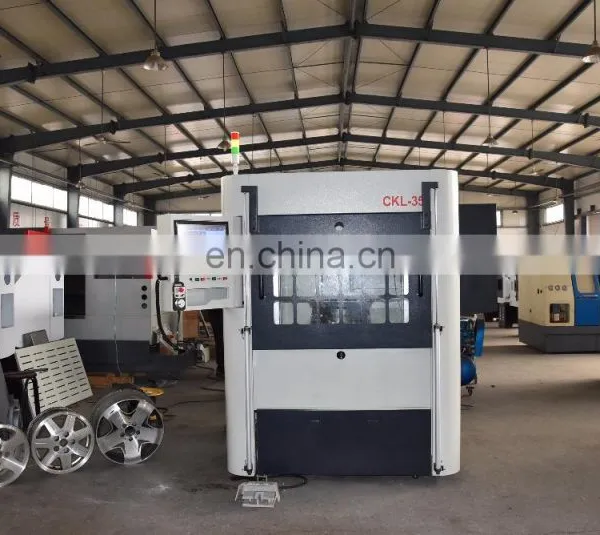

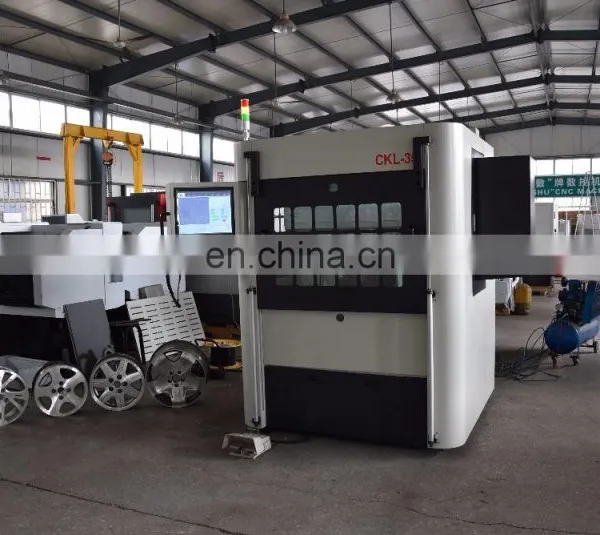

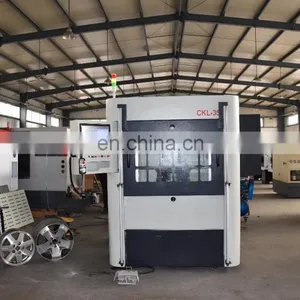

High Efficiency Vertical CNC Wheel Repair Lathe CKL-35
Vertical CNC Wheel Repair Lathe CKL-35 Description
Wheel Repair Lathe CKL-35 newly designed and manufactured by HAISHU Machinery is the professional and specific CNC machine to repair and maintain alloy car wheels. Our vertical wheel repair lathe CKL-35 is made of fully cast iron lathe bed, self developed specific wheel repair software with teaching and curve automatic generation function, non-contact laser measurement or probe contact measurement an LCD touch screen.The max wheel processing diameter is up to 35 “. The CNC wheel repair machine features professionalism, high quality, cost effective and high automation.
Vertical CNC Wheel Repair Lathe CKL-35 Specifications
NO. |
Item |
Unit |
Technical Parameters |
CKL-35 | |||
1 |
Max. turning diameter |
mm |
1000 |
2 |
Max. machining wheel diameter |
mm |
900(35") |
3 |
Chuck maximum clamping diameter |
mm |
920 |
4 |
Spindle speed (frequency conversion) |
rpm |
50-1200 |
5 |
Cutting feed rate |
mm/min |
0.1-1000 |
6 |
Turret vertical movement distance |
mm |
450mm |
7 |
Turret horizontal movement distance |
mm |
±470 |
8 |
X-axis fast moving speed |
mm/min |
1500 |
9 |
Z axis fast moving speed |
mm/min |
8000 |
10 |
Turret form |
|
2 station row turret |
11 |
Tool handle section |
mm |
25×25 |
12 |
Main motor power |
kw |
5.5 |
13 |
Feed motor |
|
X: 6Nm Z: 2×6Nm |
14 |
Machine positioning accuracy |
mm |
0.015 |
15 |
Machine repeated positioning accuracy |
mm |
0.012 |
16 |
Machine weight |
kg |
1500 |
17 |
Machine dimensions |
mm |
2000×1550×2000 |
Vertical CNC Wheel Repair Lathe CKL-35 Features
- Newly developed Vertical Wheel Repair Lathe by HAISHU Machinery for alloy car wheel repair and super finishing.
- Cast iron bed. The wheel repair CNC lathe bed is made of cast steel in vertical structure.
- Large wheel processing diameter. The max wheel processing diameter is up to 35 “.
- Self-developed special wheel repair control software. Automatic wheel surface measurement and program optimization can be realized simultaneously.
- Laser non-contact measurement or probe contact measurement are optional. Laser measurement enables fast scanning.
- Teaching function. The overall wheel surface of can be repaired, but also can be partially repaired.
- LCD touch screen configuration
- Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.
- Small machine tool space, professional CNC lathe for wheel repair.
- Professional after sale service including software free upgrade and remote operation and technical training on the machine’s LCD display.
- High performance, cost effective.
- Easy to operate and maintain.
Vertical CNC Wheel Repair Lathe CKL-35 Applications
Vertical Wheel Repair Lathe CKL-35 is the best wheel CNC machine to repair and process the alloy car wheel surface, center hole and rim, etc.
Vertical CNC Wheel Repair Lathe CKL-35 Configurations
- CNC system: “HAISHU” LCD touch screen CNC system
- Laser probe
- Precision spindle unit
- Z-axis dual servo motor drive
- X, Z axis linear guide
- Precision screw vice
- Software and hardware limit
- Rail protection system
- Automatic lubrication system
- Air cooling system
- Air gun
- MPG
- Warning lights
- Full protection outer casing
- Chip removal box
- Pneumatic door
- Long jaw chuck
- 2 Station row turret
- Z safety brake
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
standard exported wooden case
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC wheel machine products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.
