High Efficiency Alloy CNC Wheel Lathe Machine CK6180A
Alloy CNC Wheel Lathe Machine Description
CNC wheel lathe machine CK6166A & CK6180A are widely used for wheel machining, super-finishing and maintenance. These alloy CNC wheel machine has the characteristics of high quality, high precision and high efficiency.

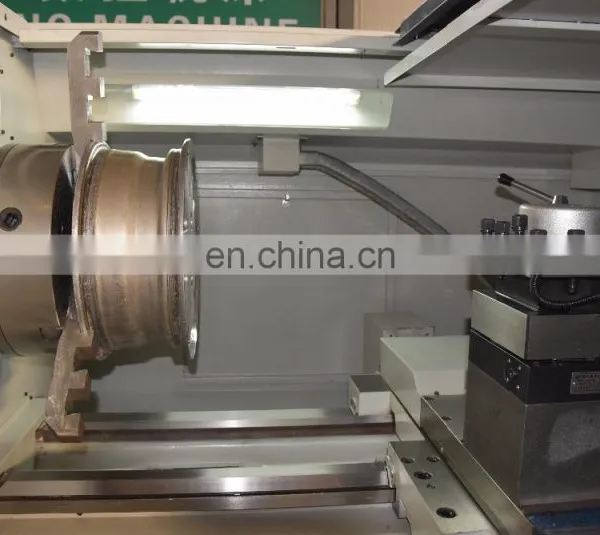

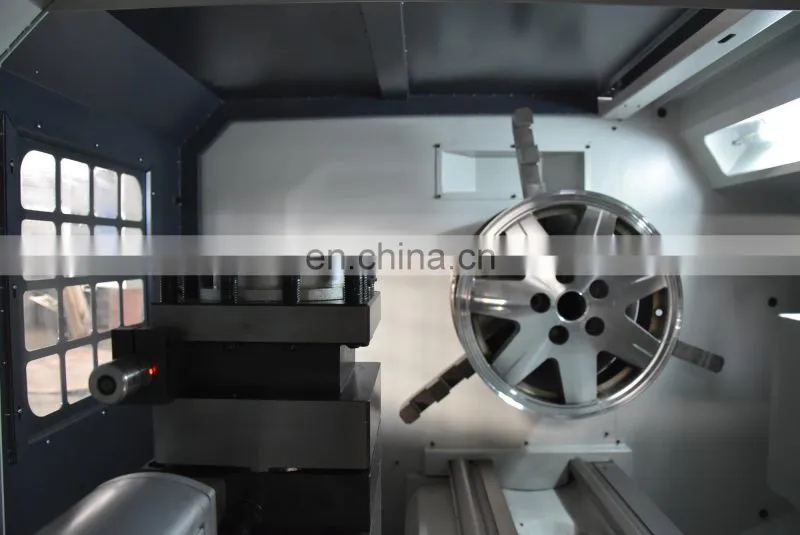

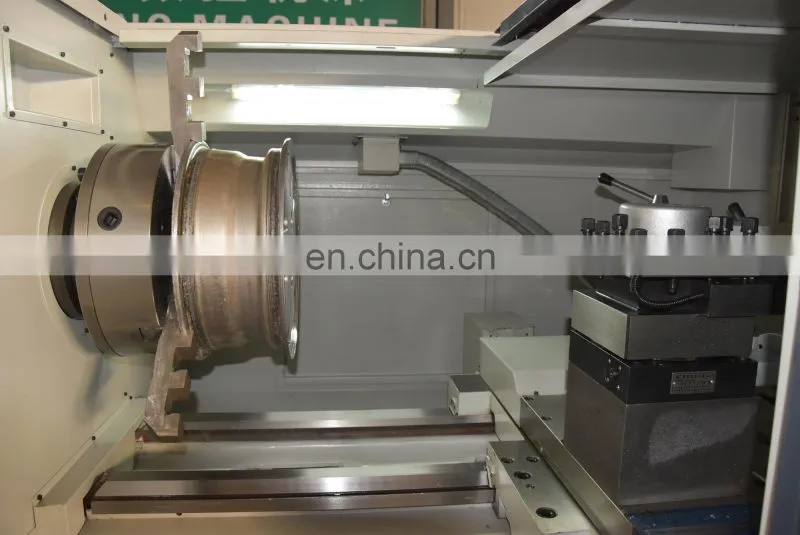

CNC wheel lathe machine is composed of self-made mechanical parts such as the cast bed, spindle, fixing chuck and the feeding mechanism, the imported numerical control system,the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light and cooling.
Our alloy wheel CNC machine model CK6166A & CK6180A are cost-effective, space-saving, they have the same technical parameters and configuration except the maximum wheel diameter. The CNC wheel machines are widely used in automobile wheel production factories and repair shops.

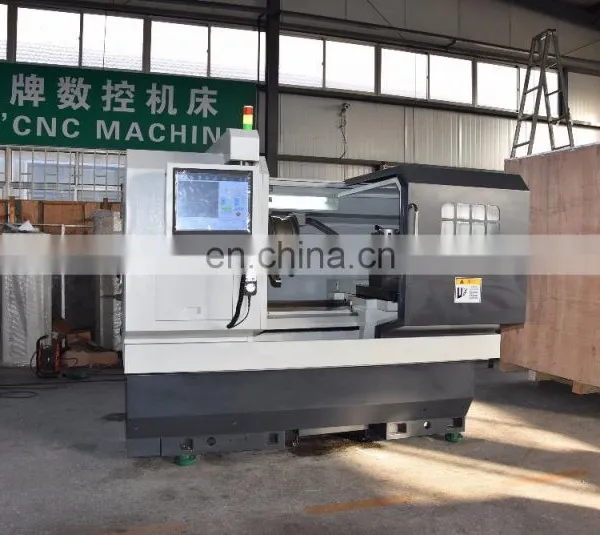

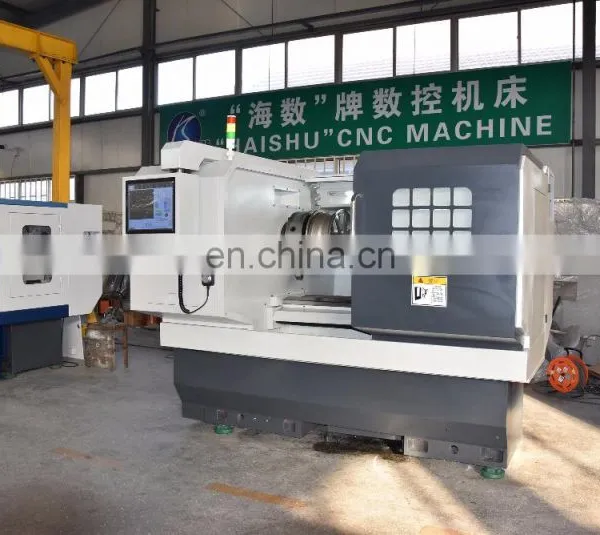

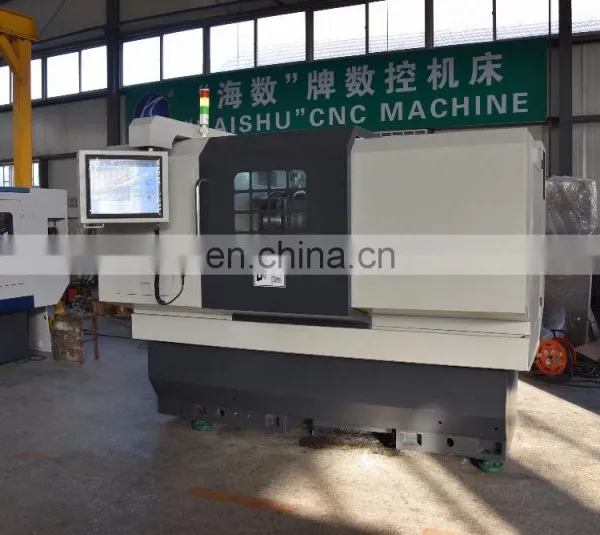

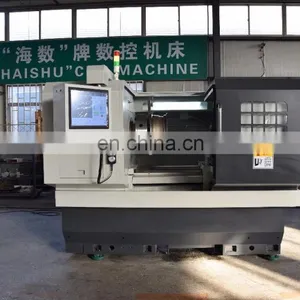

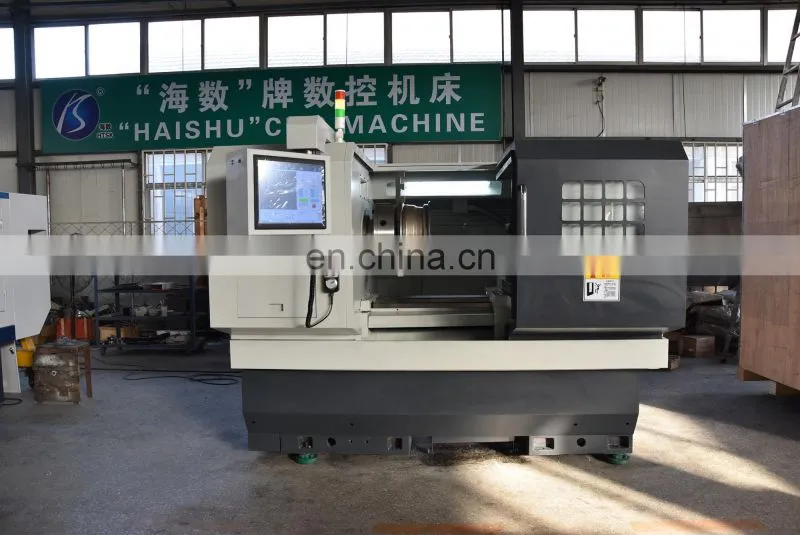

CNC wheel lathe machine workshop
CNC wheel lathe machine Technical parameters and configuration
Item |
Unit
|
CK6180A |
Max. wheel diameter |
Inch |
28" |
Chuck diameter |
mm |
φ400 |
Chuck claws |
mm |
Lengthened |
X-axis maximum stroke |
mm |
400 |
Main motor power |
kw |
7.5 |
mm |
400 |
|
Max. workpiece length |
mm |
750 |
Wheel measuring direction |
|
X,Z |
Measuring tool |
mm |
|
Measurement method |
|
Point measurement and quick scan |
Program optimization |
|
Manual and automatic |
|
||
CNC System |
|
|
Wheel processing |
|
surface, rim |
Mchining accuracy |
|
IT6~IT7 |
Surface roughness |
um |
Ra0.8~1.6 |
Main drive form |
|
|
Spindle speed |
rpm |
|
Fast-moving feed |
mm/min |
X :5000 Z :8000 |
Repeat accuracy |
mm |
X :0.01 Z :0.015 |
Turret form |
|
|
mm |
25×25 |
|
Machine size(L×W×H) |
mm |
|
Net weight |
kg |
3000 |
Main features of CNC wheel lathe machine
Automatic laser scanning and fast measurement.
Wheel data is acquired, processed and stored automatically .
Self-developed CNC software, automatically program optimization.
Precise and fast wheel processing.
Touch screen operation, support multiple languages
X / Z axis measurement, wheel surface and circumferential machining.
Three-color warning lights.
Automatic lubrication system.
Diamond cutter.
The machine can be customized according to customer requirements
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK
