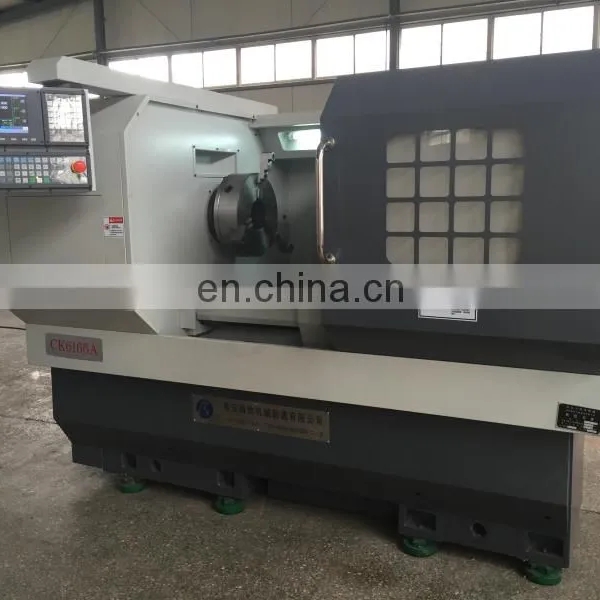

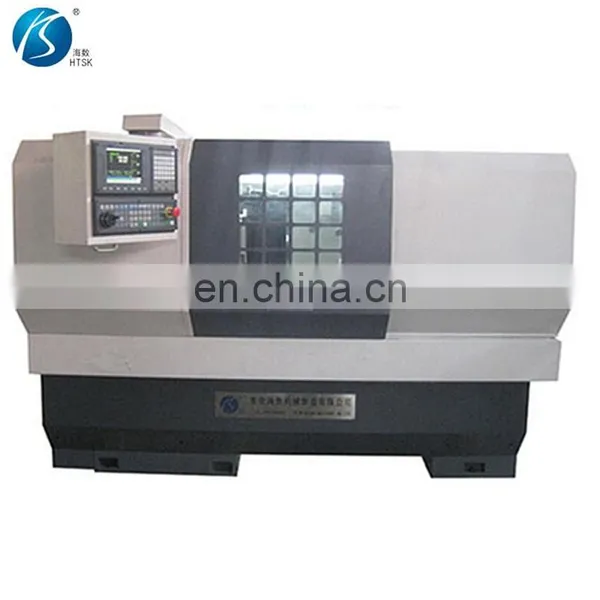

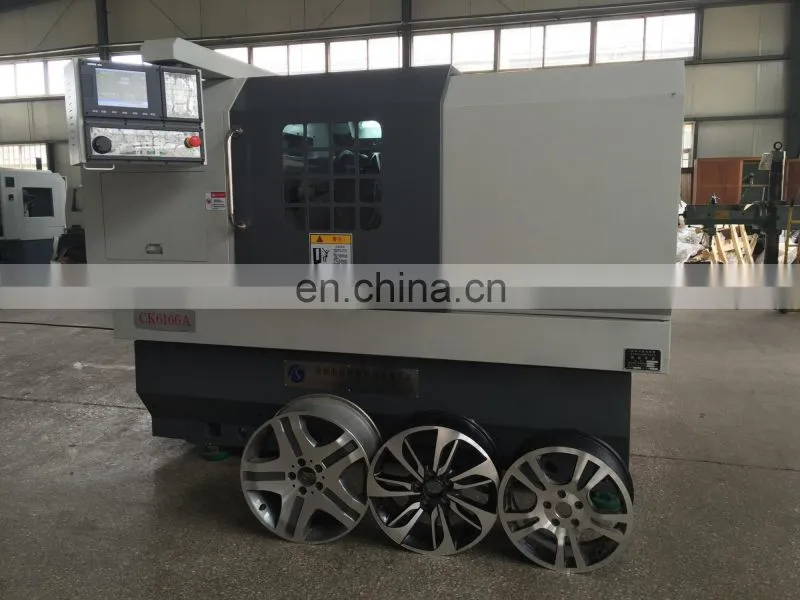

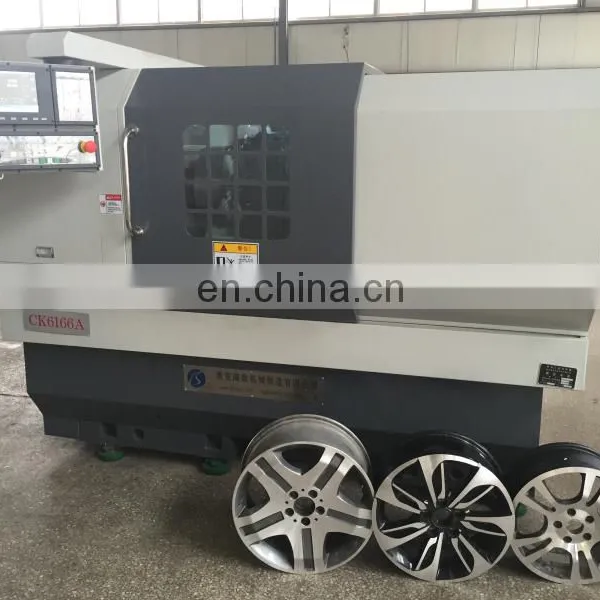

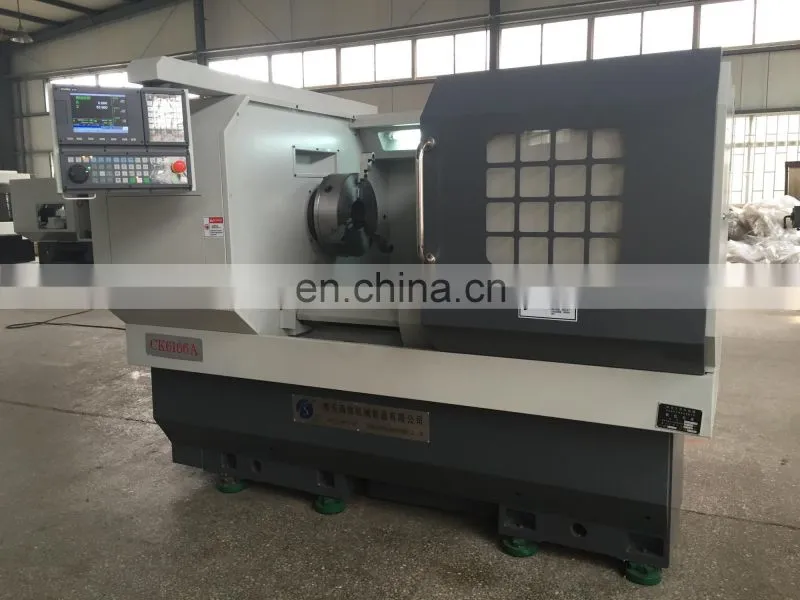

High quality CK6166A wheel repair lathe machine
High quality CK6166A wheel repair lathe machine Description
wheel repair lathe machine CK6166A & CK6180A are widely used for wheel machining, super-finishing and maintenance. These alloy CNC wheel machine has the characteristics of high quality, high precision and high efficiency.
wheel repair lathe machine is composed of self-made mechanical parts such as the cast bed, spindle, fixing chuck and the feeding mechanism, the imported numerical control system,the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light and cooling.
Our wheel repair lathe machine model CK6166A & CK6180A are cost-effective, space-saving, they have the same technical parameters and configuration except the maximum wheel diameter. The wheel repair lathe machine are widely used in automobile wheel production factories and repair shops.
wheel repair lathe machine workshop:
wheel repair lathe machine technical parameters
Item |
unit |
CK6166A |
Max. wheel diameter |
Inch |
22" |
Chuck diameter |
mm |
Φ380 |
Chuck claws |
mm |
Lengthened |
X-axis maximum stroke |
mm |
330 |
Machine size(L×W×H) |
mm |
2450*1680*1775 |
Net weight |
kg |
2900 |
Main motor power |
kw |
7.5 |
Rail width |
mm |
400 |
Max. workpiece length |
mm |
750 |
Wheel measuring direction |
|
X,Z |
Measuring tool |
mm |
Laser, probe (optional) |
Measurement method |
|
Point measurement and quick scan |
Program optimization |
|
Manual and automatic |
Number of wheel processing programs |
|
100000 |
CNC System |
|
"HAISHU" special system (touch screen operation,17"screen LCD display). Universal CNC system (key operation, 10.4 "screen LCD display) (optional) |
Wheel processing |
|
surface, rim |
Mchining accuracy |
|
IT6~IT7 |
Surface roughness |
um |
Ra0.8~1.6 |
Main drive form |
|
Frequency control, servo drive (optional) |
Spindle speed |
rpm |
Factory setting 150~2000,>2000(optional) |
Fast-moving feed |
mm/min |
X :5000 Z :8000 |
Repeat accuracy |
mm |
X :0.01 Z :0.015 |
Turret form |
|
Fixed turret,Electric turret (optional) |
Section of turning tool |
mm |
25×25 |
Main features of wheel repair lathe machine:
Automatic laser scanning and fast measurement.
Wheel data is acquired, processed and stored automatically .
Self-developed CNC software, automatically program optimization.
Precise and fast wheel processing.
Touch screen operation, support multiple languages
X / Z axis measurement, wheel surface and circumferential machining.
Three-color warning lights.
Automatic lubrication system.
Diamond cutter.
The machine can be customized according to customer requirements.
standard exported wooden case
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying automobile wheel production and repair solutions to worldwide customers. We have been always worked hard to become the leader in designing and manufacturing CNC lathes since 2001. We have more than 30 talented experts and more than 12,000 square meters factory.
Sticking on the product development ideas of innovation, simpleness, high quality and high efficiency, we had been always focused on CNC software development, structural design, process planning, manufacturing deployment and quality control since the foundation in 2001. Our innovative, high-quality products include wheel CNC machine, wheel repair machine, brake drum lathe and customized CNC machine, alloy wheel cnc lathe, wheel straightening machine, alloy wheel lathe machine, alloy wheel polishing machine, rim straightening machine, brake disc lathe and other customized CNC machines. Our customers are from Germany, Russia, Spain, India, South Korea, Malaysia, Singapore, Saudi Arabia, South Africa, Iran, Indonesia, Turkey, Jordan, Dubai, Poland, Morocco, Mexico, Brazil, Lebanon, Thailand, Kazakhstan, Bangladesh, HK, Taiwan and so on.
We are looking for partners all over the world.
