Product Details
| Brand Name | Haishu | Place of Origin | Shandong, China | |
| Model Number | cnc650w | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Fumigation-free packing in wooden cases.standard exported package
Product Description
CK400-B cnc lathe machine/ alloy wheel repair equipment
Technical Parameter
CNC400W slant bed cnc wheels lathe machine
Main features:

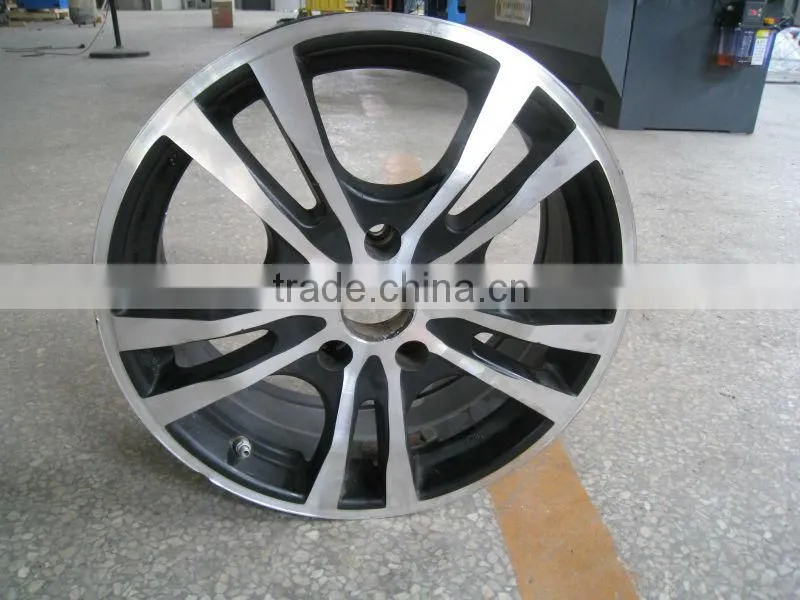

1.this machine is processing and reparing wheels specially cnc lathe, also can used as universal cnc lathe .
2.This mahcine max processing wheel size 24inch.
3.This machine, is all slant bed cnc lathe, spindle used servo spindle unit, servo change speed,X/Z use linear guide, high configurations, high effenciency,Excellent processing performance.
NO. | item | unit | parameter |
CNC450W | |||
1 | processing max wheel size | 20" | |
2 | Max.rotation diameter on lathe’ body | mm | 650 |
3 | Max turning length | mm | 750 |
4 | Max turning diameter | mm | 600 |
5 | Spindle nose type and code | mm | A8 |
6 | manual 3jaw chuck | mm | φ320(12.5") |
7 | Front spindle bore taper |
| 1:20 |
8 | Spindle bore diameter | mm | 75 |
9 | Spindle form |
| Servo spindle unit |
10 | Spindle speed range | rpm | 20-3000 |
11 | X/ZRapid traverse | mm/min | 20000 |
12 | Main motor power | kW | 7.5 |
13 | X/Z-axis motor max.torque | N.m | 15 |
14 | Power specifications | v | 380±10%. 50Hz±1Hz |
15 | Turret transfer repeat positioning accuracy | mm | 0.005" |
16 | turret form | Horizontal 8 stations hydraulic turret | |
17 | tailstock sleeve diameter/schedule | mm | 80/100 |
18 | tailstock taper hole taper | MT | 5# |
19 | tailstock drive form |
| electric |
20 | tailstock sleeve drive form |
| hydraulic |
21 | Section of tool shank | mm | 25*25 |
22 | Machine weight | kg | 5800 |
23 | Machine dimension | mm | 2700×1600×1950 |
Main configurations:
Standard configurations

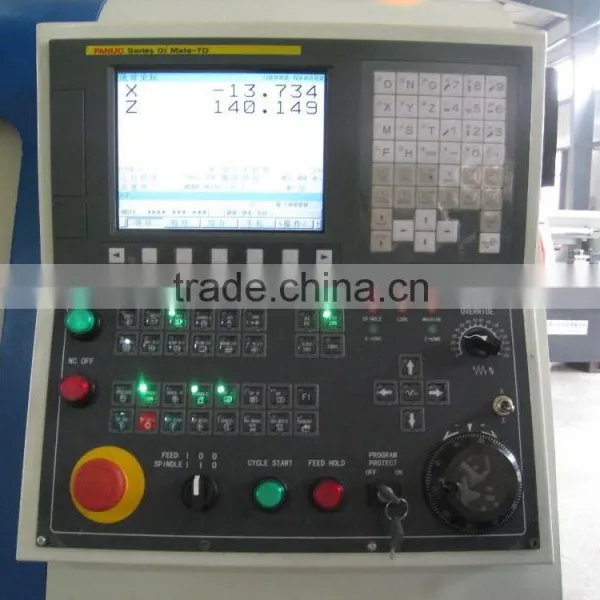

- Wheel hub special cnc controller system
- Manual 3 jaw chuck
- Horizontal 8 stations hydraulic turret
- Spindle unit,servo change speed
- Three axis linear guide
- Manual tailstock
- Auto lubrication system
- Cutting cooling system
- Whole protection cover, manual protective door
Optional configurations
1.auto chip conveyor
2.Automatically tailstock
3.Automatically protection door
4.Wheels hub specially chuck

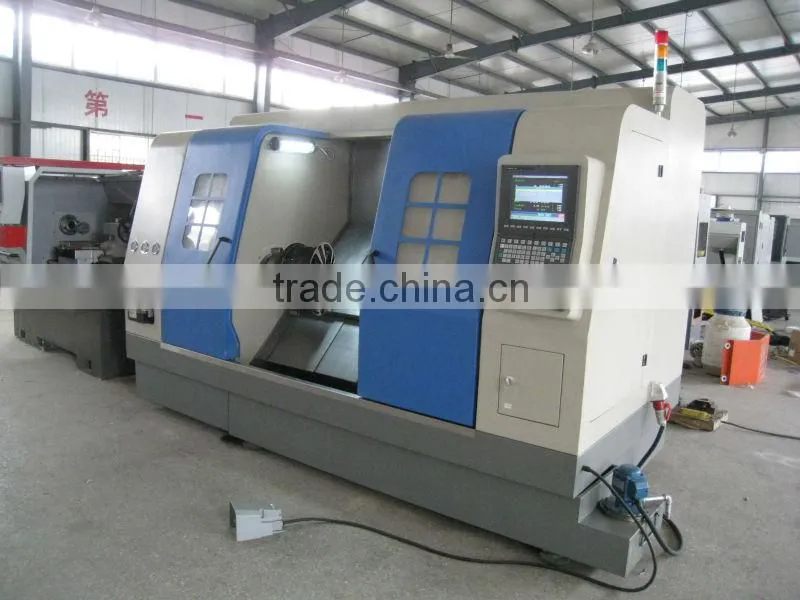

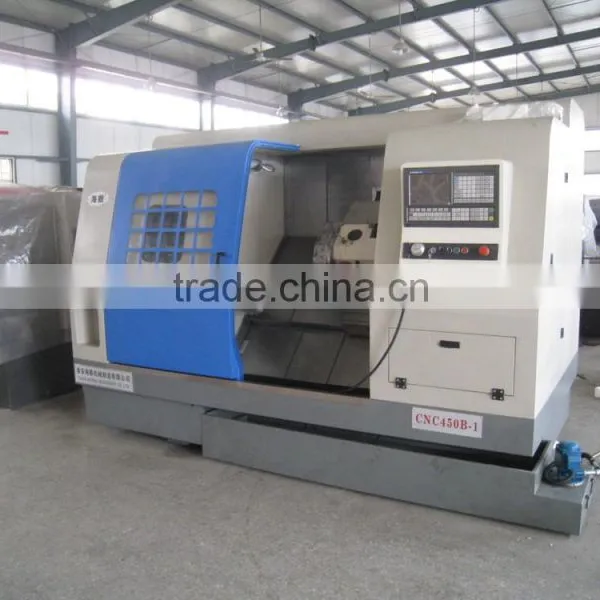

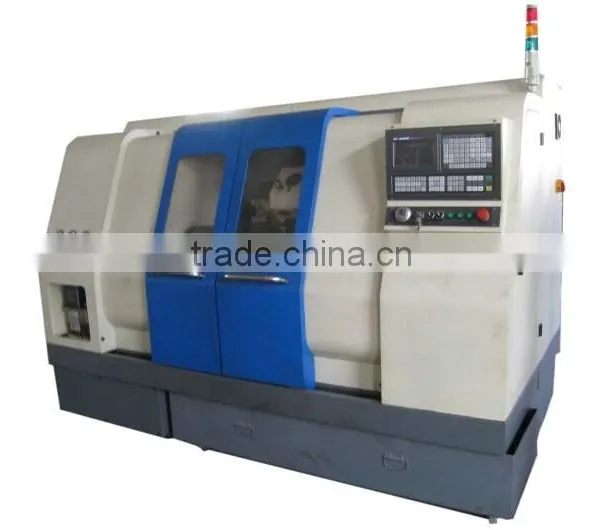

finished machine slant bed cnc lathe machine
slant bed cnc lathe machine with package
welcome to our company---------Taian Haishu Machinery CO.,LTD
looking forward to your cooperations!
