Product Details
| Brand Name | Haishu | Place of Origin | Shandong, China | |
| After-sales Service Provided | Overseas service center available | Condition | New |
Fumigation-free packing in wooden cases.standard exported package
Product Description
Tornos CNC Lathe Machine Horizontal, cnc bed slant small lathe CNC350B-1
Product Description
A .machineParameter
(3-axis harden guide, three gears change speed, harden cutting )
Item |
Unit | specifications |
CNC350(B-1) | ||
Max.rotation diameter on lathe’ body | mm | 350 |
piece lengt | mm | 750 |
Max.turning diameter | mm | 300 |
Spindle nose type and code | mm | A8 |
Hydraulic chuck | mm | φ250 (10") |
Front spindle bore taper |
| 1:20 |
spindle bore | mm | 60 |
Spindle form | Programmable three gears auto hydraulic speed change | |
Spindle frequency control speed range | rpm | 20-3000 |
X/Z Rapid traverse | mm/min | 20000 |
Main motor power | kW | 11 |
X/Z-axis motor max.torque | N.m | 10 |
Power specifications | V | 380±10%. 50Hz±1Hz |
Turret transfer time (one station) | s | 1.6(horizontal12) |
Turret transfer repeat positioning accuracy |
| 0.005" |
X-axis travel | mm | 300 |
Z-axis travel | mm | 1100/1350/1850 |
B-axis travel | mm | 1100/1350/1850 |
Hydraulic turret form |
| Horizontal 12 hydraulic turret |
Tailstock sleeve diameter/ travel | mm | 70/100 |
Tailstock tapered bore taper | Morse | 4# |
Tailstock form (programming optional) |
| Electric drive |
Tailstock sleeve form |
| Hydraulic drive |
Knife handle size | mm | 25×25 |
Net weight | kg | 5000 |
Size(L×W×H) | mm | 3000×1650×1900 |
Standard :
1.GSK980TDc controllers sytem
2.Spindle 3 gears frequency control speed
3.Hydraulic solid chuck
4.Horizontal 12 hydraulic turret
5.Three axis harden guide
6.Electric tailstock,hydraulic sleeve
7.Turning coolant system
8.Auto lubrication system
9.Whole protection door
Optional configurations:
1.fanuc/siemens controller system
2.Hydraulic hollow chuck
3.Electric and programming tailstock
4.Auto bar feeder
5.Auto chip cleaner
6.Auto catcher device
7.Auto protection door
8.Loading robot

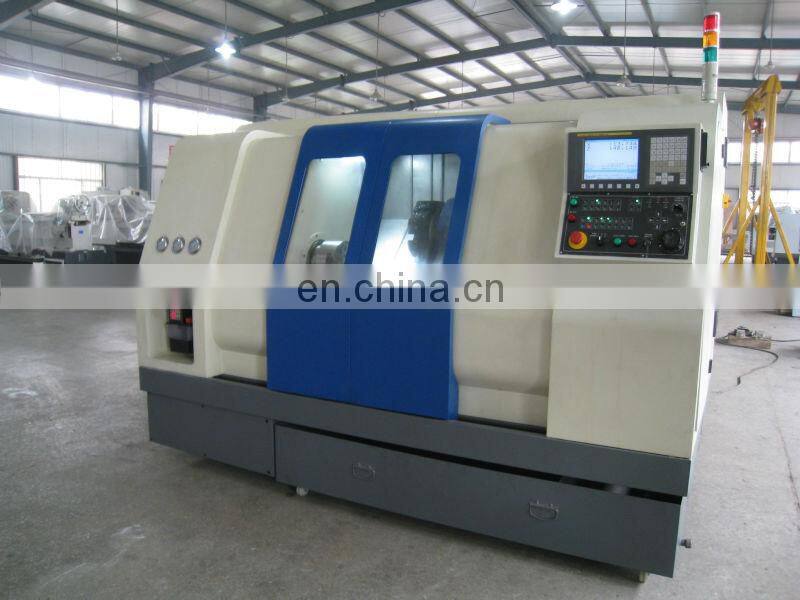

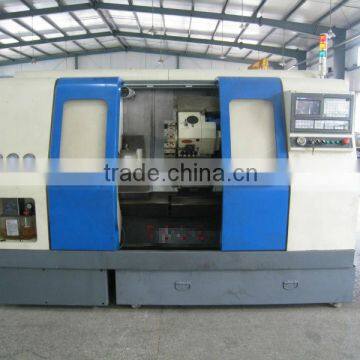

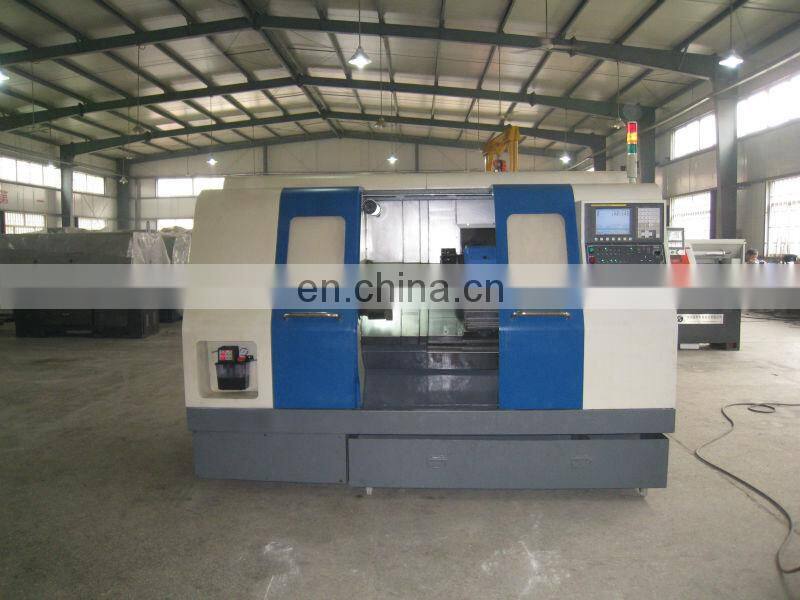

pictures of details
horizontal lathe cnc price
Packing standard: standard exported package case, composite material Fumigation-free packing
B:shipment packing(truck, train,shipping)
Sample service,customized service,best and total after-sales service , IWS!
engineer provide installment and training freely!
Our machine through the EU CE certification
Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
