CNC650W Slant bed cnc wheel lathe for repair alloy wheels cutting machine
Technical Parameter
Item |
Unit |
specifications |
CNC650W | ||
Max.rotation diameter on lathe’ body |
mm |
650 |
piece lengt |
mm |
750 |
Max.turning diameter |
mm |
610 |
Spindle nose type and code |
mm |
A8 |
chuck |
mm |
φ320 (12.5") |
Front spindle bore taper |
|
1:20 |
Spindle bore |
mm |
60 |
Spindle form |
|
Servo spindle unit |
Servo spindle speed range |
rpm |
20-3000 |
X/Z Rapid traverse |
mm/min |
40000 |
Main servo motor power |
kW |
7.5 |
X/Z-axis motor max.torque |
N.m |
10 |
Power specifications |
v |
380±10%. 50Hz±1Hz |
Turret transfer repeat positioning accuracy |
|
0.005" |
X-axis travel |
mm |
350(reference) |
Z-axis travel |
mm |
1100(reference) |
turret form |
|
horizontal 8 station servo turret |
Knife handle size |
mm |
25*25 |
Net weight |
kg |
4500(reference) |
Size(L×W×H) |
mm |
2700×1650×1900(reference) |
Standard configuration:
Servo spindle unit
φ320mm three jaw chuck

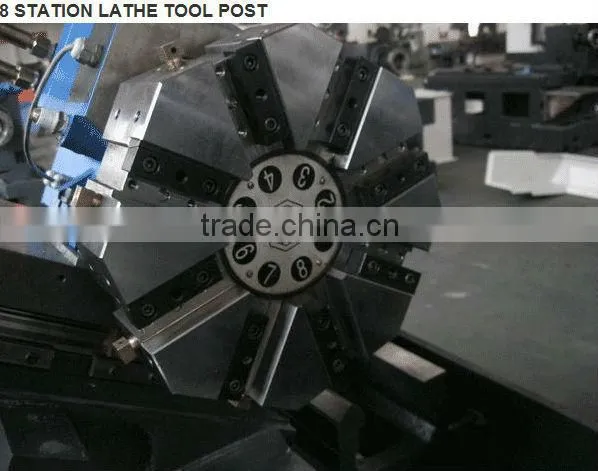

Horizontal 8-station servo turret

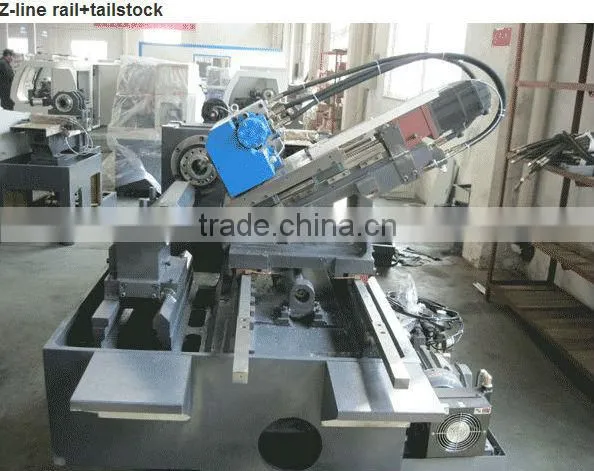

3-axis line rail
Turning cooling system
Automatic lubrication system
linkage self-locking whole protection dool

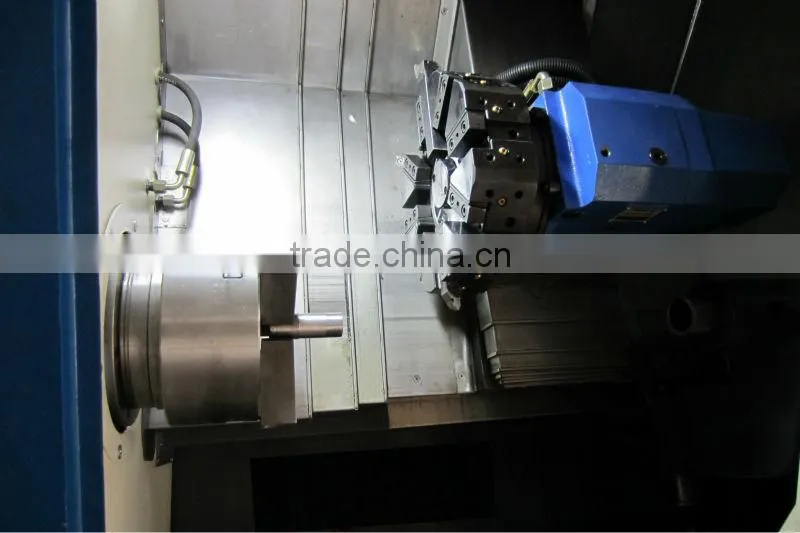

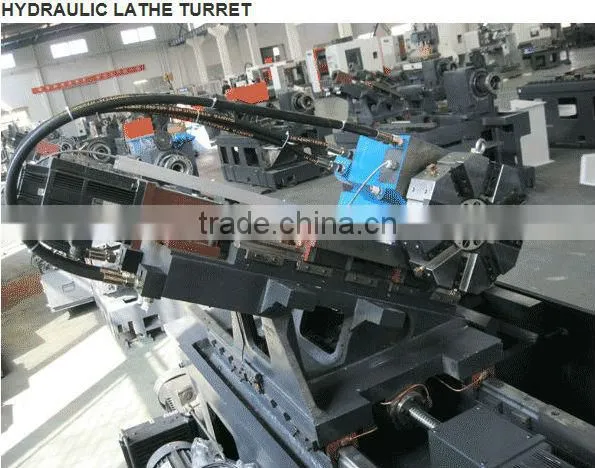

hydraulic chuck and 8 stations turret

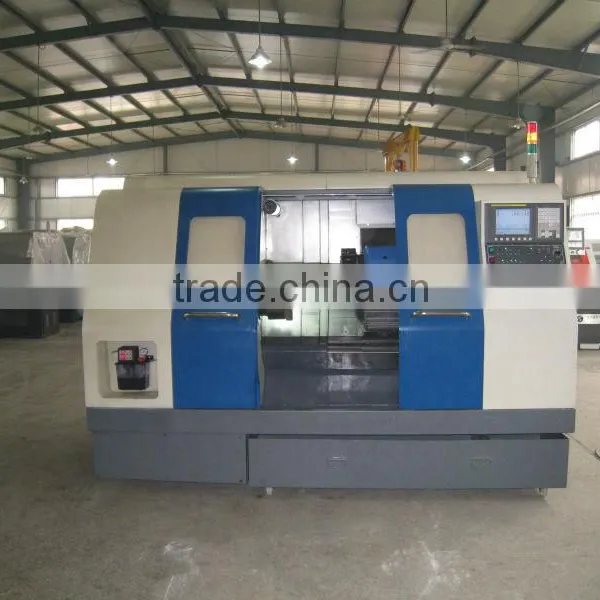

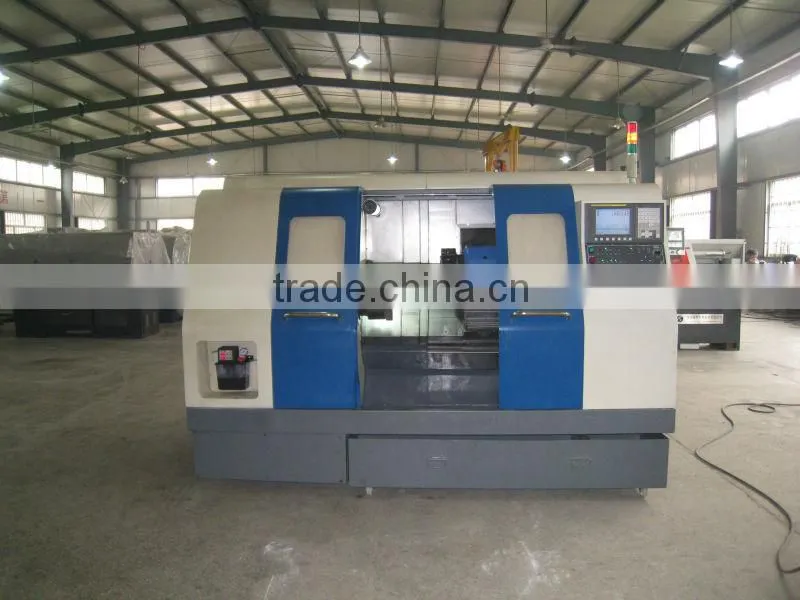

finished machine slant bed cnc lathe machine
slant bed cnc lathe machine with package
welcome to our company---------Taian Haishu Machinery CO.,LTD
looking forward to your cooperations!
