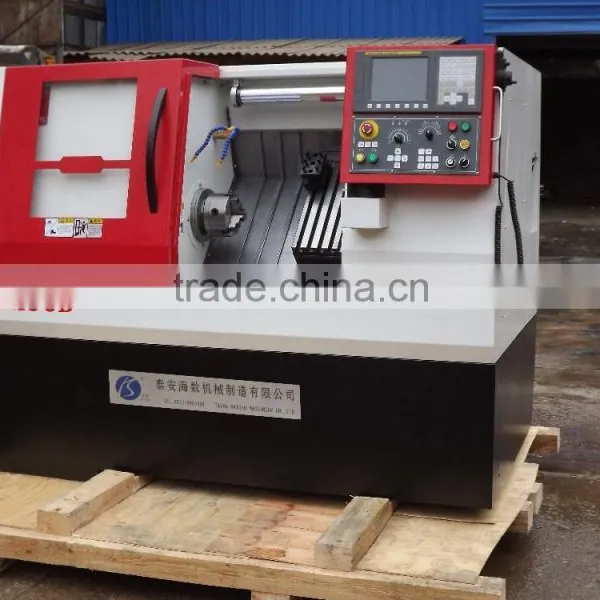

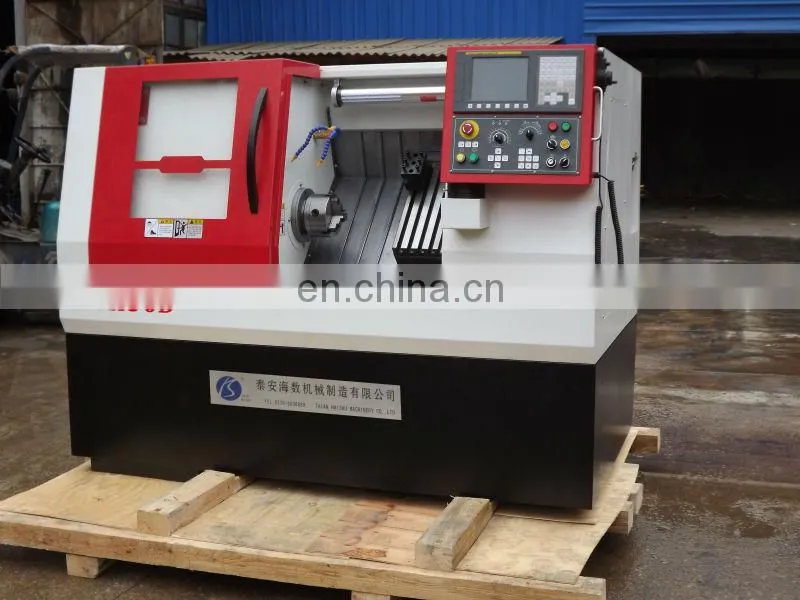

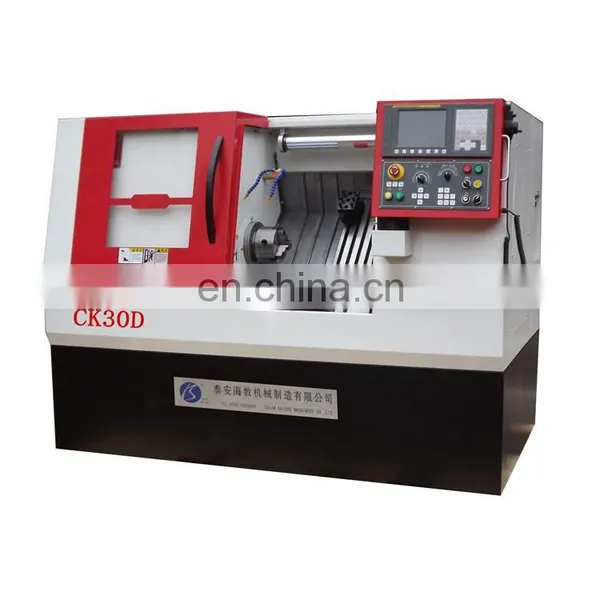

CK30D Horizontal cnc gang type lathe with slant bed and hydraulic chuck
Technical parameters
Item |
Technical parameters |
Maximum turning diameter over bed |
f 300 mm |
Maximum turning diameter over skateboard |
f 120 mm |
X-axis maximum stroke |
280 mm |
Z-axis maximum stroke |
320 mm |
Rail width |
325mm |
Spindle head model |
ISOA2-5 / MT5# |
Spindle bore |
f41mm |
Speed |
5000r/m |
Chuck |
f160 mm |
Turret type |
knife row |
Tool shank specifications |
20 mm×20 mm |
Knife block center high |
61 mm |
Main motor power |
4 kw |
X-axis motor power |
5 Nm |
Z-axis motor power |
7.5 Nm |
Foot of the bed to spindle center height |
935 mm |
Oversize |
1105×680×1194mm |
Net weight |
1000 kg |
characteristics

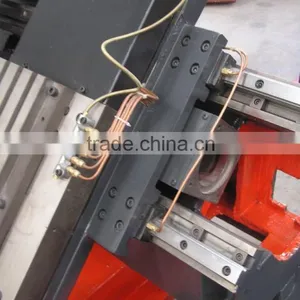

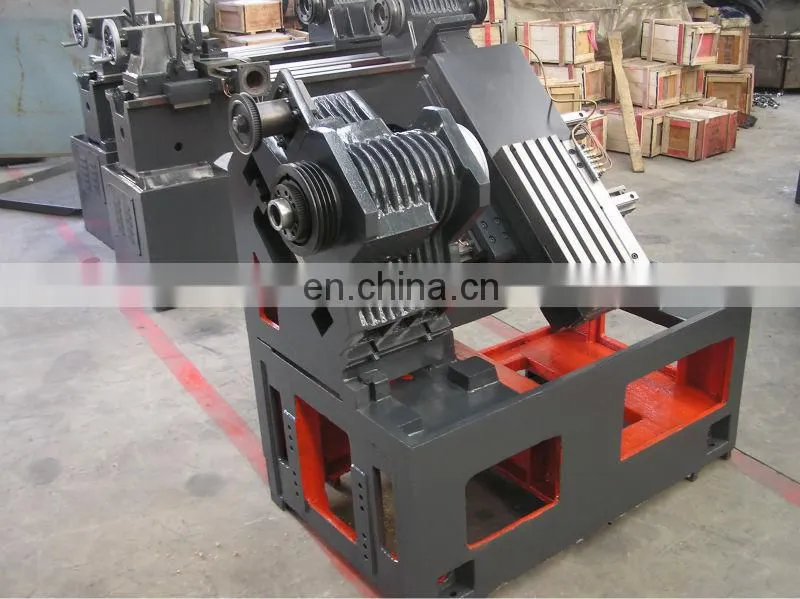

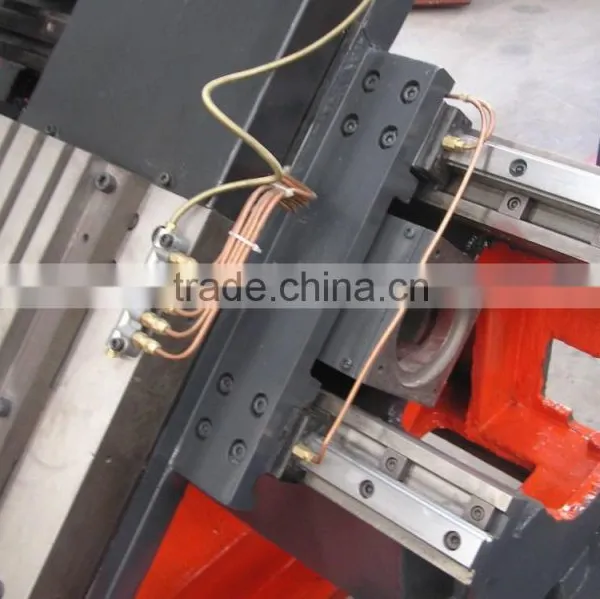

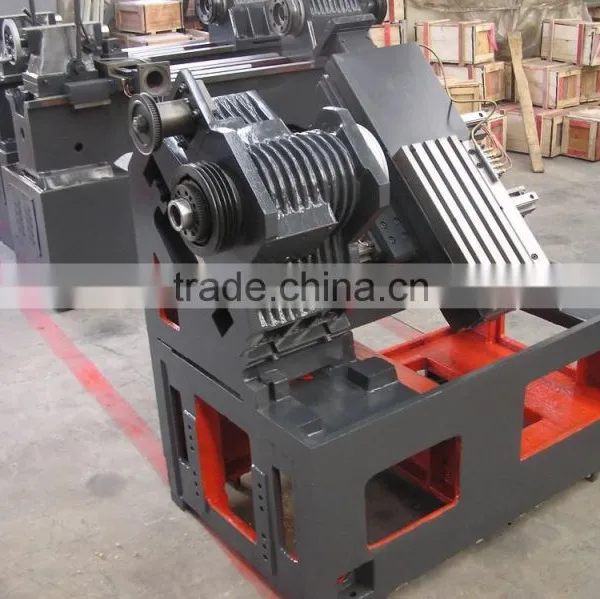

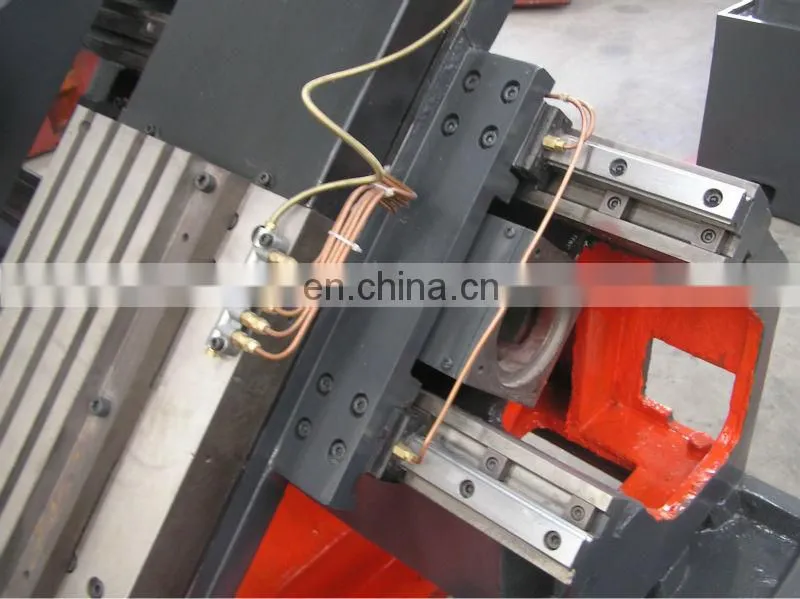

1. 45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;
2. The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, u
ltra-audio frequency hardened rails for precision grinding, precision to maintain good;
3. The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust
and safety performance is much better than similar products;

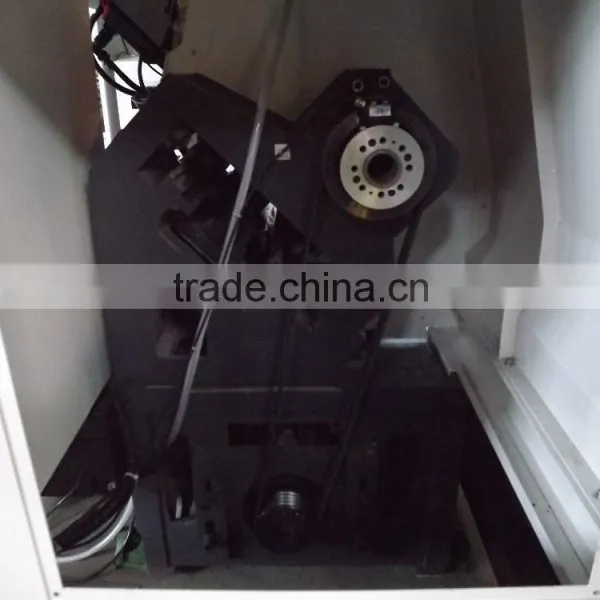

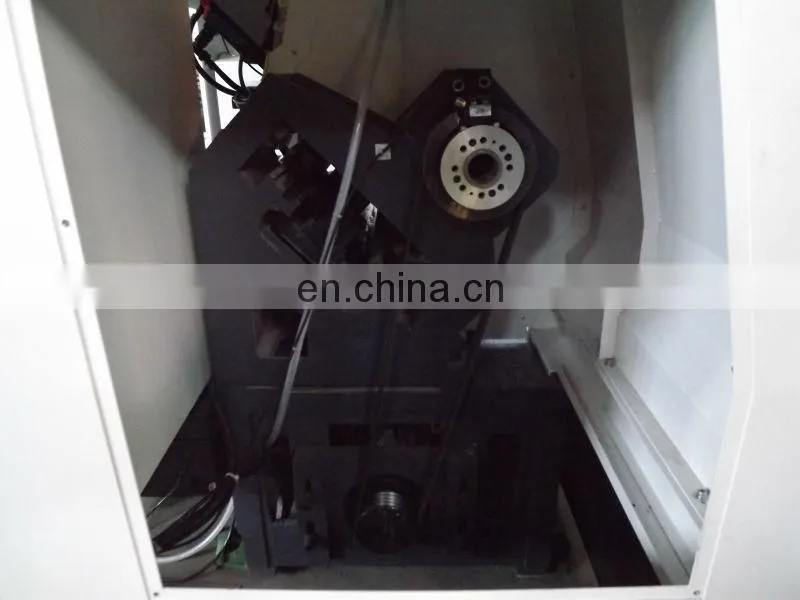

4. Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;
5. X-axis maximum stroke(280 mm), use knife row, high work efficiency.
use
This machine is suitable for high accuracy and conformance requirements for small and medium size disk parts.
slant bed small cnc lathe machine
welcome to our company! looking forward to your cooperations!!!
