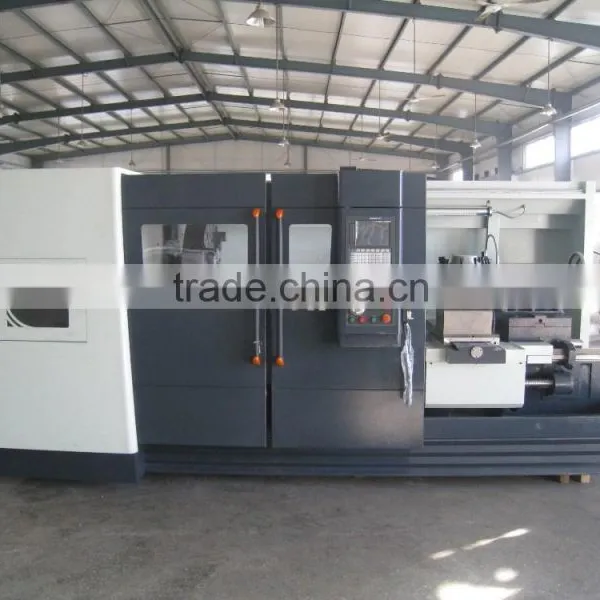

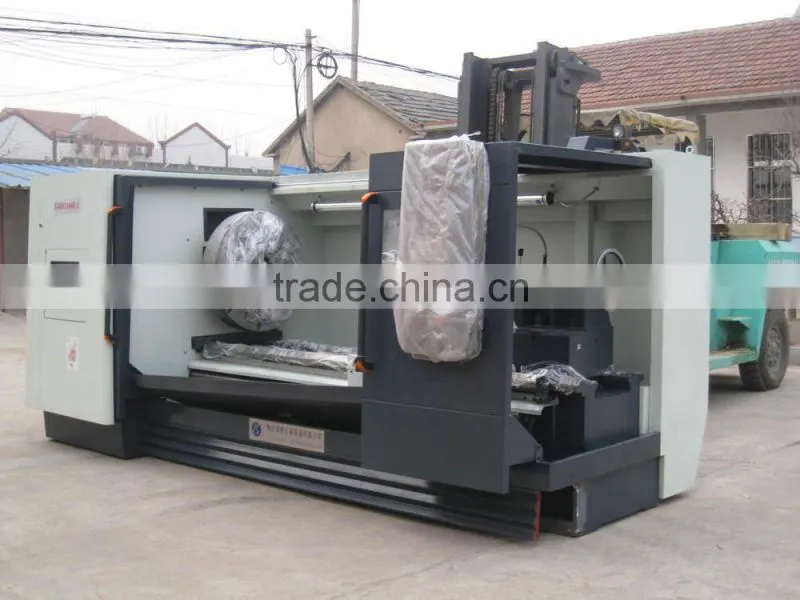

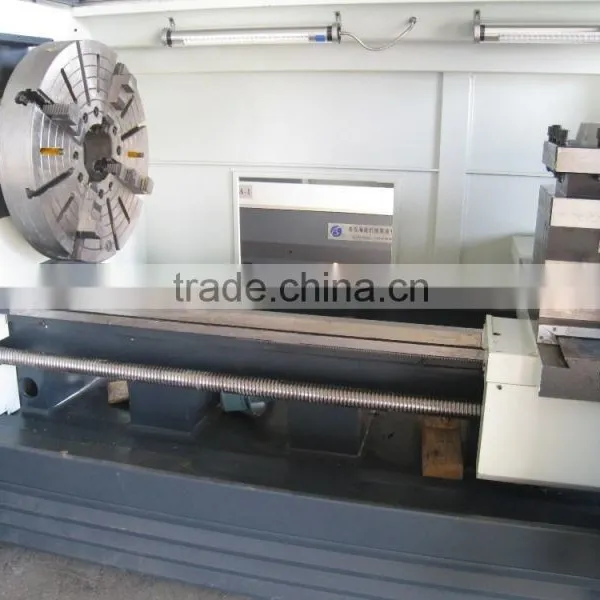

CJK61125 manufacturers top sale homemade cnc lathe machine supplier
Technical parameters
Items |
CJK61125B-1 |
Max.swim over bed (mm) |
1250 |
Max.swim over carriage(mm) |
660 |
Max.length of work piece(mm) |
1000/1500/3000 |
Spindle speed |
auto 3 gear steps,stepless speed change in the step |
Range of Spindle speed (r/min) |
18-600 |
spindle nose |
C11 |
Spindel bore(mm) |
φ130 |
taper hole of spindle |
120 1:20 |
Main motor model |
YVP180L-6-15KW |
Max.travel(mm) |
X 500 Z 1200,1650,3100 |
rapid speeds(mm/min) |
X 4000 Z 5000 |
Min.feed increment(mm) |
X 0.01 Z 0.015 |
workpiece accuracy |
IT6-IT7 |
surface roughness |
Ra1.6 |
diameter of tailstock quil(mm) |
100 |
travel of tailstock quill(mm) |
250 |
taper hole of tailstock quill |
Morse 6 |
stand configuraion |
Vertical 4-position electrical turre |
Section of turning tool(mm) |
35*35 |
Packing size (mm) |
3750/4750/5500×1920×1800 |
weight |
5000/6000/7000 |
Configuration
Standard configurations |
1. guide width is 660mm 2. spindle bore dia is 130mm 3. 4 electric tool post 4. spindle speed is a gear three handle, stepless change the speed, 5. X/Z servo driven 6. controller is GSK980TDb 7. motor power is 15kw 8. manual chuck and manual tailstock 9. auto lubrication 10. Semi-enclosed protection Tool box Instruction manual Packing list |
Opitional configurations |
.Siemens . Fanuc 0i-mate TD . NSK spindle bearing . 6 or 8 ,12position turret .Hydraulic chuck .Penumatic chuck .Pneumatic tailstock .Hydraulic tailstock |

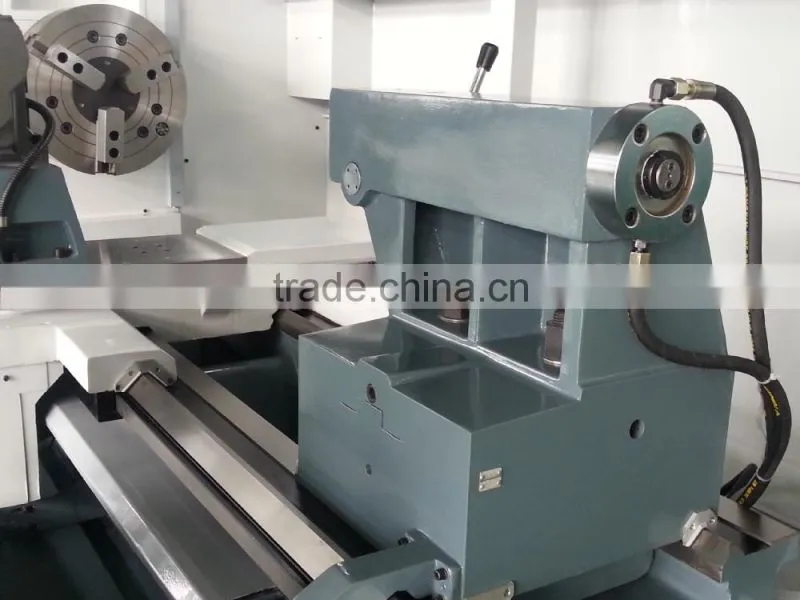

hydraulic tailstcok

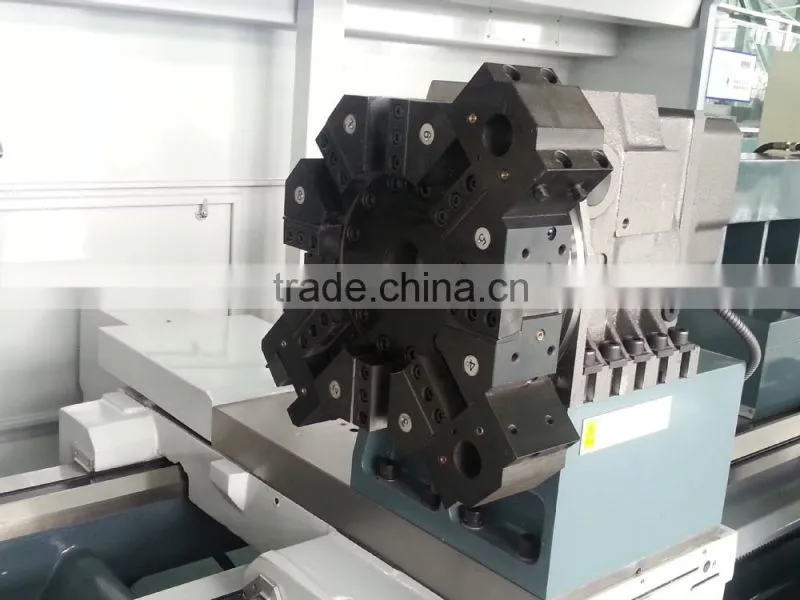

8 tool post
we provide on-site training.

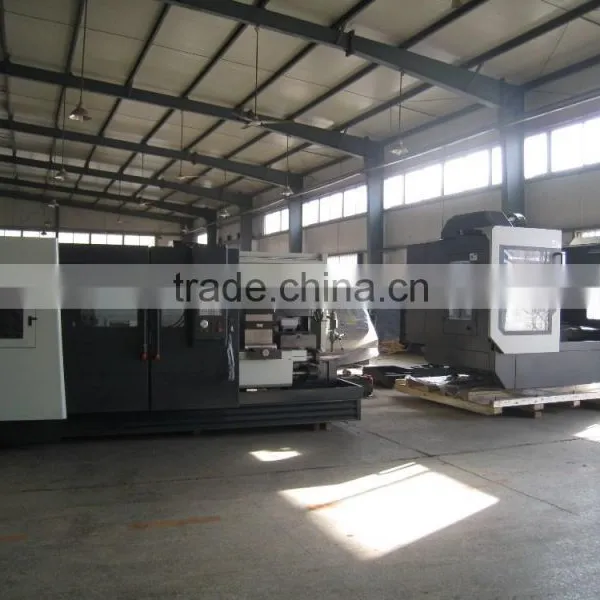

welcome to our factory for visiting.
why choose taian haishu cnc machine?

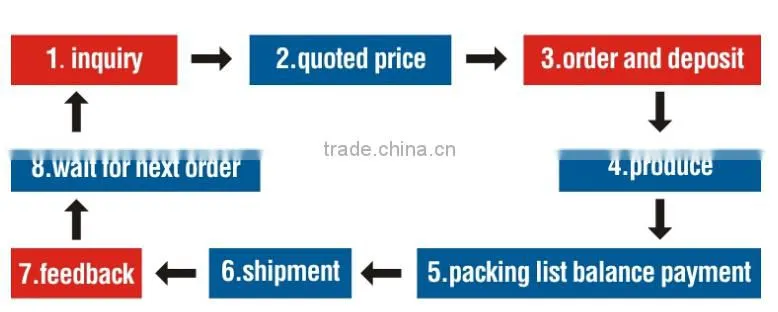

how to buy taian haishu cnc machines?
