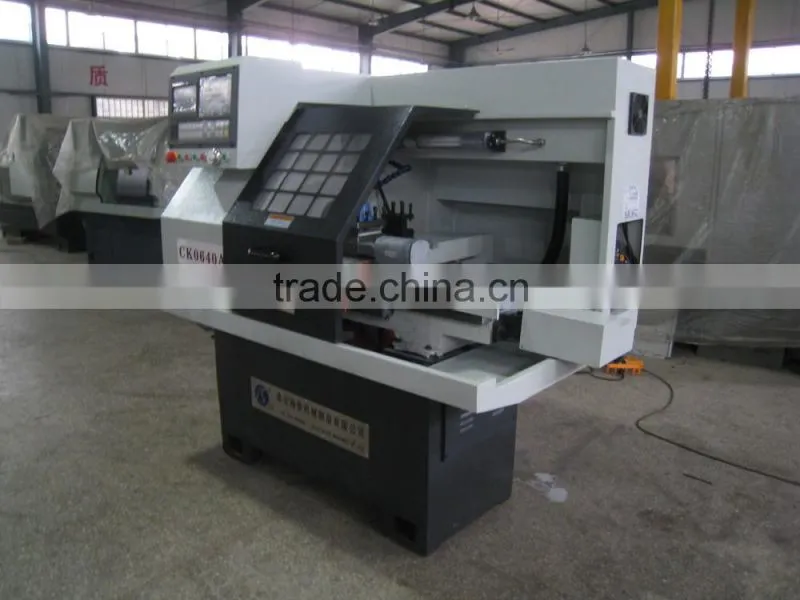

CNC micro lathe machine Price and Specification CK0632A with auto feeder
- 90 Set / Sets per Month
- Qingdao Port China Shanghai
- T/T Credit Card
- Mini CNC Lathe Machine Price and Specification CK0625A
- Mini CNC Lathe Machine Price and Specification CK0632A with auto feeder
- CK6136A CNC Machine Price List alimentador de la barra torno cnc
- CK0640A fanuc cnc turning lathe mini cnc 0640
- CK0625A micro cnc lathe machine /mini lathe cnc copper
- CK0632 Horizontal Low Price Micro CNC Lathe For Metalworking With Auto Bar Feeder
Product Details
Brand Name: | TAIANHAISHU | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Packaging Details
Plastic gowns and wood packaging
Product Description

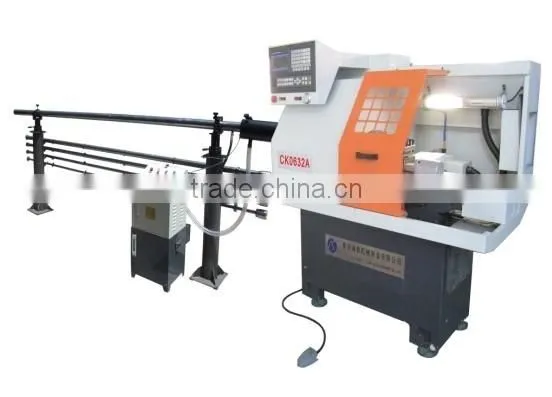

CNC micro lathe machine Price and Specification CK0632A with auto feeder

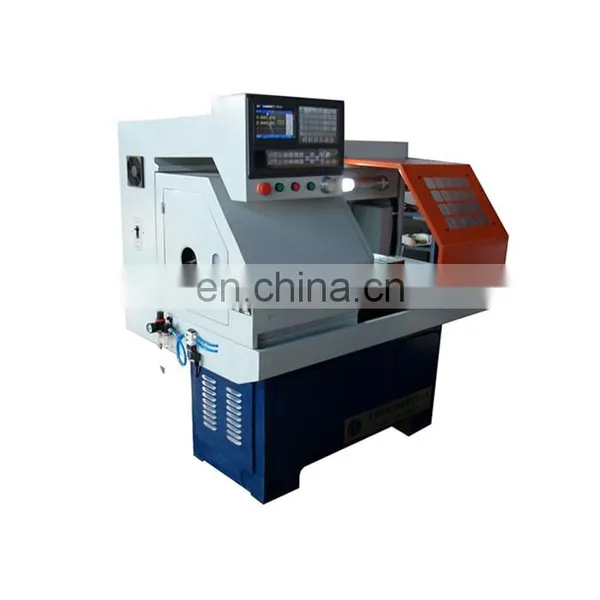

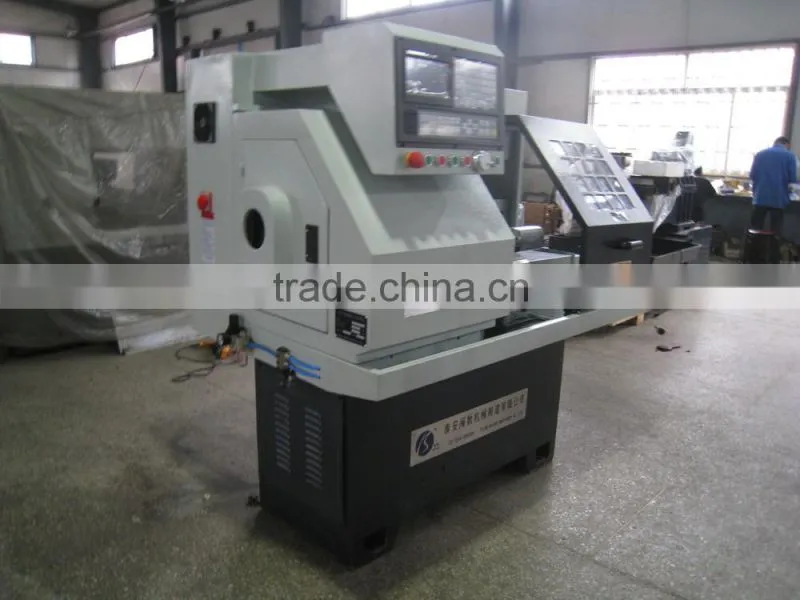

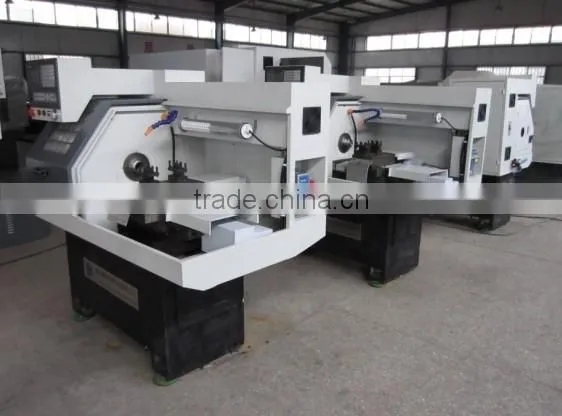

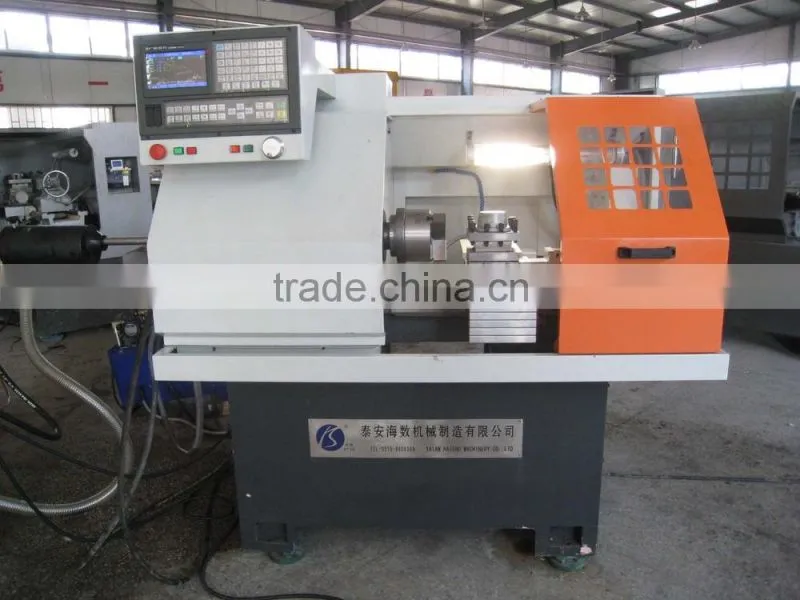

CK0632A CNC Small lathe
Standard configuration:
CNC system: GSK928,

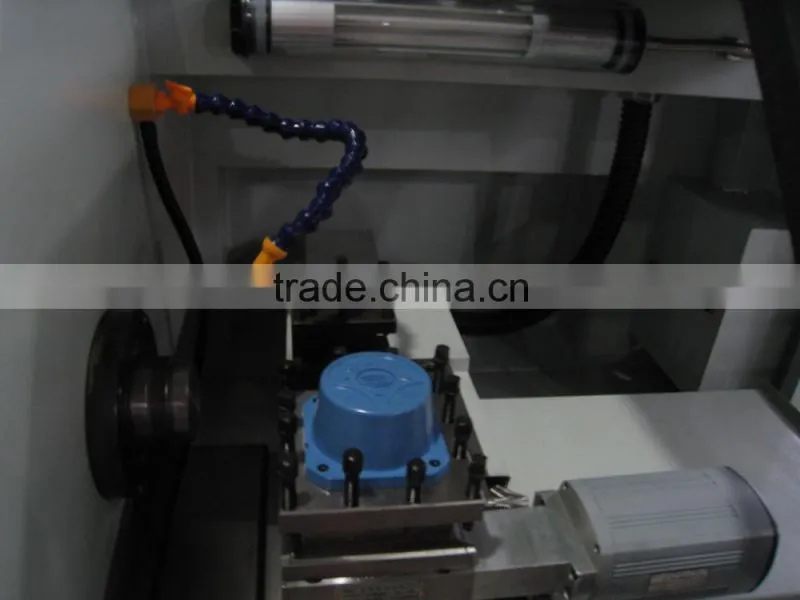

Pneumatic collet,
Tool row,

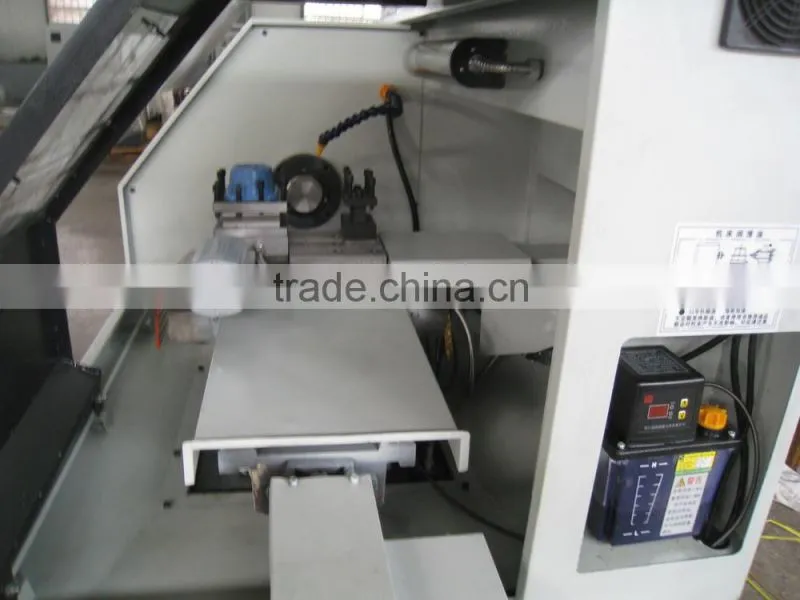

Automatic lubrication system,
Turning cooling system.
Select configure
CNC system: GSK980, KND, Siemens, Fanuc, etc.,

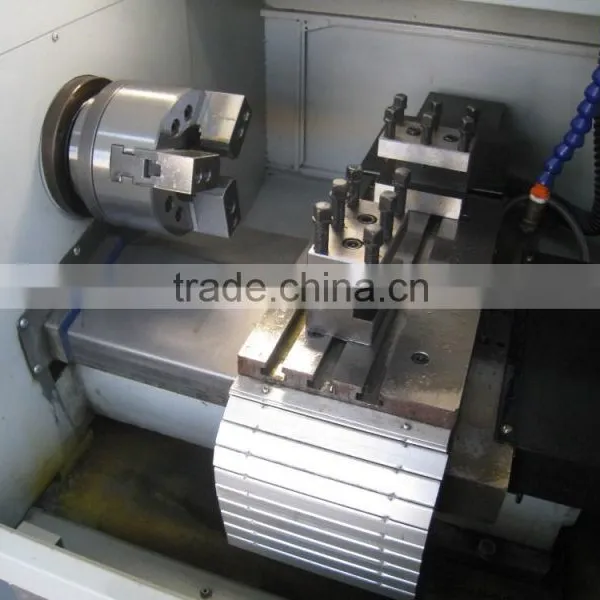

Manual chuck, pneumatic chuck, hydraulic chuck (solid and hollow),
Manual tailstock, pneumatic tailstock, hydraulic tailstock,

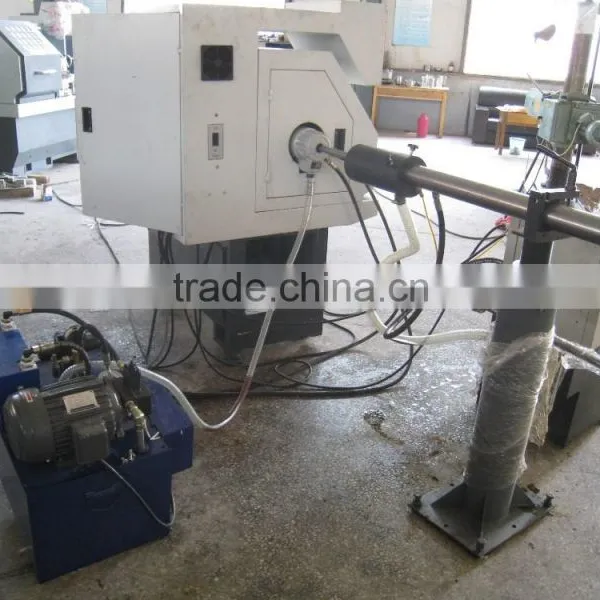

Automatic feeder,
Vertical four-station turret.
Item | Unit | Specifications | |
CK0632A | |||
Max. rotation diameter over bed | mm | Φ230 | |
Max. rotation diameter over pallet | mm | Φ80 | |
Max. workpiece length | mm | Collet 200/Chuck120 | |
Spindle head form |
| A2-5 | |
Spindle bore | mm | Φ40 | |
Trombone hole diameter | mm | Φ32 | |
With of bed | mm | 260 | |
X/Z repeat positioning accuracy | mm | 0.012/0.013 | |
X/Z maximum stroke | mm | 260/240 | |
X/Z fast-moving feed | mm/min | 5000/8000 | |
Spindle speed range | r/min | 150-2200 | |
Main motor power | kw | 3 | |
Overall dimensions (L×W×H) | mm | 1550×1000×1500 | |
Net weight | kg | 950 |
a. The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.
b. Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
c. The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
d. X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.
e. Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.
f. Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
3. Application
The machine can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.
