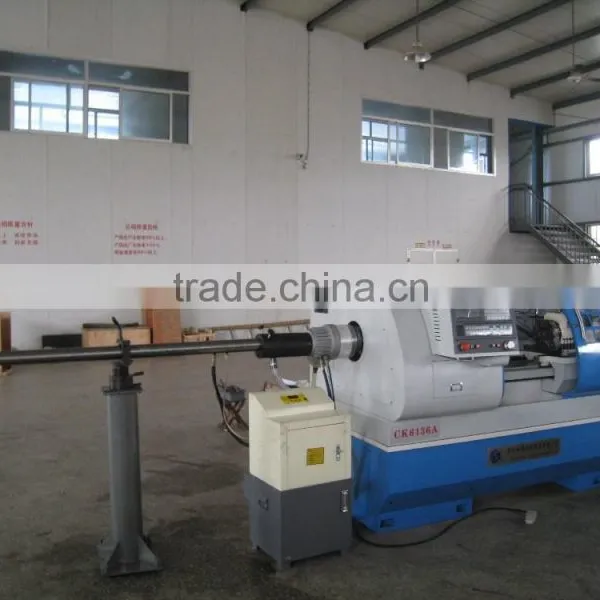

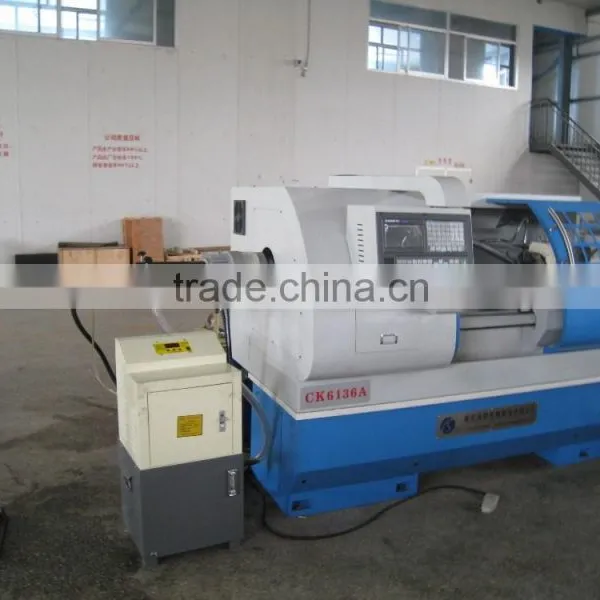

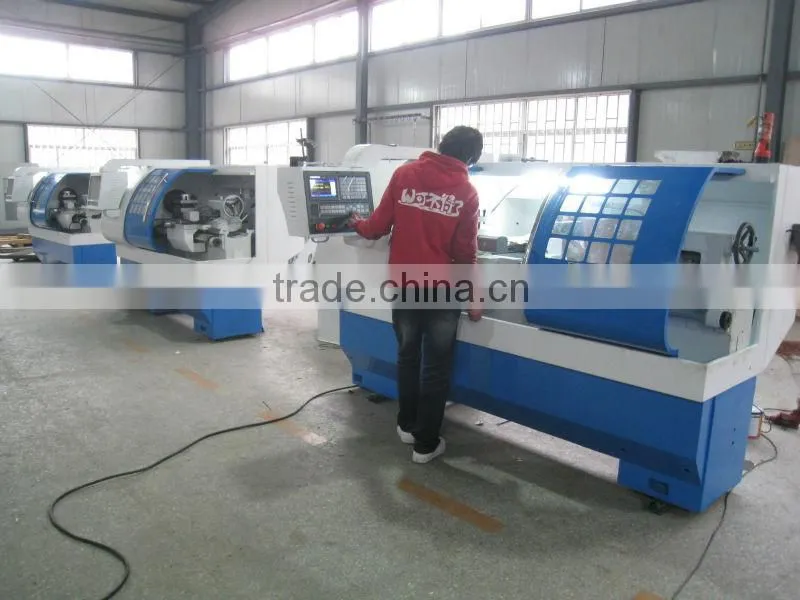

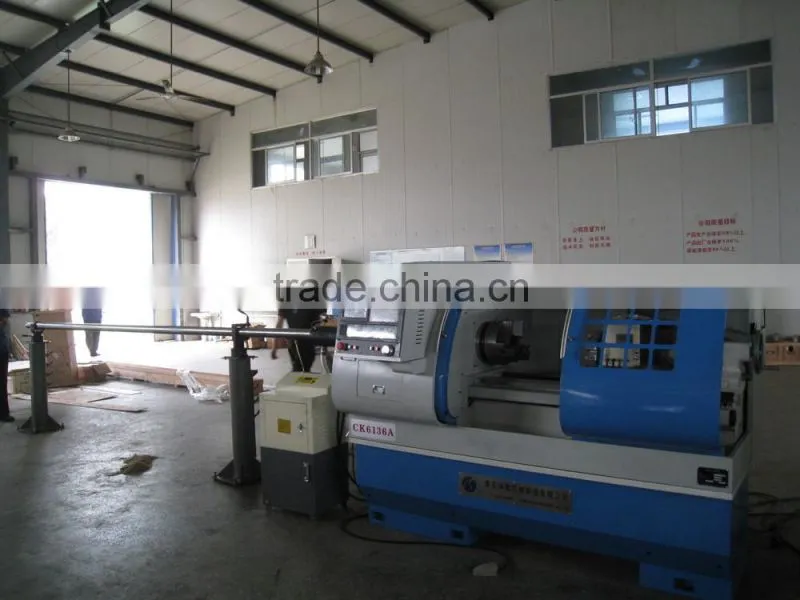

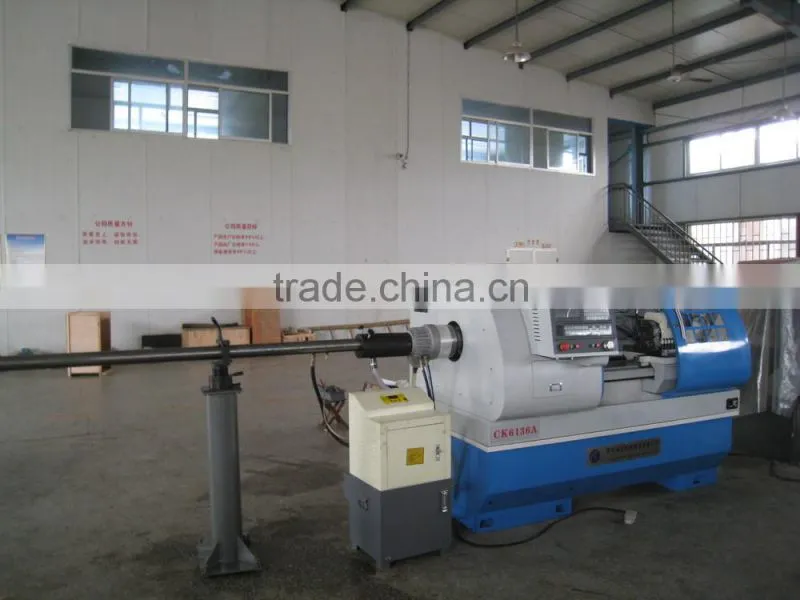

CK6136A CNC Machine Price List alimentador de la barra torno cnc
Item |
Project name |
Technical paramaters |
CK6136A | ||
technical specifications |
Max.swiming over the bed dia. (mm) |
Φ360 |
Max.swiming over pallet(mm) |
Φ245 |
|
Max.the workpiece length(mm) |
1000 |
|
|
Main transmission |
Main transmission form |
Independent spindle, stepless frequency conversion timing |
Number of spindle speeds |
stepless |
|
Range of spindle speed(r/min) |
200~2500 |
|
Spindle centering axial taper |
MT6 |
|
Chuck size(mm) |
Φ250 |
|
The nose type |
No.6, A2 |
|
Spindle bore(mm) |
60mm |
|
Main motor power(kw) |
5.5kw |
|
|
Feed system |
Turret maximum stroke(mm) |
X - axis: 300 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
|
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
|
Workpiece accuracy |
IT6-IT7 |
|
Workpiece surface roughness |
Ra1.6 |
|
|
tailstock |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
120 |
|
Taper of tailstock quill |
MT4 |
|
|

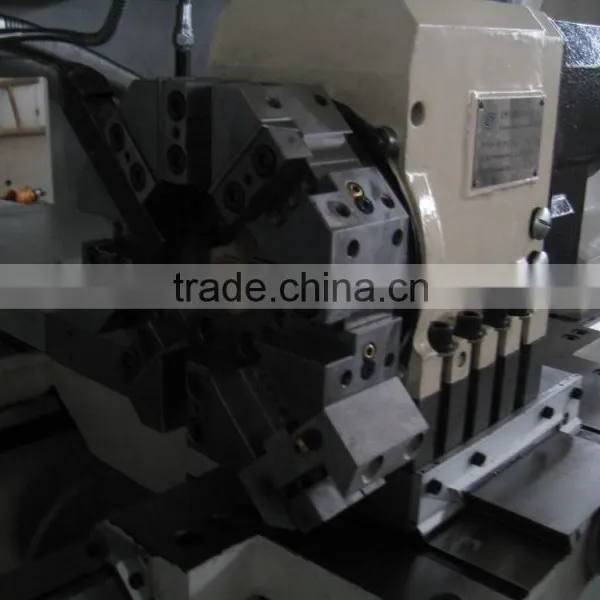

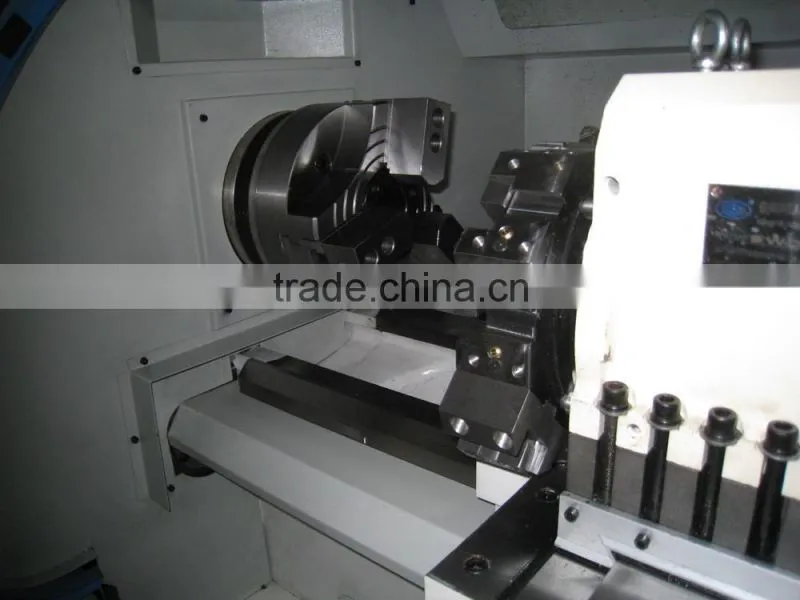

Tool post |
Standard accessories |
4 station electric tool |
Opinional accessories |
6 tool post or 8 tool post |
|
Repeat positioning accuracy(mm) |
0.008 |
|
Section of turning tool(mm) |
20*20 |
|
|
Size and weight |
The size of the machine (length*width*height)(mm) |
2150*1450*1650 |
Net weight of the machine(kg) |
1800 |
1.CNC system :GSK928
2. 4-position tools
3.Automatic lubrication pump
4. Manual 3-jaw chuck
5.Manual tailstock
olant system, lighten system
8.operation manual
9.unit tools box
10.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
