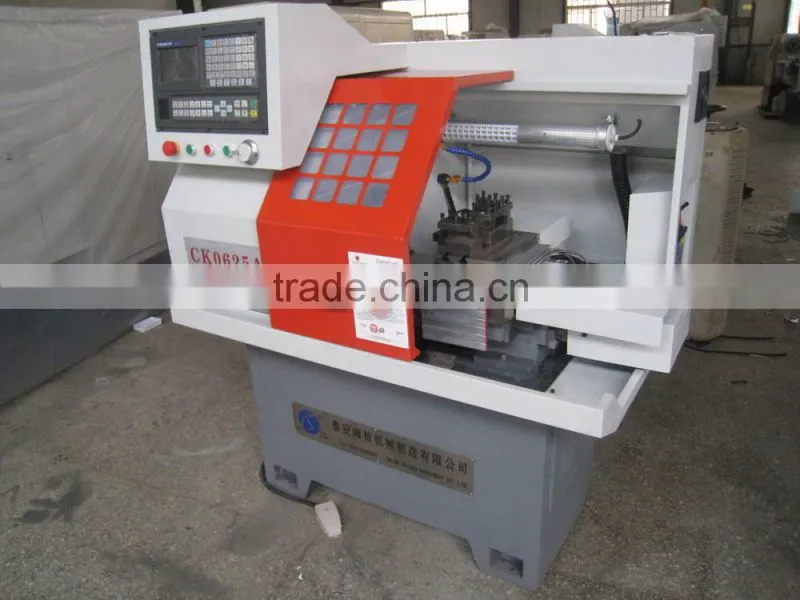

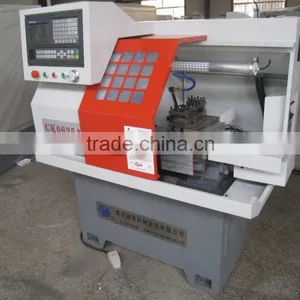

Mini CNC Lathe Machine Price and Specification CK0625A
A.Specifications:
1.row tools or chuck
llets for lathe
3.bar feeder-oil bath type
4.GSK KND FANUC ——cnc system
optional configurations:
CNC system: GSK980, KND, Siemens, Fanuc, etc.,
Manual chuck, pneumatic chuck, hydraulic chuck (solid and hollow),
Manual tailstock, pneumatic tailstock, hydraulic tailstock,
Automatic feeder,
Vertical four-station turret.
B.Features
CK0625A CNC lathe used mechanical and electrical integration design, have beautiful shape, reasonable structure, convenient operation, wide applications, convenient operation, a machine can realize until advantage, multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting, with perfect S/T/M function, can give and receive multiple signal, automatic control processing program.
C. technical parameter:
Item |
Unit |
Specifications |
|
CK0625A | |||
Max. rotation diameter over bed |
mm |
Φ160 |
|
Max. rotation diameter over pallet |
mm |
Φ60 |
|
Max. workpiece length |
mm |
Collet 120 |
|
Spindle bore |
mm |
Φ33 |
|
Trombone hole diameter |
mm |
Φ25 |
|
Machine width |
mm |
220 |
|
X/Z repeat positioning accuracy |
mm |
0.012/0.013 |
|
X/Z maximum stroke |
mm |
200/180 |
|
X/Z fast-moving feed |
mm/min |
5000/8000 |
|
Spindle speed range |
r/min |
150-2200 |
|
Main motor power |
kw |
2.2 |
|
Overall dimensions (L×W×H) |
mm |
1500×950×1500 |
|
Net weight |
kg |
850 |
|
D machine details inside
machine with pneumatic collet and gang type tool carrier
