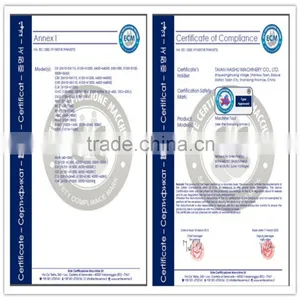

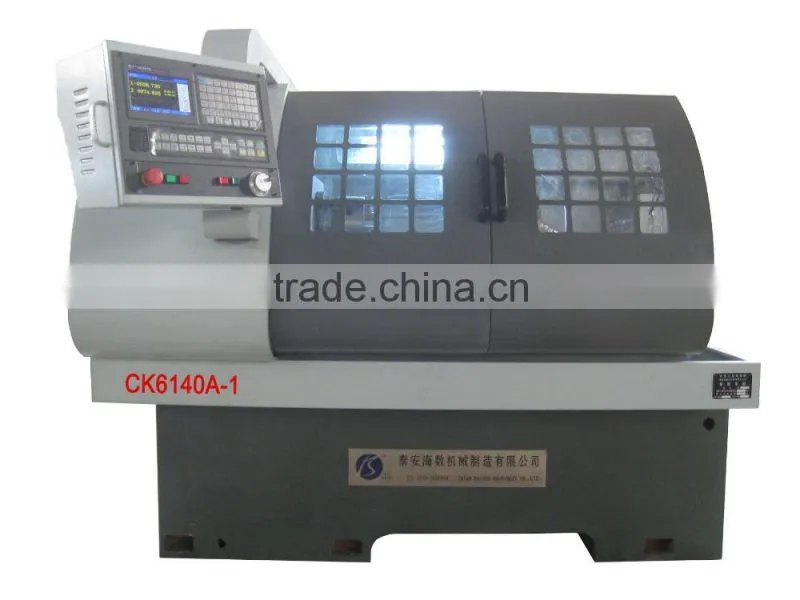

CK6140A-1 CNC lathe with certificate of CE good quality and low price
Standard configuration:
CNC system: GSK928
Manual chuck
Manual tailstock
Vertical four-station electric turret
Automatic lubrication system
Turning the cooling system
Selected configuration
CNC system: GSK980, KND, Siemens, Fanuc
Hydraulic chuck (solid and hollow), pneumatic chuck
Hydraulic tailstock, pneumatic tailstock
Automatic feeder
Horizontal six-station turret, eight-station turret, tool row
Item |
Unit |
Technical parameters |
CK6140A-1 | ||
Max. rotation diameter over bed |
mm |
φ400 |
Max. rotation diameter over pallet |
mm |
φ245 |
Max. workpiece length |
mm |
750 |
Bed foot structure |
|
Overall bed foot |
Bed width |
mm |
330 |
Main transmission form |
|
Independent spindle |
Spindle speed mode |
|
Frequency stepless speed |
Spindle speed range |
r/min |
200-2500 |
Spindle head form |
|
6-A2 |
Spindle bore |
mm |
φ60 |
Spindle hole outside taper |
|
MT6 |
Chuck diameter |
mm |
φ250 |
Main motor power |
kw |
5.5 |
Turret maximum stroke |
mm |
X: 260 Z: 760 |
Fast-moving feed |
mm/min |
X: 6000 Z: 8000 |
Repeat positioning accuracy |
mm |
X: 0.01 Z: 0.015 |
Workpiece accuracy |
|
IT6-IT7 |
Workpiece surface roughness |
|
Ra1.6 |
Dia. of tailstock quill |
mm |
φ60 |
Tailstock quill stroke |
mm |
120 |
Taper of tailstock quill |
|
MT4 |
Repeat positioning accuracy |
mm |
0.008 |
Section of turning tool |
mm |
25x25 |
Size (LxWxH) |
mm |
2100x1400x1650 |
Net weight |
kg |
2000 |
Wooden case or as per clients' requirements.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
Taian Haishu Machinery Co., Ltd. is a modern High-tech enterprise integrating design, manufacture and sale. Our company has two business departments: one is CNC department whose leading products are CNC Lathes, machining centers and other products and the other is test bench equipment department whose leading products are fuel injection pump test stands, High-pressure common rail injection system test benches, etc.
Our company has a professional technology team of product design/development and software development/application. Our team adopts 3-dimensional CAD computer-aided design equipment and PDM document management for equipment automation and management informatization. Our company passed ISO9001:2008 international quality system authentication. Our company has been awarded many honorary titles, such as "New Hi-Tech Enterprise". Our products have been widely used in automotive industry, military equipment, scientific research and universities' labs.
With high quality and innovative technology, our products always rank at the forefront among other similar products. Meanwhile, our products win great popularity not only in domestic markets but also in overseas markets.
