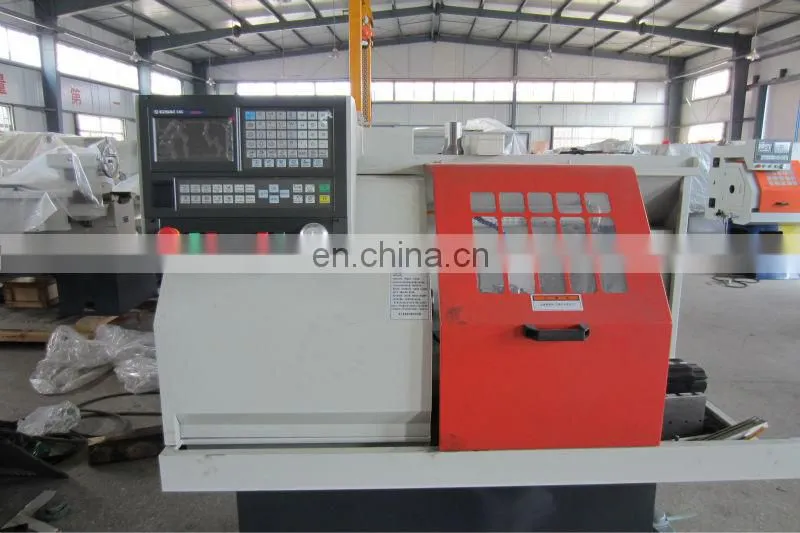

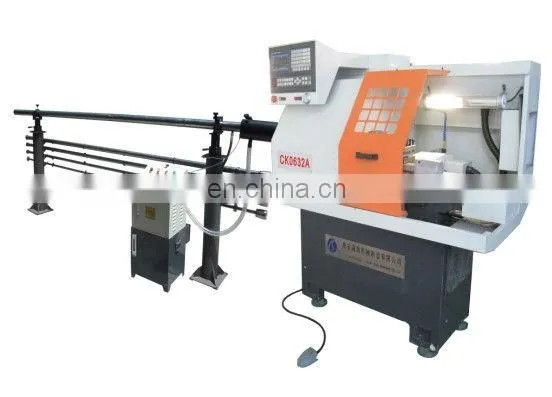

CK0632 mini cnc lathe machine for metal
Model:CK0632A
Features: CK0632A CNC lathe used mechanical and electrical integration design, have beautiful shape, reasonable structure, convenient operation, wide applications, convenient operation, a machine can realize until advantage, multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting, with perfect S/T/M function, can give and receive multiple signal, automatic control processing program

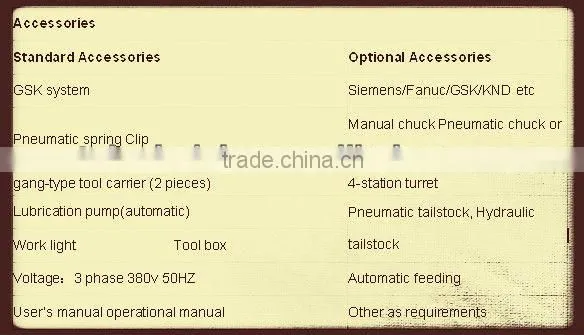

Opitional accessories:

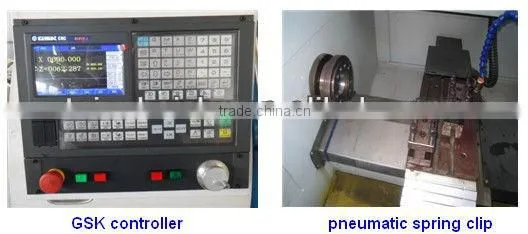

(1) the controller system: GSK (Guangzhou), KND (Beijing), Guangtai, Simens (Germany), Fanuc (Japan)
(2) Spring chuck: manual, pneumatic
(3) Chuck optional: manual, pneumatic or hydraulic chuck.
(4) Tailstock optional: manual, pneumatic, hydraulic.
(5) Turret optional: Vertical four, horizontal six, horizontal eight,gang-type tool carrier and ect

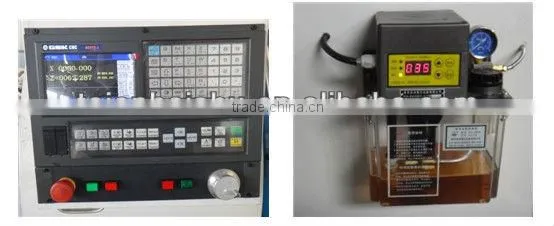

(6) Lubrication configuration: automatic lubrication system.
About CK0632A Main Specification
Items |
Specifications |
|
Max.swing over bed |
φ260mm |
|
Max.swing over carriage |
Φ80mm |
|
Through-hole diameter of spindle(mm) |
Φ40 |
|
Through-hole diameter of drawn pipe(mm) |
Φ32 |
|
Spindle nose |
A2-5 |
|
Max processing lengthe mm |
Clip 200mm,chuck 120mm |
|
X-axis fast moving speed |
5000mm/min |
|
Z- axis fast moving speed |
8000 mm/min |
|
Range of spindle speed |
150~2200/mmmin |
|
X axis travel(mm) |
260 |
|
Y axis travel(mm) |
240 |
|
Stations of tool carrier |
gang-type tool carrier |
|
Power of the main drive motor |
3KW |
|
Overall dimensions(L×W×H) |
1550×1000×1500 |
|
Net weight |
950 kg |
|
