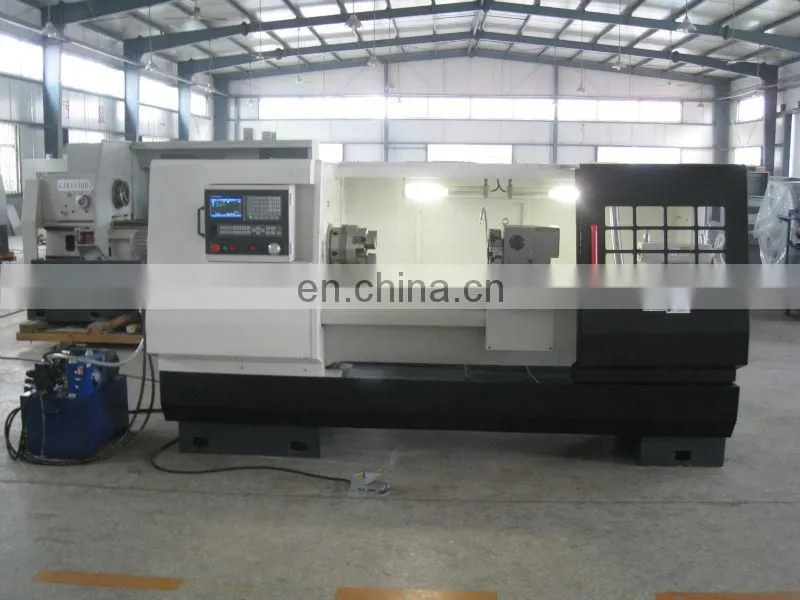

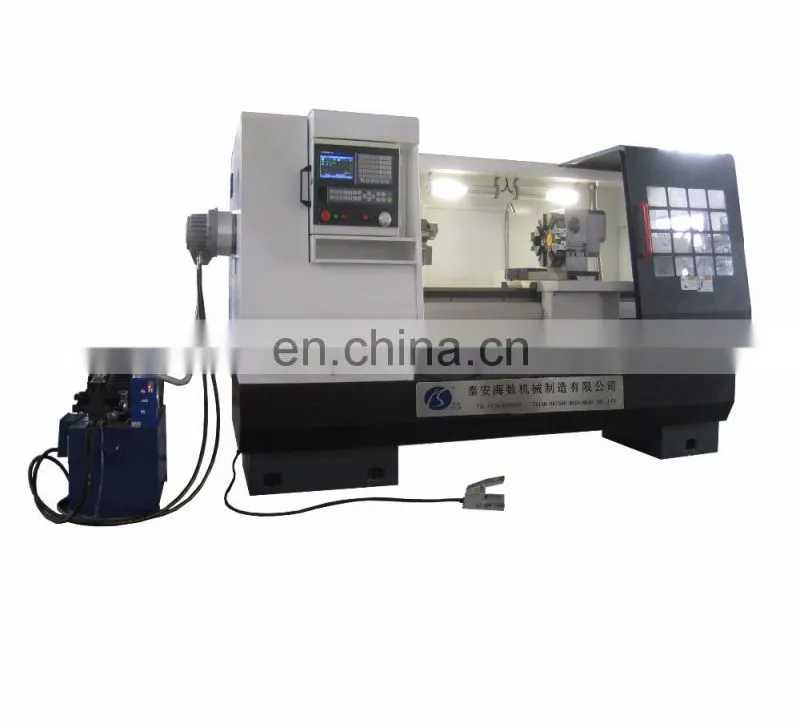

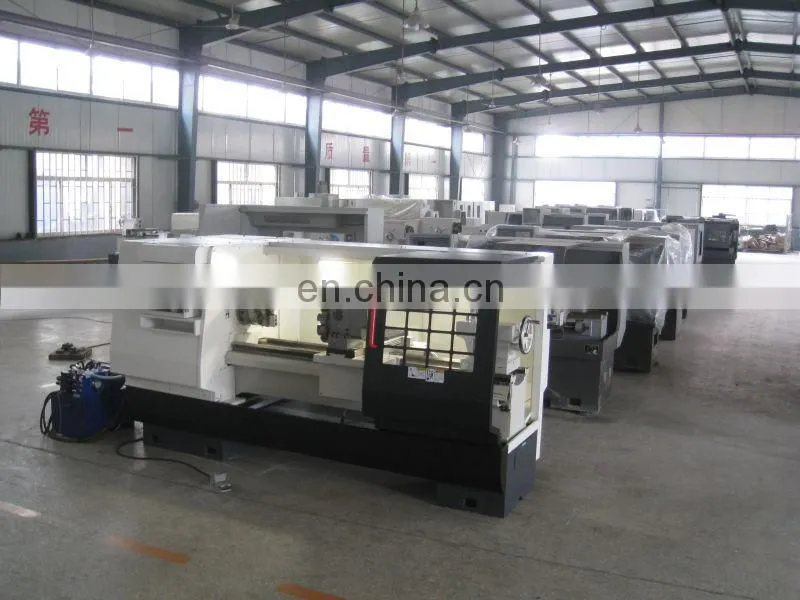

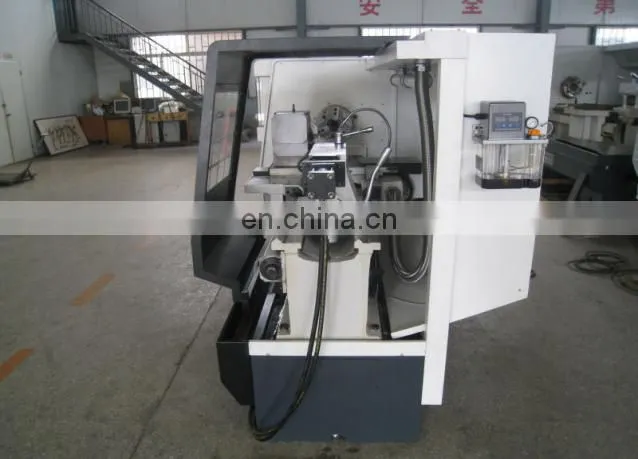

CJK6150B-3 horizontal type cnc lathe machine
nical paramater
items |
parameters |
Maximum workpiece swing diameter over bed |
Φ500mm |
slide the maximum workpiece swing diameter |
Φ290mm |
Maximum length of workpiece |
750/1000/1500mm |
Range of spindle speeds |
20-100;100~550;400~1600rpm |
Spindle bore diameter |
Φ82mm |
Skateboard maximum stroke (X) |
290mm |
Width of guide rails |
390mm |
The form of spindle head |
D-8 |
Taper of spindle bore |
1:20 |

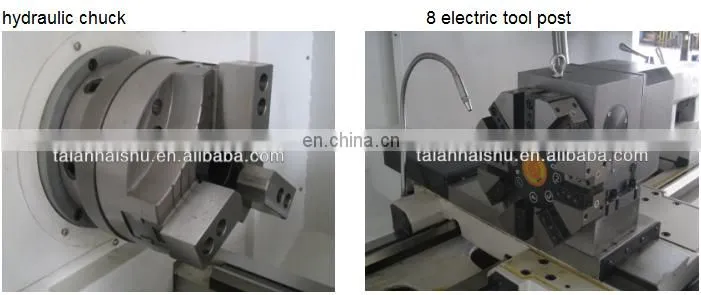

Turret Number of tool |
4/6/8/ or row of knife |
Tool cross-section specifications |
25mm×25mm |
Motor minimum setting unit |
Z: 0.001mm , X: 0.001mm |
Arbor fast forward speed |
Z: 10m/min, X: 8m/min |

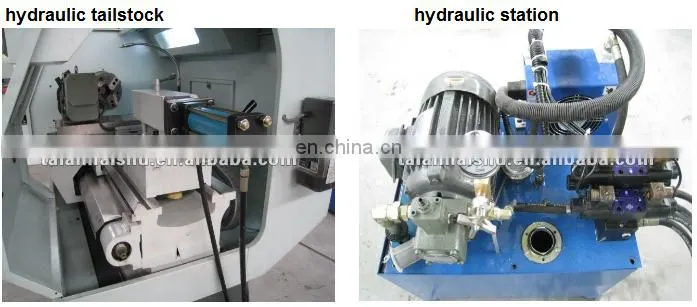

Tailstock quill taper |
MT5 |
Tailstock quill maximum moving distance |
150mm |
Power of main motor |
7.5KW |
The lathe Dimensions (L × W × H) |
2600/2850/3350 mm×1300 mm×1750mm |
Lathe Net |
2600/2800/3200kg |
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
