CK6140B×750 /1000 CNC Lathe

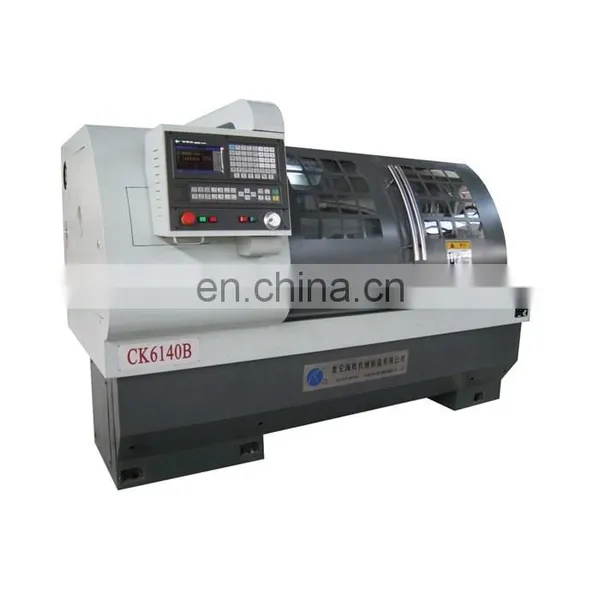

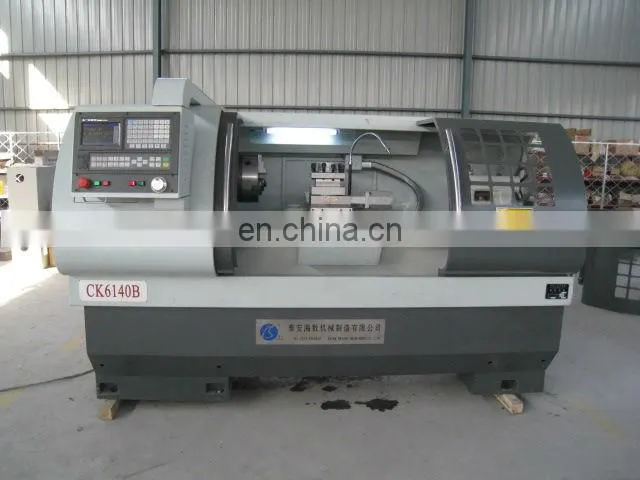

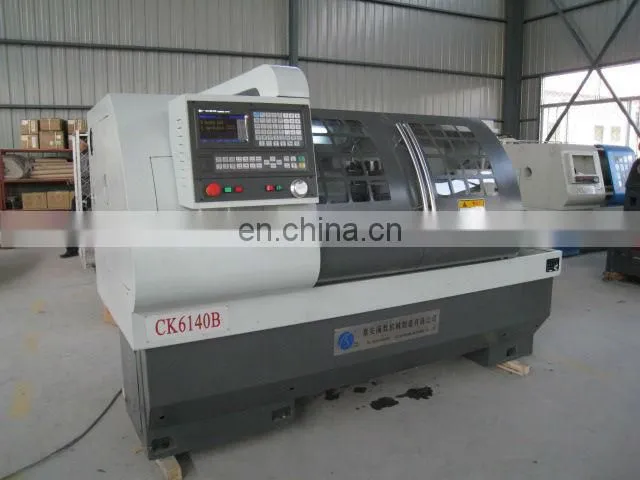

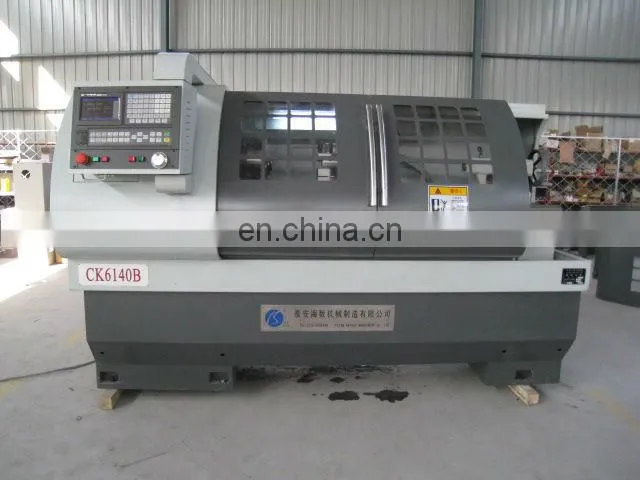

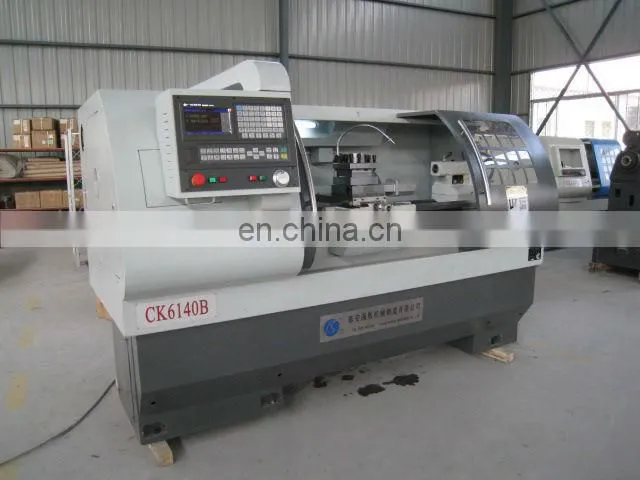

CK6140B CNC Lathe
Standard configuration:
CNC system: GSK928,
Manual chuck ,
Manual tailstock,

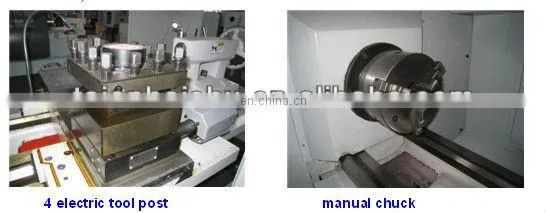

Vertical four-station electric turret,
Automatic lubrication system,
Turning the cooling system;
Select configure
CNC system: GSK980, KND, Siemens, Fanuc, etc.,
Hydraulic chuck (solid and hollow), pneumatic chuck,

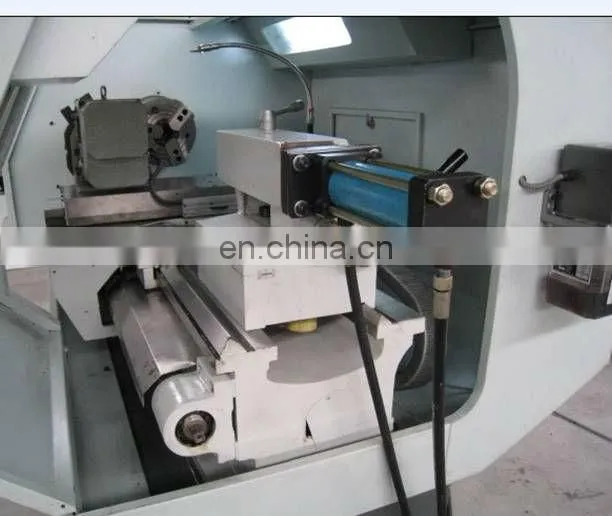

Hydraulic tailstock, pneumatic tailstock,
Automatic feeder,

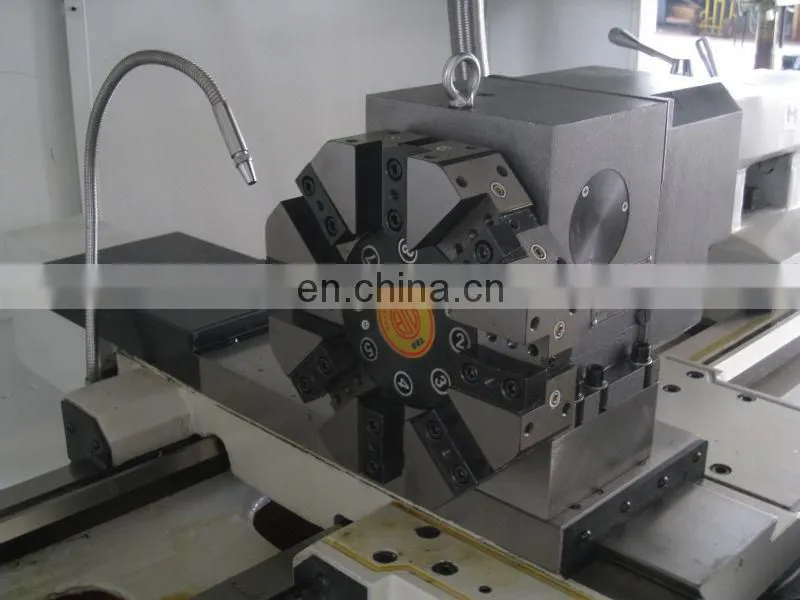

Horizontal six-station turret, eight-station turret, tool row.
Item |
Unit
|
Technical parameters CK6140B |
|
Max. rotation diameter over bed |
mm |
φ400 |
|
Max. rotation diameter over pallet |
mm |
φ245 |
|
Max. workpiece length |
mm
|
750/1000 |
|
Main transmission form |
|
Two gears |
|
Spindle speed mode |
|
Frequency stepless speed in gear |
|
Spindle speed range |
r/min |
60~1800 |
|
Spindle head form |
|
6-A2 |
|
Spindle bore |
mm |
φ48 |
|
Spindle hole outside taper |
|
MT6 |
|
Chuck diameter |
mm
|
φ250 |
|
Main motor power |
kw
|
5.5 |
|
Turret maximum stroke |
mm
|
X:260 Z:760/1020 |
|
Fast-moving feed |
mm/min
|
X:6000 Z:8000 |
|
Repeat positioning accuracy |
mm |
X:0.01 Z:0.015 |
|
Workpiece accuracy |
|
IT6-IT7 |
|
Workpiece surface roughness |
|
Ra1.6 |
|
Dia. of tailstock quill |
mm
|
φ60 |
|
Tailstock quill stroke |
mm
|
120 |
|
Taper of tailstock quill |
|
MT4 |
|
Repeat positioning accuracy |
mm |
0.008 |
|
Section of turning tool |
mm
|
25×25 |
|
Size(L×W×H) |
mm |
2420×1540×1650 |
|
Net weight |
kg
|
2000 |
|
2.Main features
1. Spindle brake way by electric brake

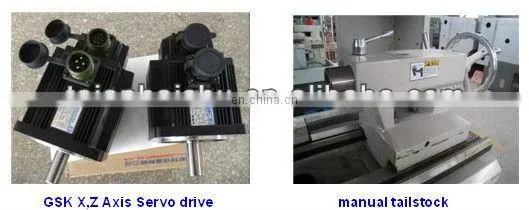

2.Feed of X.Z shaft are driven bu all screw with servo-motor or stepper motor
3.Imported or homemade CNC system
4.Rotary various workpiece surface automatically turning,precision maching
5.The boby of the lathe has good rigidity,the guide is treated by super audio quenching with high hardness,grinding the surface with high accuracy.
6.The carriage adopts plastic paste processing.wear small,high precision,long life.
7.Electronic hand wheel equipped,easy operation.
3.About our products
