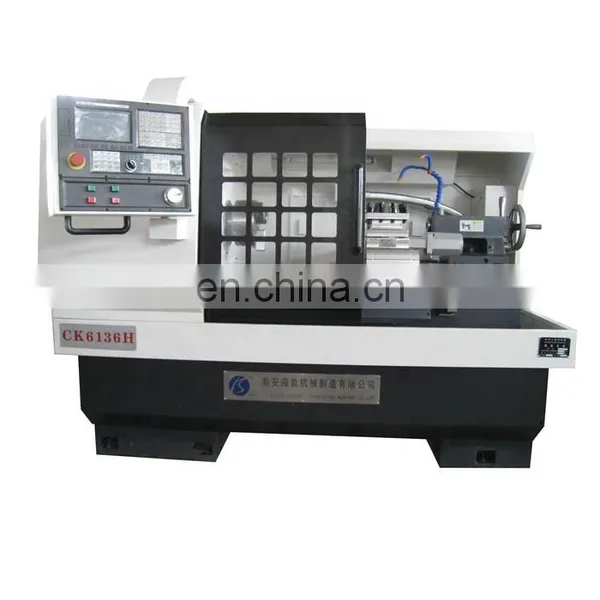

CK6136H Medium Size Cnc Lathes Machine Brand Manufacturer

CK6136H Medium Size Cnc Lathes Machine Brand Manufacturer photo-1

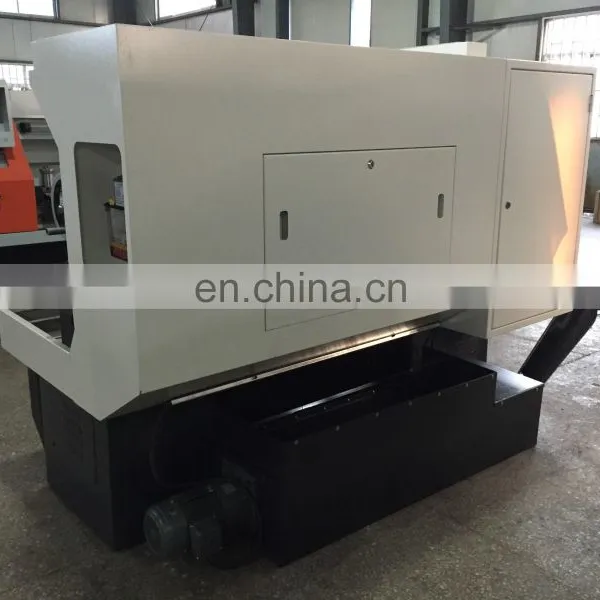

CK6136H Medium Size Cnc Lathes Machine Brand Manufacturer photo-2

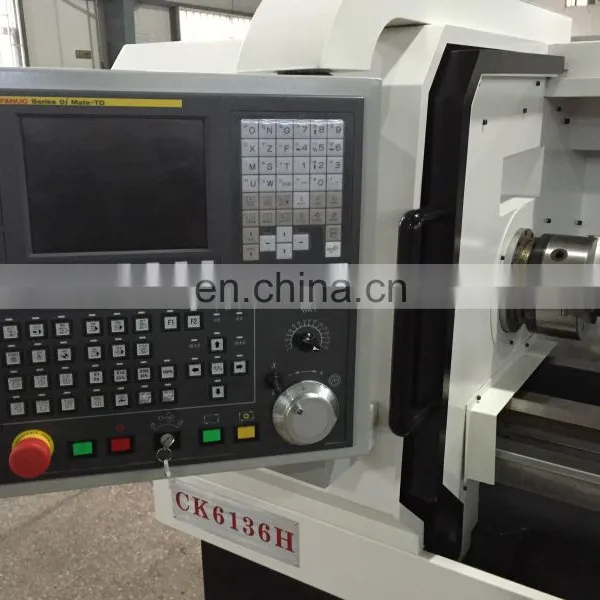

CK6136H Medium Size Cnc Lathes Machine Brand Manufacturer photo-3

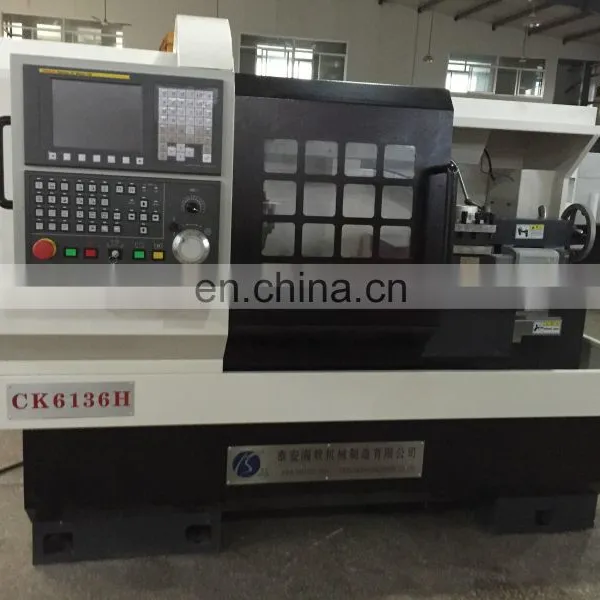

CK6136H Medium Size Cnc Lathes Machine Brand Manufacturer photo-4

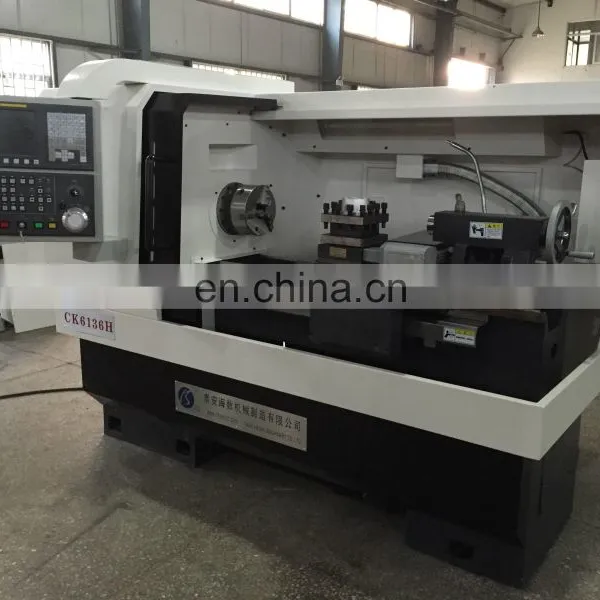

CK6136H Medium Size Cnc Lathes Machine Brand Manufacturer photo-5

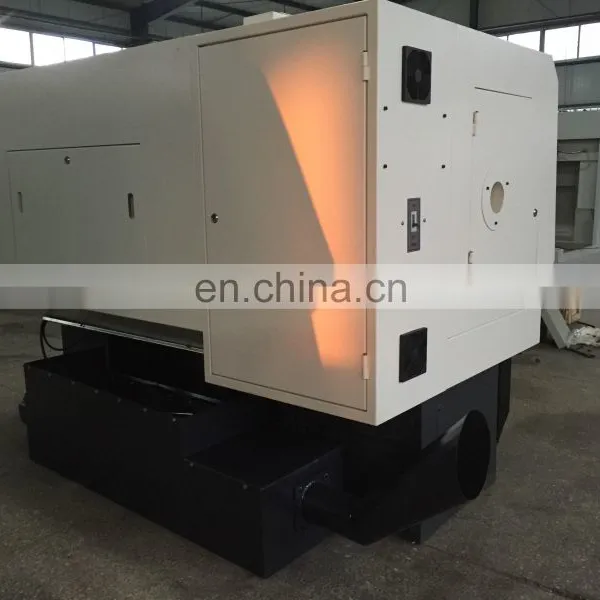

CK6136H Medium Size Cnc Lathes Machine Brand Manufacturer photo-6
US$ 7,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HaiShu
Place of Origin:
Shandong, China
Model Number:
CK6136H cnc lathe
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name HaiShu
Place of Origin Shandong, China
Model Number CK6136H cnc lathe
Condition New
Product Description

CK6136H Medium Size cnc Lathes Machine Brand Manufacturer

Item
Unit
Technical parameters
Max. rotation diameter over pallet
mm
φ210
Max. workpiece length
mm
750
Bed foot structure

Separate bed foot
Bed width
mm
335
Max. rotation diameter over bed
mm
φ400
Main transmission form

Independent spindle
Spindle speed mode

Frequency stepless speed
Spindle speed range
r/min
200-3000
Spindle head form

6-A2
Spindle bore
mm
φ58
Spindle hole outside taper

MT6
Chuck diameter
mm
φ200
Main motor power
kw
5.5
Turret maximum stroke
mm
X:260       Z:760
Fast-moving feed
mm/min
X:6000      Z:8000
Repeat positioning accuracy
mm
X:0.01       Z:0.015
Workpiece accuracy

IT6-IT7
Workpiece surface roughness

Ra1.6
Dia. of tailstock quill
mm
φ60
Tailstock quill stroke
mm
120
Taper of tailstock quill

MT4
Repeat positioning accuracy
mm
0.008
Section of turning tool
mm
20×20
Size(L×W×H)
mm
2150×1450×1650
Net weight
kg
1800

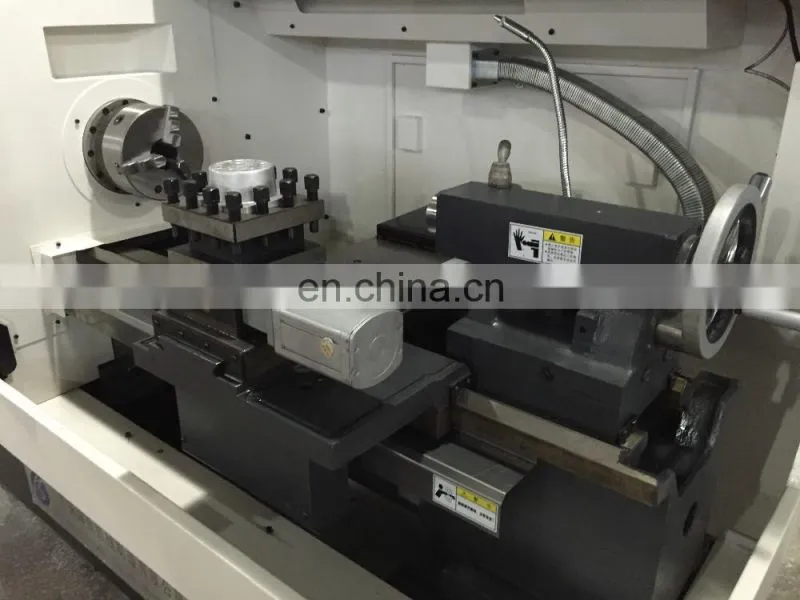

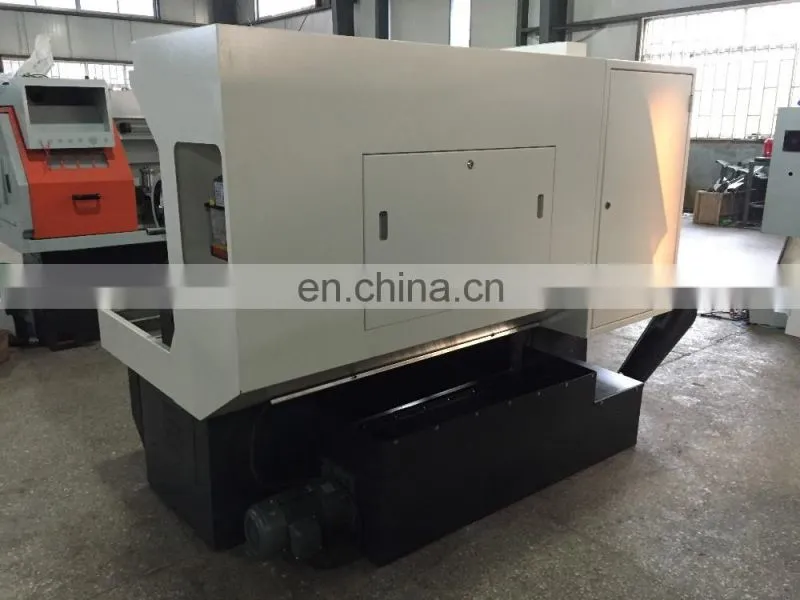

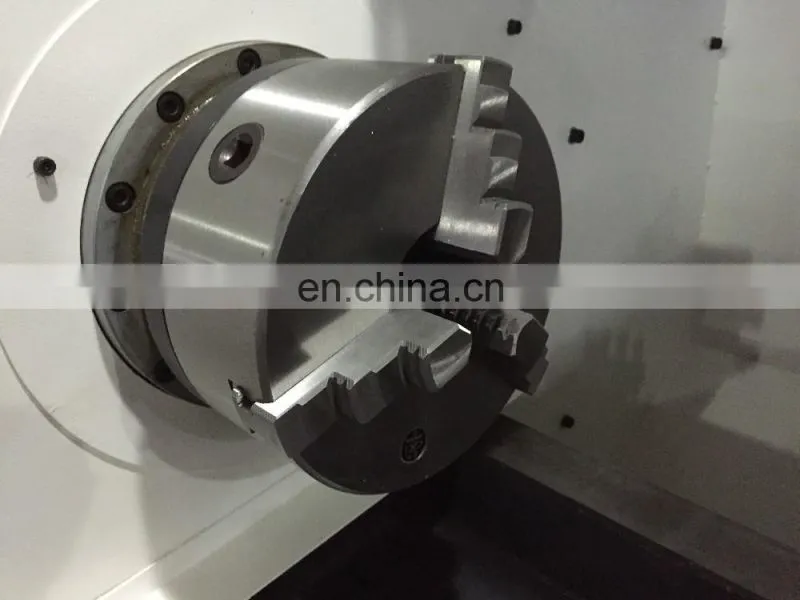

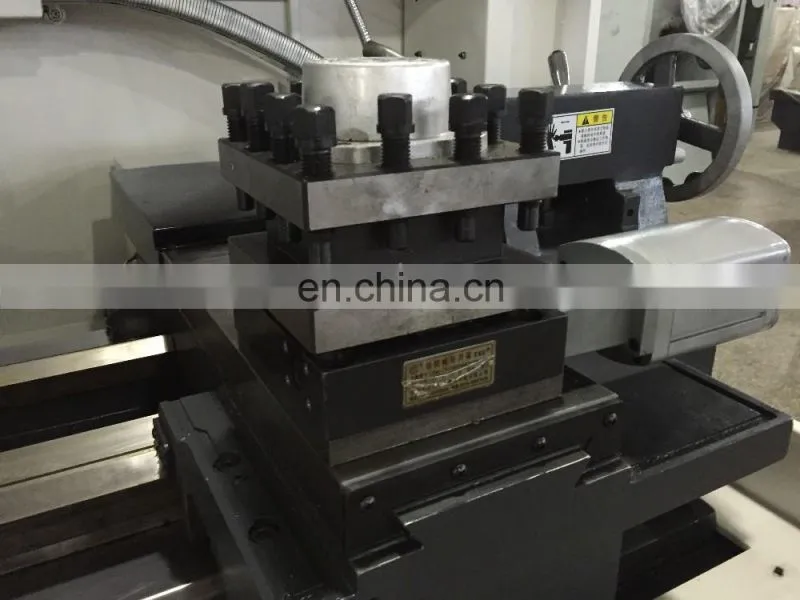

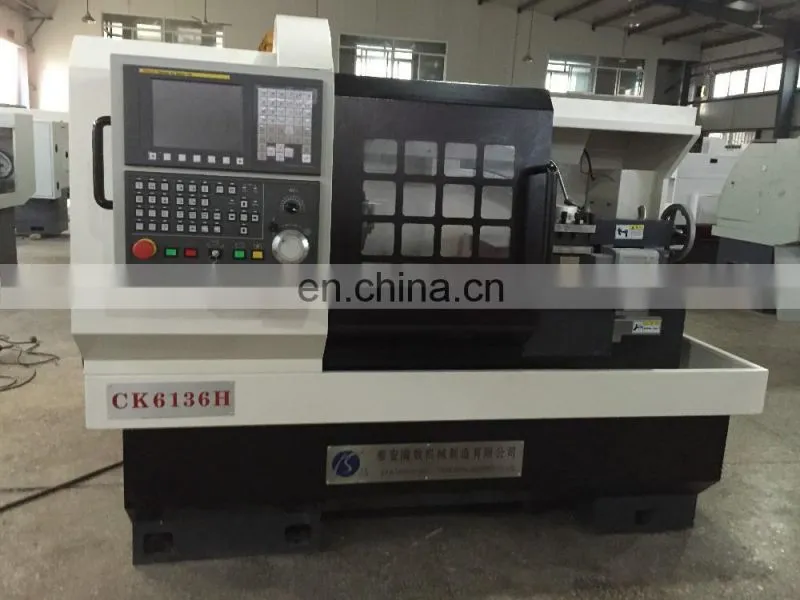

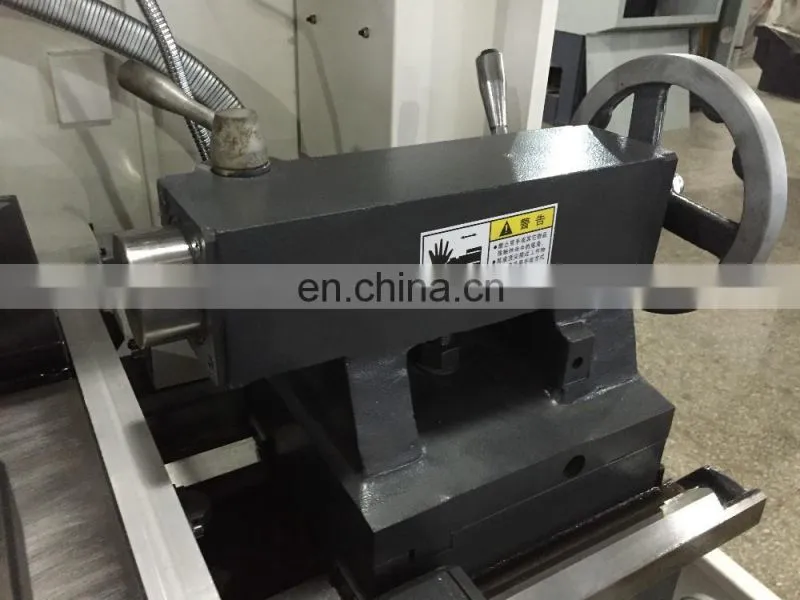

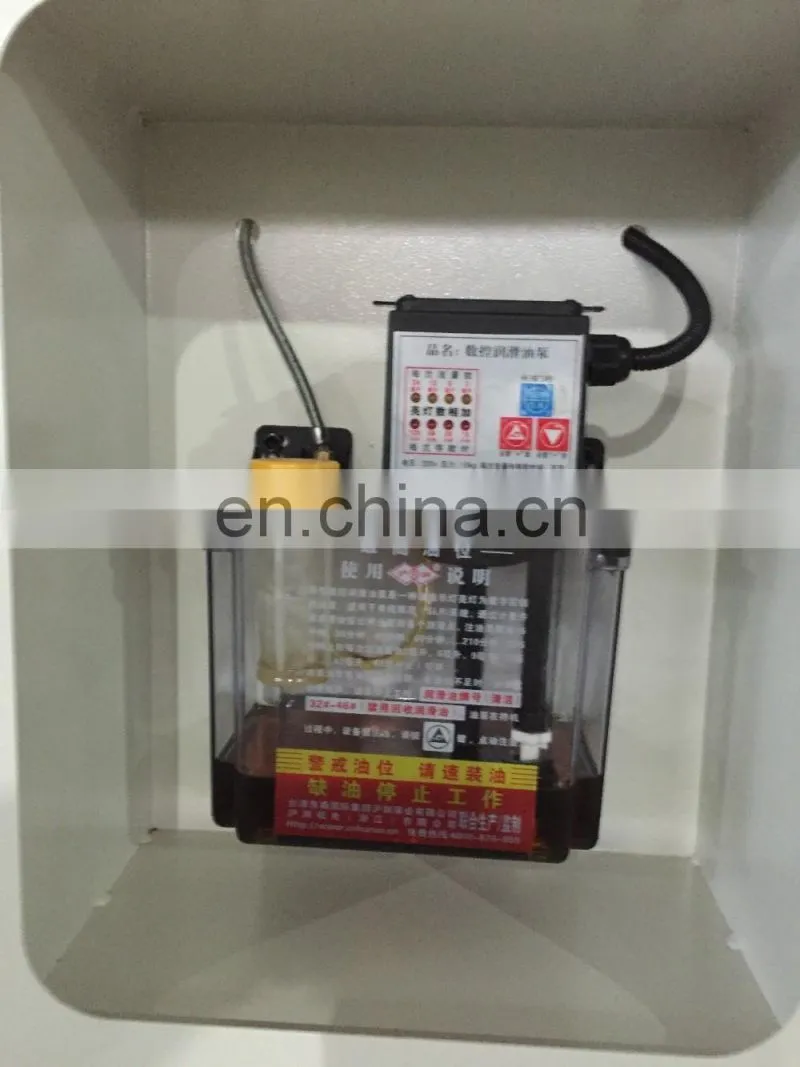

Detail pictures:

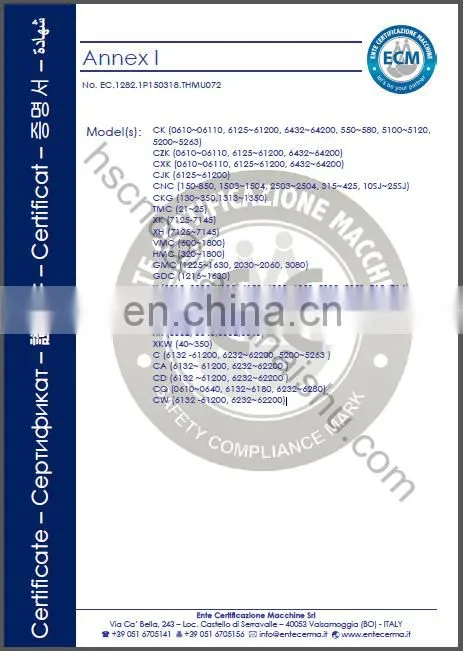

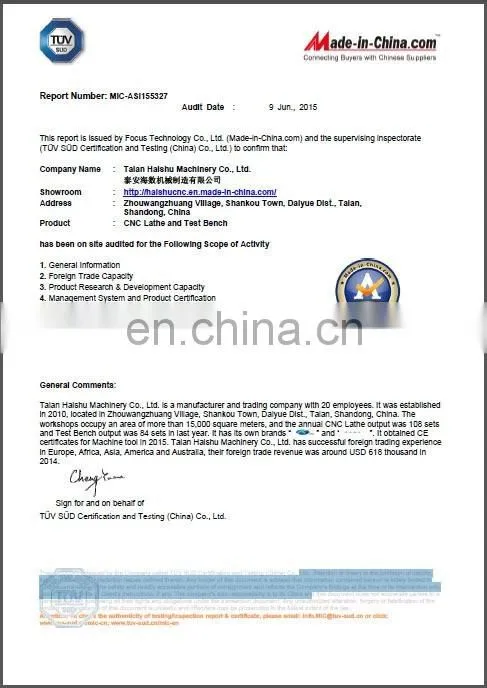

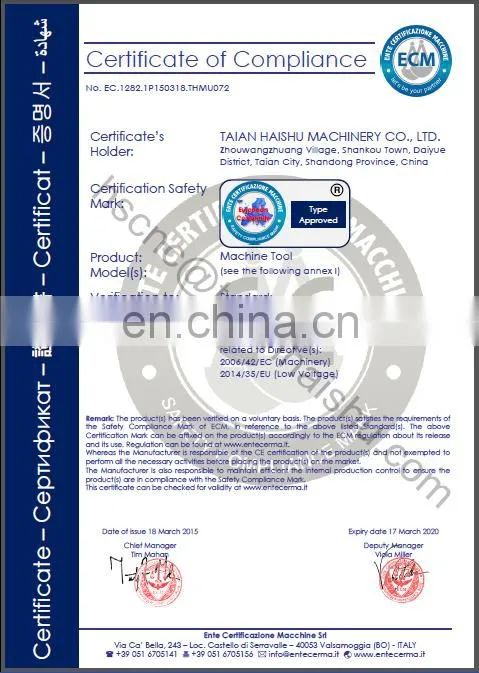

Certifications
Our Service

GUARANTEE AND AFTER-SALE SERVICES:

1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is welcome.

Packing & Delivery
Packaging
Size
2150 (L) * 1450(W) * 1650 (D)
Weight
2 T

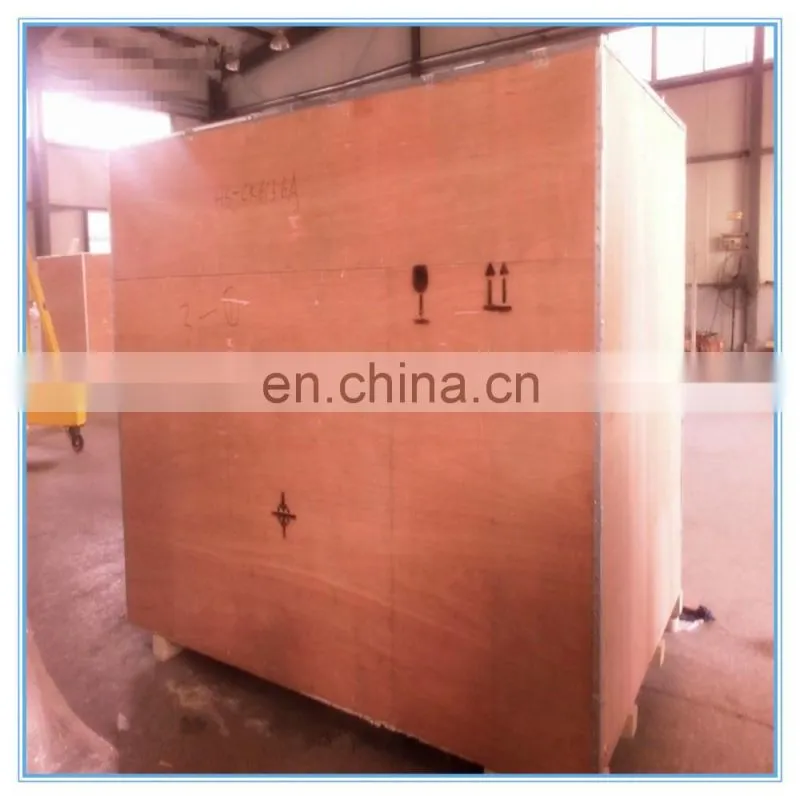

Packaging Details
Standard export packaging of CK6136H Medium Size cnc Lathes Machine Brand Manufacturer

Or packaging according to customer requirements
Related Products

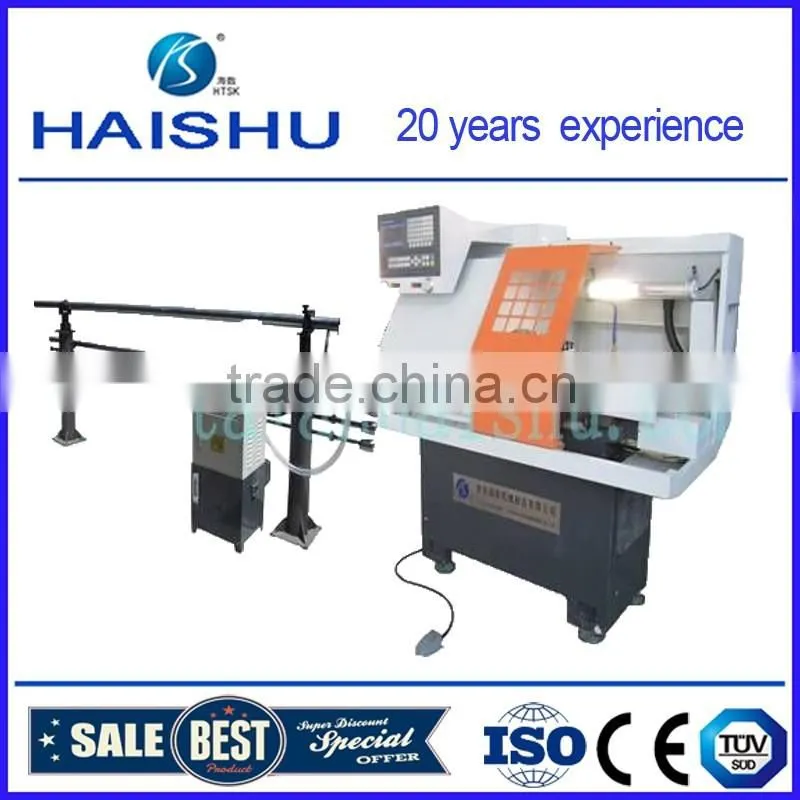

CK0640A mini cnc lathe

CK6150T cnc lathe

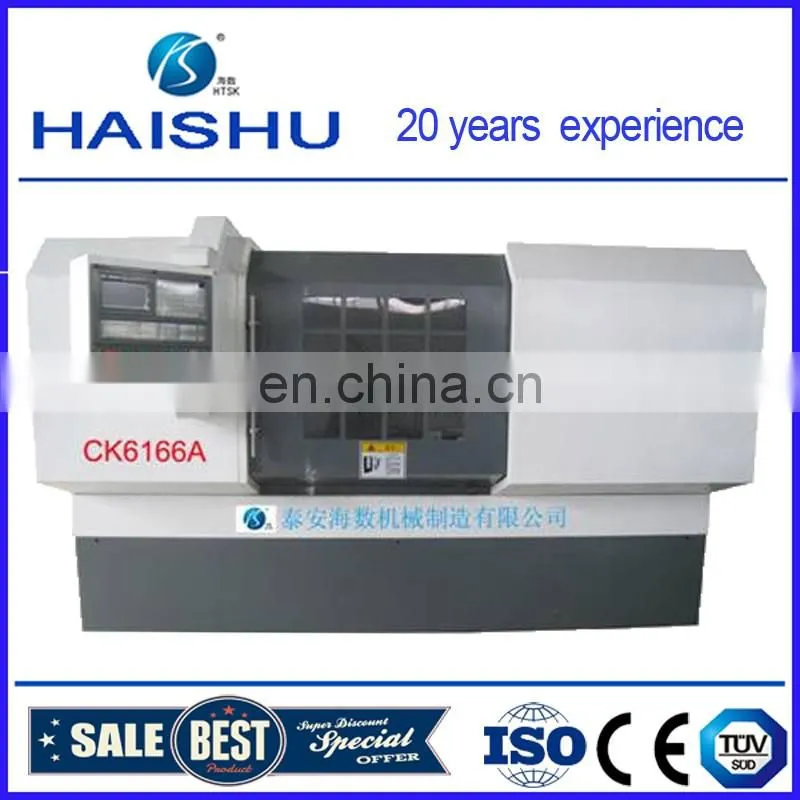

CK6166A wheel cnc lathe
