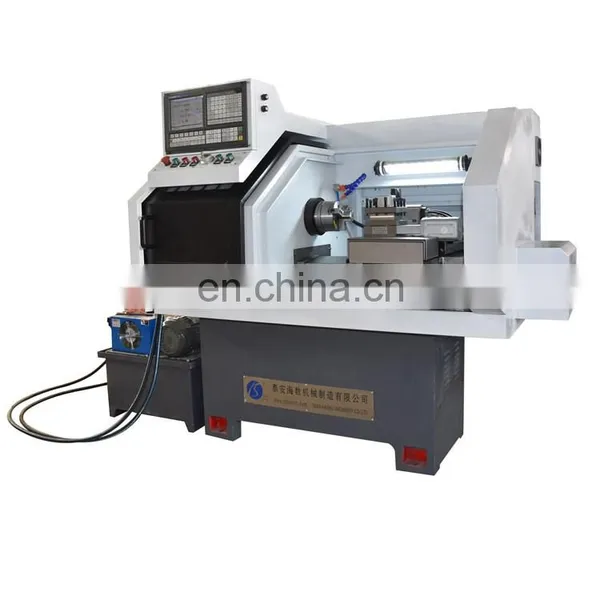

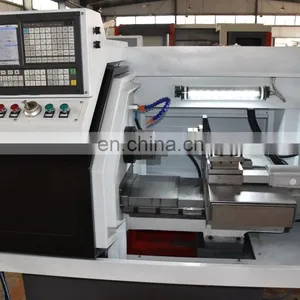

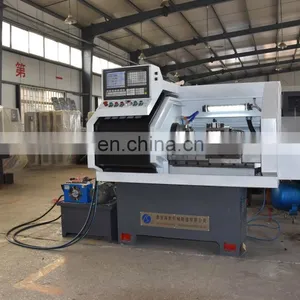

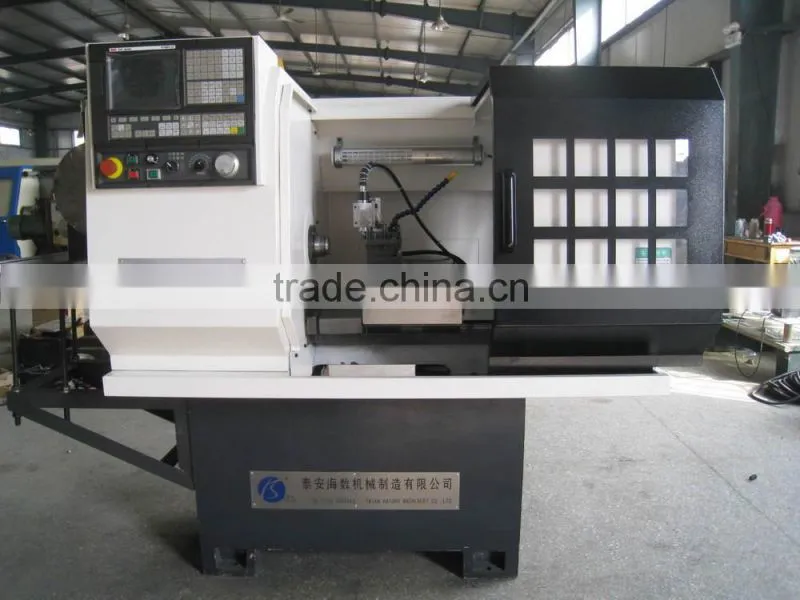

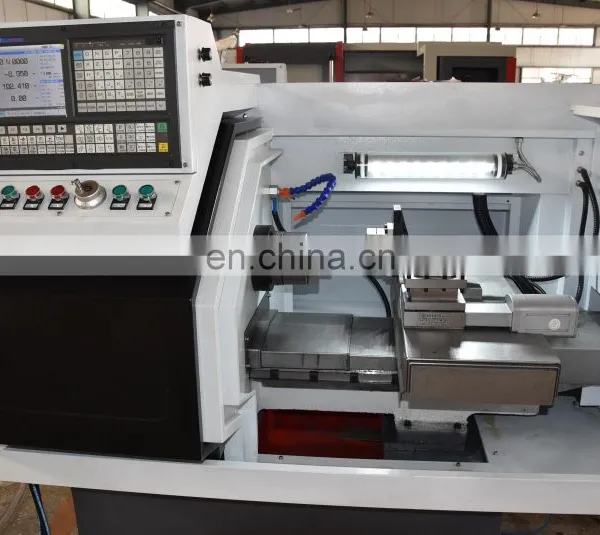

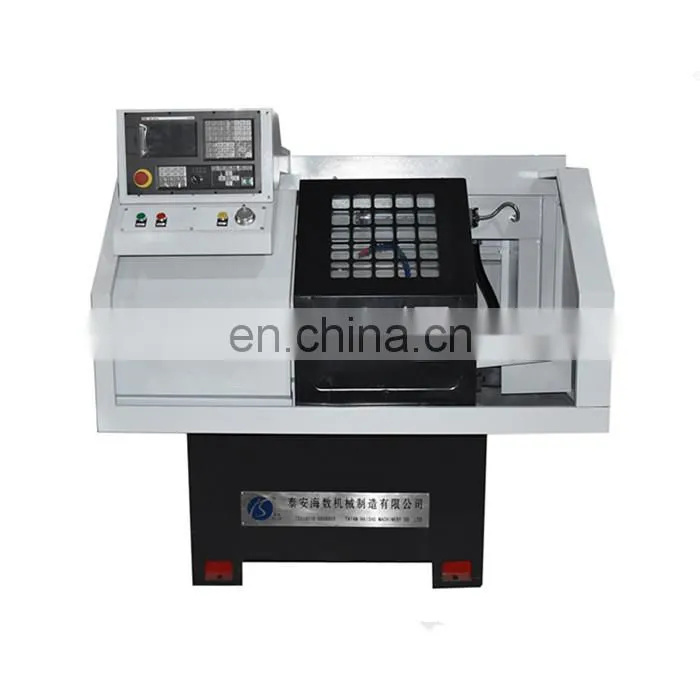

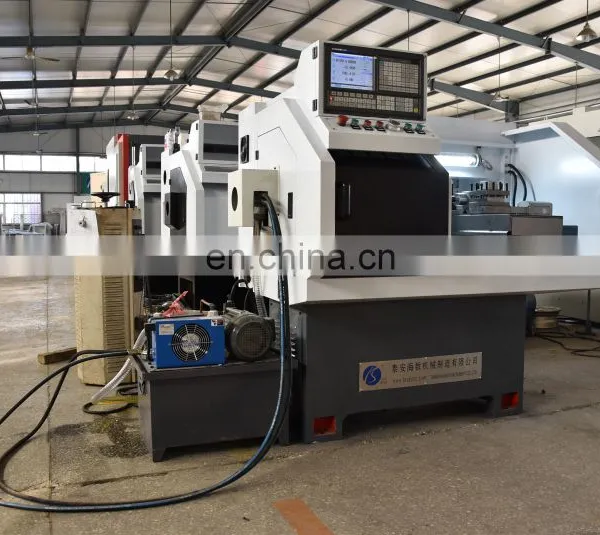

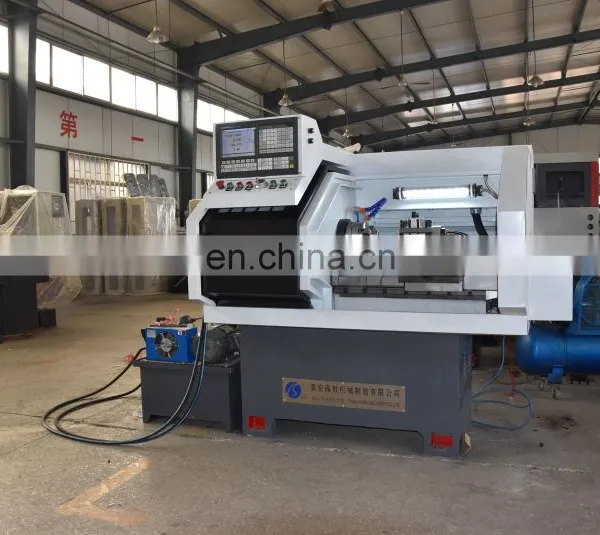

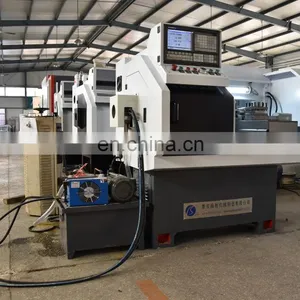

CXK0640A Drilling milling tapping multi-function CNC lathe
Item |
Unite |
Technical data |
The maximum turning diameter of bed |
mm |
Φ250 |
The largest diameter rotary pallet |
mm |
Φ100 |
Max processing length |
mm |
collect 200/ chuck 120 |
Spindle head form |
|
A2-5 |
Spindle bore diameter |
mm |
Φ48 |
Trombone through-hole diameter |
mm |
Φ40 |
Tapping the largest size |
|
M12 |
X / Z axis repeat positioning accuracy |
mm |
0.012/0.013 |
X-axis stroke |
mm |
260 |
Z-axis stroke |
mm |
240 |
X rapid traverse |
m/min |
5 |
Z rapid traverse |
m/min |
8 |
Spindle drive form |
|
servo |
C axis function |
|
360° Arbitrary indexing |
Spindle speed range |
r/min |
0-3000 Forward and reverse |
Spindle motor power |
kw |
3 |

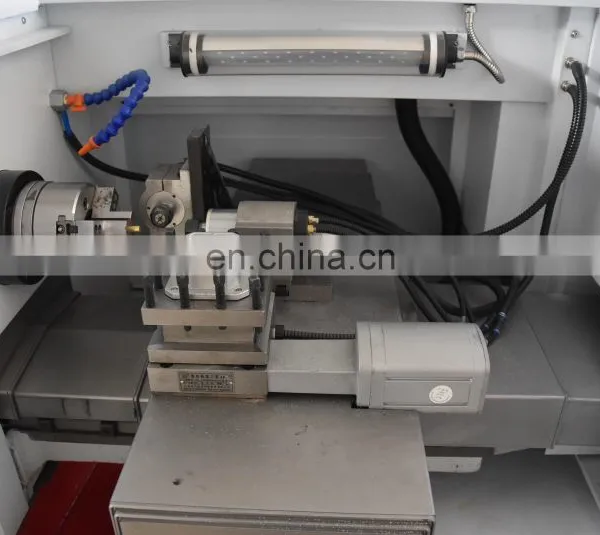

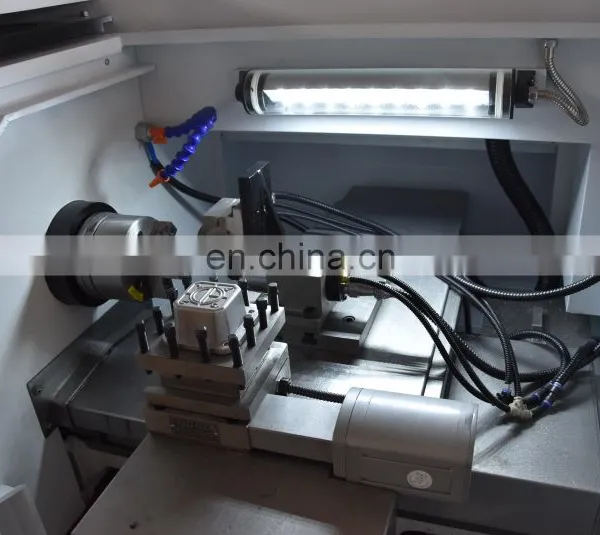

Turret form |
|
In line turret / electric turret optional |

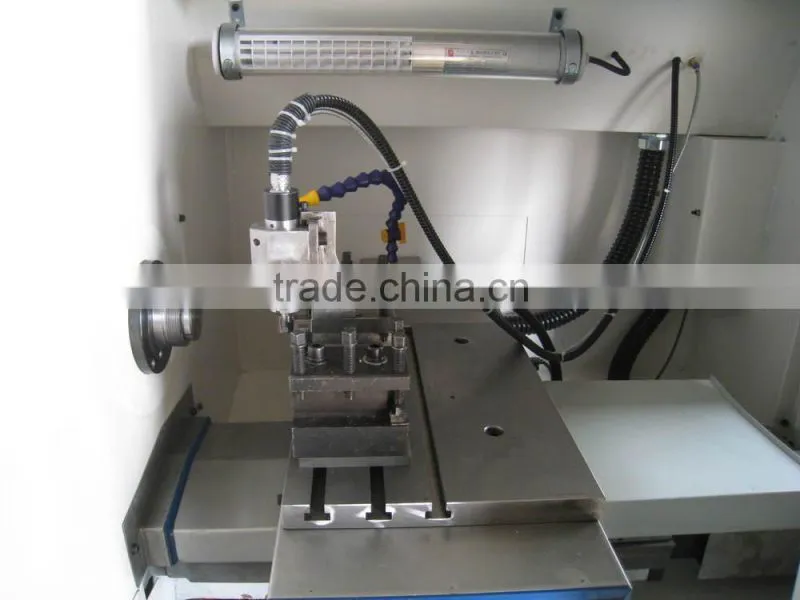

Milling power head power |
w |
Standard200, >200(Special Order) |
Milling speed |
rpm |
1000~10000 |
Chuck Type |
|
ER08 (Optional) |
The maximum diameter of the tool holder |
mm |
Standardφ5, >φ5(Special Order) |
Number of milling power head |
|
Optional |
Y-axis |
|
Optional |
Overall dimensions((L×W×H)) |
mm |
1600×1000×1550 |
Machine weight |
kg |
1000 |

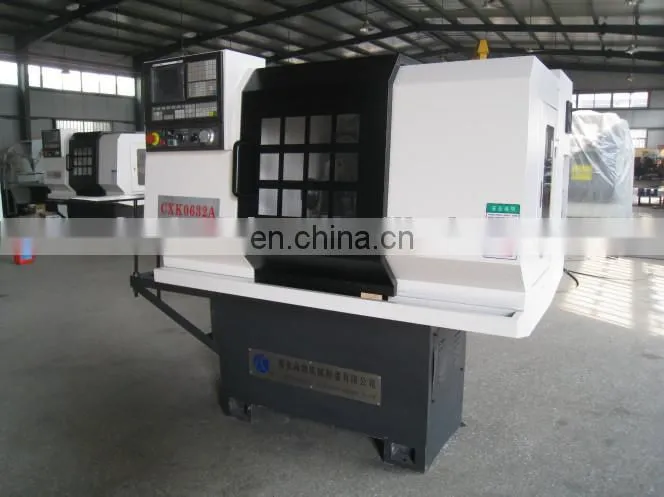

Features: CKX0632A CNC lathe used mechanical and electrical integration design, have beautiful shape, reasonable structure, convenient operation, wide applications, convenient operation, a machine can realize until advantage, multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting, with perfect S/T/M function, can give and receive multiple signal, automatic control processing program
This machine, can lathe, millng ,drilling,multi-purpose cnc machine tool, with high efficiency and precision.
standard exported wooden case

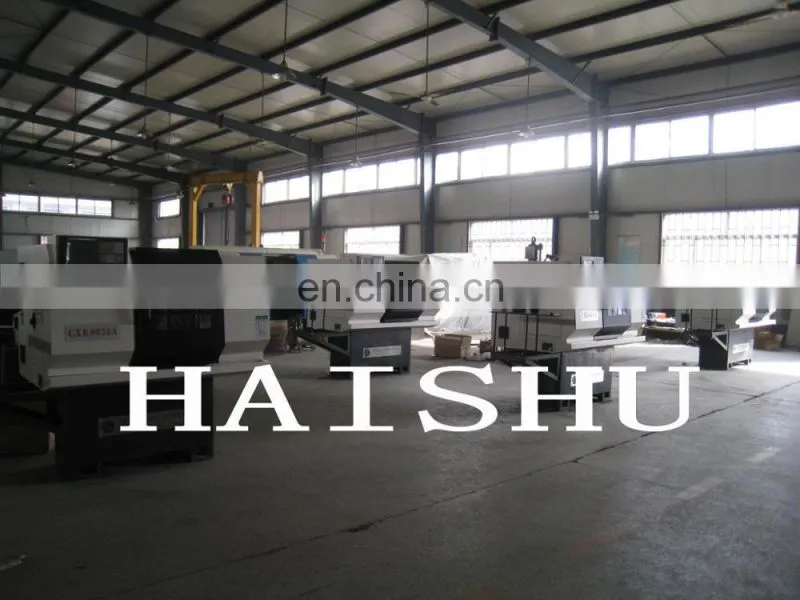

About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC wheel machine products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries, please contact me, we will reply as soon as possible.
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
-
1. How long is the warranty period for the cnc lathe?
Our warranty period is one year, life service. -
2. Is there any requirement for the voltage of the cnc lathe?
Our standard voltage is generally 3-phase 380V, if you need to customize the other voltage please tell us in advance. -
3. May i change the color of the cnc lathe?
The color of the machine can be customized according to the color card provided by you -
4. Could the cnc lathe be customized?
As long as you provide detailed workpiece requirements or drawings, we can customize a special machine for you.
