Automatic CK6150A-1 cnc lathe machine price
High Efficiency CK6150A-1 cnc lathe machine price Description:
High Efficiency CK6150A-1 cnc lathe machine price are widely used CNC machine tools for metal cutting, turning or drilling with rotating action. HAISHU brand CK series horizontal CNC lathes provide an affordable, entry-level lathe with exceptional flexibility. Our High Efficiency CK6150A-1 cnc lathe machine price are equipped high precision, high speed spindle, ultrasonic frequency quenched guide ways, fast cam clamping device and servo motor drive which offer high quality, stability, rigidity and accuracy for a variety of metal processing applications.

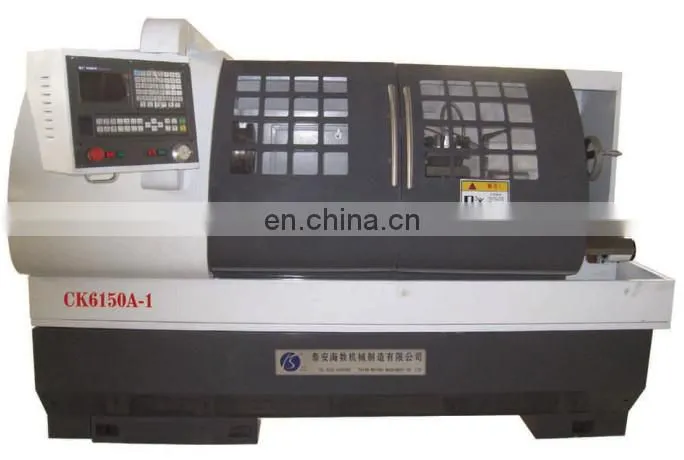

High Efficiency CK6150A-1 cnc lathe machine price Appearance:
High Efficiency CK6150A-1 cnc lathe machine price Technical Parameters:
| No | Item | Unit | Technical Parameters |
| CK6150A-1 | |||
| 1 | Max. rotation diameter over bed | mm | φ500 |
| 2 | Max. rotation diameter over pallet | mm | φ290 |
| 3 | Max. workpiece length | mm | 750/1000 |
| 4 | Main transmission form | 2-GEARS | |
| 5 | Spindle speed mode | frequency stepless speed in gear | |
| 6 | Spindle speed range | r/min | 150-2000 |
| 7 | Spindle head form | 8-A2 | |
| 8 | Spindle bore | mm | φ70 |
| 9 | Spindle taper | 1:20 | |
| 10 | Chuck diameter | mm | φ250 |
| 11 | Main motor power | kw | 7.5 |
| 12 | Turret maximum stroke | mm | X-260 Z-760/1020 |
| 13 | Fast moving feed | mm/min | X-6000 Z-8000 |
| 14 | Repeat positioning accuracy | mm | X-0.01 Z-0.015 |
| 15 | Workpiece accuracy | IT6-IT7 | |
| 16 | Workpiece surface roughness | Ra1.6 | |
| 17 | Diameter of tailstock quill | mm | φ70 |
| 18 | Tailstock quill stroke | mm | 120 |
| 19 | Taper of tailstock quill | MT5 | |
| 20 | Repeat positioning accuracy | mm | 0.008 |
| 21 | Section of turning tool | 25*25 | |
| 22 | CNC Lathe Size(L×W×H) | mm | 2300*1500*1600 |
| 23 | Net weight | Kg | 2900 |

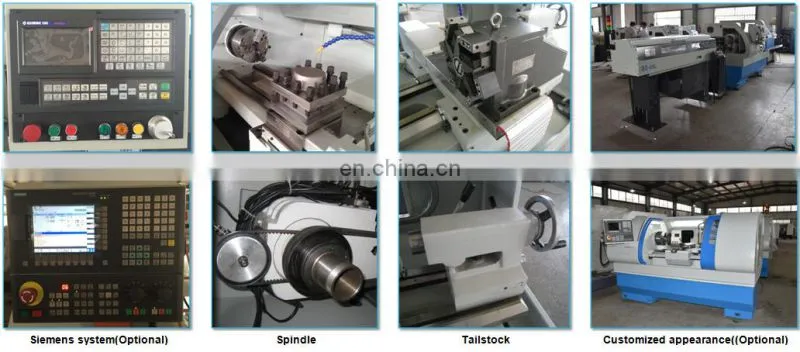

High Efficiency CK6150A-1 cnc lathe machine price main parts:
High Efficiency CK6150A-1 cnc lathe machine price Configuration:
Standard Configuration:
CNC system – KND
Manual chuck
Manual tailstock
Four-station vertical electric turret
Automatic lubrication system
Cooling system
Optional configuration:
CNC system – GSK928, Siemens, Fanuc, etc.
Hydraulic chuck (solid and hollow), pneumatic chuck

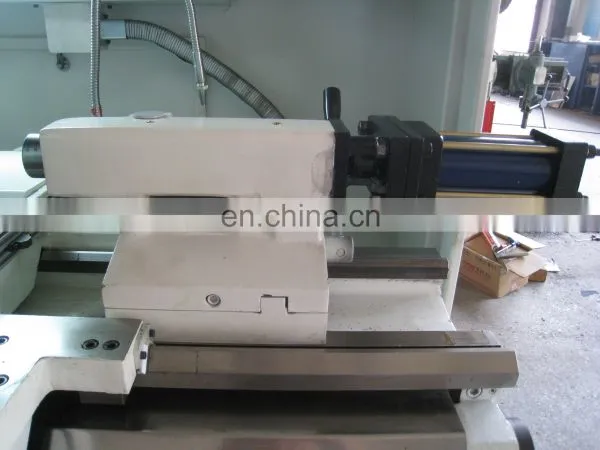

Hydraulic tailstock, pneumatic tailstock
Automatic feeder

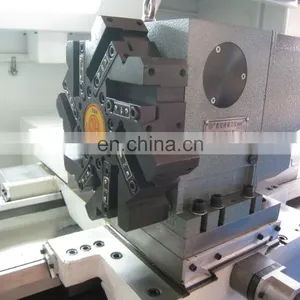

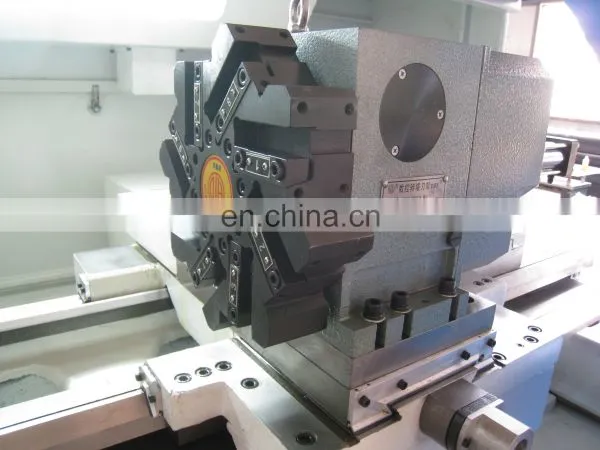

Six-station horizontal turret, eight-station turret, tool rows
High Efficiency CK6150A-1 cnc lathe machine price workpiece:
High Efficiency CK6150A-1 cnc lathe machine price Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC wheel machine products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries, please contact me, we will reply as soon as possible.
