High Quality CK6140T cnc turning machine price
High Quality CK6140T cnc turning machine price Description:
High Quality CK6140T cnc turning machine price is a universal horizontal CNC lathe. In this metal CNC lathe, the spindle aperture is enlarged, and the wide guide rail can increase the stability of the CNC machine tool. The bed body also adopts an integral structure in order to increase the rigidity.
High Quality CK6140T cnc turning machine spindle adopts high speed bearings and is very suitable for processing non-ferrous metals such as copper, aluminum, stainless steel and so on. The appearance has also been independently designed, very beautiful and generous.
The two guide rails of the High Quality CK6140T cnc turning machine adopt a double triangular structure, which can improve the machining accuracy and stability. And it can also increase the processing speed. It is the very cost-effective CNC lathe.

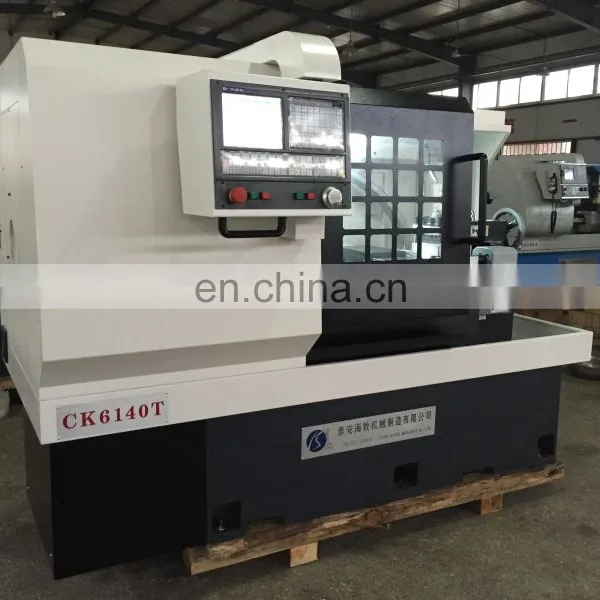

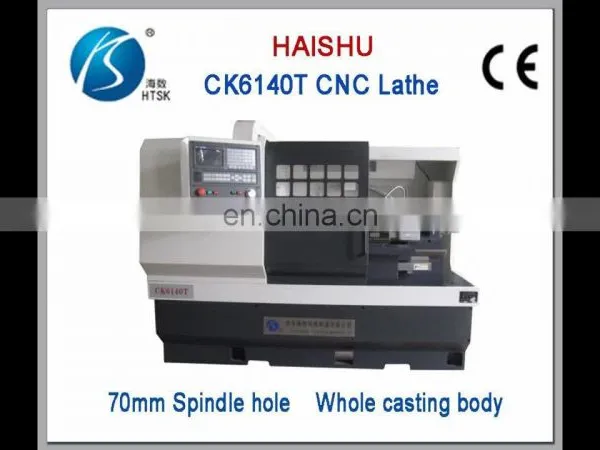

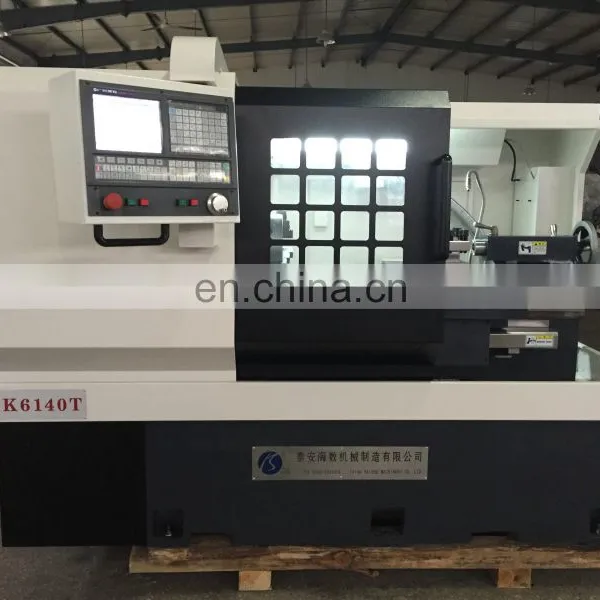

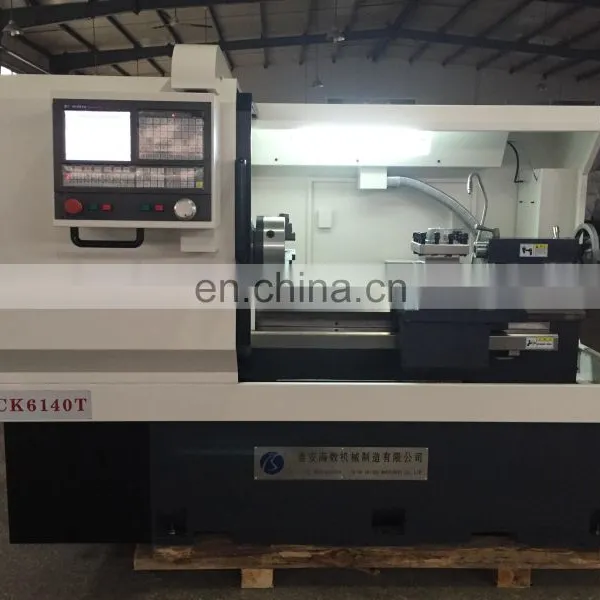

High Quality CK6140T cnc turning machine price appearance:
High Quality CK6140T cnc turning machine price Technical parameters:
Project name |
Technical paramaters |
Max.swiming over the bed dia. (mm) |
Φ420 |
Max.swiming over pallet(mm) |
Φ230 |
Max.the workpiece length(mm) |
750 |
Main transmission form |
Independent spindle; frequency conversion stepless |
Number of spindle speeds |
stepless |
Range of spindle speed(r/min) |
200~3000 |
The form of the spindle head |
NO.6 A2type |
Spindle bore(mm) |
Φ70 |
Chuck dia. (mm) |
Φ250 |
Main motor power(kw) |
5.5kw |
Turret maximum stroke(mm) |
X - axis: 260 Z - axis:750 |
Fast-moving feed(mm/min) |
X - axis:6000 Z - axis:8000 |
Repeat positioning accuracy(mm) |
X - axis:0.01 Z - axis:0.015 |
Workpiece accuracy |
IT6-IT7 |
Workpiece surface roughness |
Ra1.6 |
Dia. of tailstock quill(mm) |
Φ60 |
Tailstock quill stroke(mm) |
120 |
Taper of tailstock quill |
MT4 |
Standard accessories |
4 station electric tool |
Opinional accessories |
Horizontal 6-station electric turret or gang-type tool camier |
Repeat positioning accuracy(mm) |
0.008 |
Section of turning tool(mm) |
25*25 |
The size of the machine(length*width*height)(mm) |
2400*1450*1650 |
Net weight of the machine(kg) |
2000 |

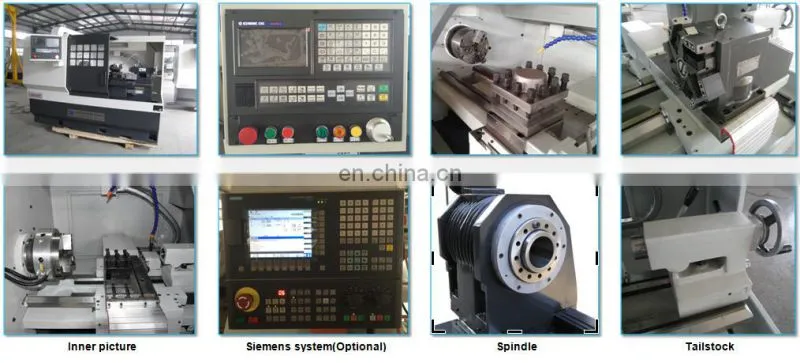

High Quality CK6140T cnc turning machine price main parts:
High Quality CK6140T cnc turning machine price Main features:
Large spindle bore (φ58mm),
Large turning diameter (φ400mm),
High spindle speed (2800rpm),
Overall width casting bed foot, 30mm high gear waterside,
Double triangle rail,
Tailstock assembly double plate tight.
High Quality CK6140T cnc turning machine price Configurations:
Standard Configuration
CNC system – KND

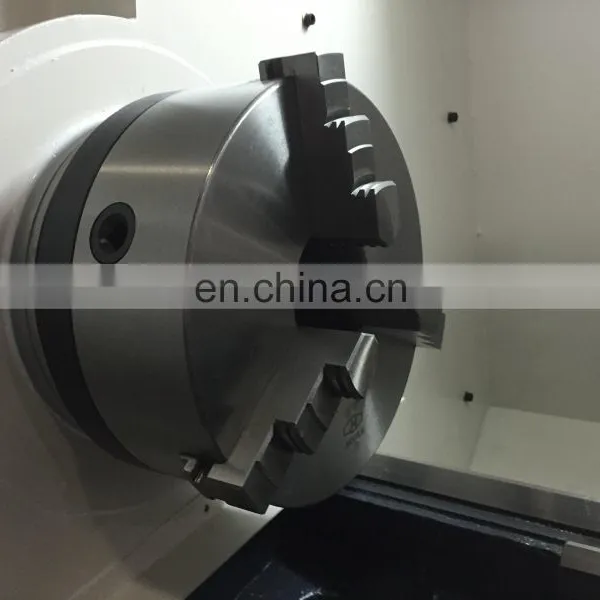

Manual chuck
Manual tailstock
Vertical four-station electric turret
Automatic lubrication system
The cooling system for turning
Optional configuration
CNC system: GSK, Siemens, Fanuc, etc
Main servo motor
Hydraulic chuck (solid and hollow), pneumatic chuck, manual collet, pneumatic collet
Hydraulic tailstock, pneumatic tailstock
Automatic feeder
Horizontal 6 turret station, tool row
High Quality CK6140T cnc turning machine price workpiece:
High Quality CK6140T cnc turning machine price Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC wheel machine products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries, please contact me, we will reply as soon as possible.
