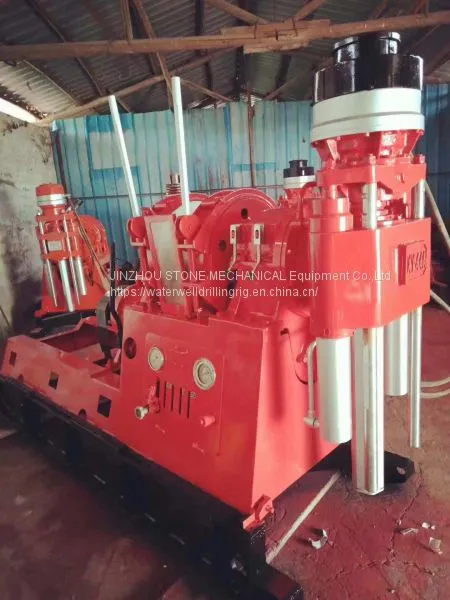

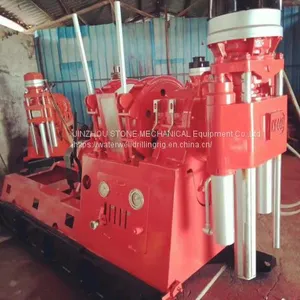

200m Portable Geologic Investigation Mining Water Well Drilling Rig
US$ 5400 - 7900
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ShiTan
Place of Origin:
China
Model Number:
ST100
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
7 days
Related Products
-
Multifunctional Horizontal Directional Drilling Equipment For Water WellsUS$ 5400 - 7200MOQ: 1 Set -
Portable Hydraulic Water Well Drilling Rig Quality Crawler 500 MeterUS$ 4800 - 7500MOQ: 1 Set
-
Full Hydraulic Diamond Core Drilling Machine Durable For Mineral ExplorationUS$ 5200 - 12600MOQ: 1 Set
-
Mining and Geotechnical Diamond Core Drilling Rig & Water Well Drilling MachineUS$ 6300 - 13200MOQ: 1 Set
-
Easy Operate Hydraulic Geological Drilling Rig Machine for Highway Construction ServeryUS$ 3600 - 5400MOQ: 1 Set
Brand Name
ShiTan
Place of Origin
China
Model Number
ST100
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New

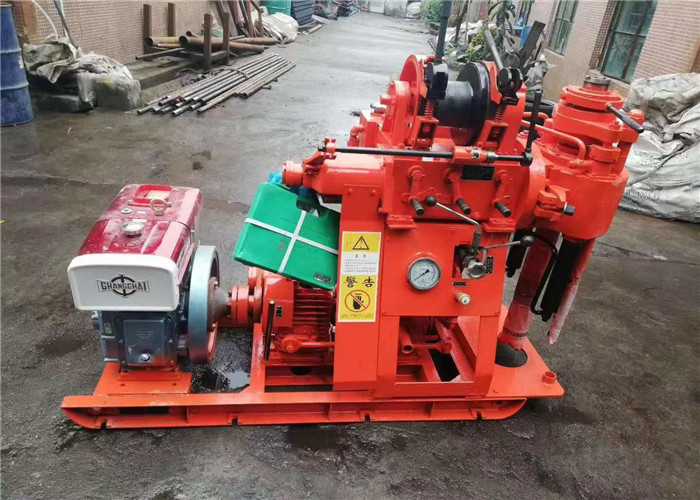

200m Portable Geologic Investigation Mining Water Well Drilling Rig
| Drilling RigDrilling diameter(mm)75,91,110,130,150,300Drilling depth (m)200,150,100,70,50,30Drill pipe diameter (mm)42,50Drilling angle(°)90~75Equipment size(L * B * H)1730 * 860 * 1360 (mm)Rig weight (except engine)700Mobile deviceMoving length350mmLeave distance300mmGyratorSpindle speed (four gear) (r/min)115,230,505,1010Spindle travel(mm)450Spindle no-load lifting maximum moving speed(m/s)0.05Spindle no load drop maximum movement speed(m/s)0.067Spindle maximum feed pressure(KN)15Spindle maximum lifting force(KN)25Spindle maximum output torque(KN• m)1.5Winch assemblyWinch maximum lifting force (single rope)20Reel speed (r/min)20,39,85,170Reel circumferential speed(m/s)0.172,0.345,0.738,1.476Reel diameter(mm)140Wire rope diameter(mm)9.3Wire rope density (m)40Brake diameter(mm)278Brake band width (mm)50Oil pumpOil pump typeYBC -20/125Nominal pressure (Mpa)12.5Rated flow(ml/r)20Rated speed(r/min)800-2500Diesel engine or motorDiesel engine1115Rated power (KW)16.2Rated speed (r/min)2200Rated pressure(Mpa)12.5Motor typeY160M - 4Rated power (KW)11Rated speed (r/min)1460 |
Why choose us?
1.keeping bracket is installed on the hoist to form a double wheel support structure, can withstand strong blow.
2.Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.
3.This machine adopts national patent technology taper clutch and is with charactristics of strong transmission torque,easy to operation,free to maintenance.
4.Using 46x51 active drill rods which is with high rigitidy, strong delivery torque.
