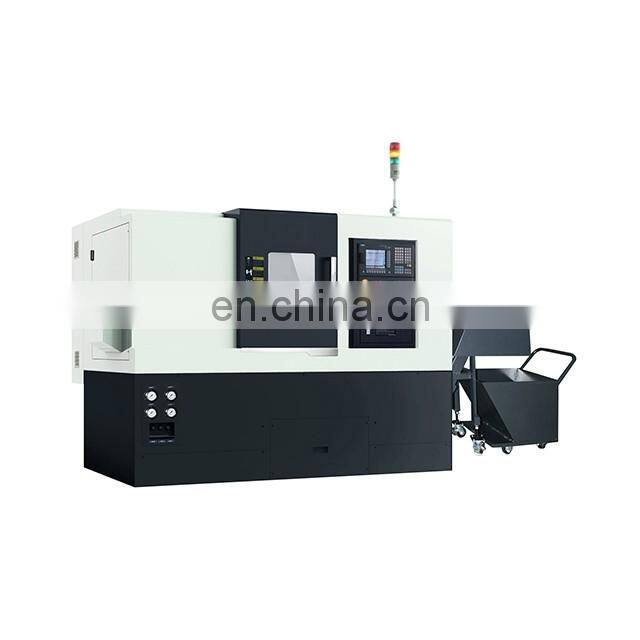

China Top Quality Cnc Metal Machine Lathe Slant Bed

China Top Quality Cnc Metal Machine Lathe Slant Bed thumbnail-1
China Top Quality Cnc Metal Machine Lathe Slant Bed photo-1
US$ 26,300 - 32,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BLIN
Place of Origin:
Zhejiang, China
Model Number:
BL-CK40/50
Contact Supplier Request Quote Chat Now
Drilling Tapping Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIN
Place of Origin Zhejiang, China
Model Number BL-CK40/50
Year 2019
Condition New
Product Description

■ 45°monoblock slant bed.
■ Hard box guideway, high rigidity, suitable for heavy turning.

Item
Specification
Unit
BL-CK40
BL-CK50
Capacity
Max. swing dia. over bed
mm
Φ400
Φ500
Max. swing dia. over slide
mm
Φ260
Φ320
Recommended turning dia.
mm
Φ165
Φ200
Recommended turning length
mm
400/1000
500
Max. turning dia.
mm
Φ285
Φ370
Max. workpiece weight
kg
360(6'' chuck)
550(8'' chuck)
Spindle
Spindle bore
mm
Φ57
Φ62
Spindle type
/
A2-5
A2-6
Spindle speed
rpm
70~3000
60~2250
Chuck size
/
6''
8''
Max. bar through dia.
mm
Φ42
Φ51
Spindle motor power
kw
7.5/11
15
X/Z axes
X axes travel
mm
165
210
Z axes travel
mm
410/1030
550
X/Z axes ball screw O.D.
mm
Φ28/40
Φ28/40
X/Z axes rapid moving speed
m/min
12/16
12/16
Tool turret
Tool turret type
/
8 station
8 station
Toolshank size
mm
20×20, Φ32
25×25, Φ40
Tailstock
Tailstock quill taper
/
MT4#
MT5#
Tailstock quill dia./travel
mm
Φ70/80
Φ90/100
Others
X/Z axes positioning accuracy
mm
0.010
0.010
X/Z axes repeated positioning accuracy
mm
0.005
0.005
X/Z axes positive and negative difference
mm
0.005
0.005
Turning workpiece roundness
mm
≤0.003
≤0.003
Overall size
mm
2370/3200×1700×1970
2860×1830×2020
N.W.
kg
3000/4500
4500

Standard configuration

● FANUC 0I TF CNC Controller
● Hydraulic chuck
● 8 station tool turret
● Hydraulic tailstock

Optional configuration

● NSK bearing

Why Choose us
Certifications
Our Customers
Packing & Delivery
FAQ

1.Are you factory or trading company?

We are factory and have 39 years history for machine tool manufacturing.Welcome to visi us anytime!

2.What's your payment term?

30% T/T in advanced,70% T/T balanced should be paid before shipping.

3.Do you have CE?

Yes,we have.

4.What is MOQ?

1 Unit.
