Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing

Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing thumbnail-1
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing thumbnail-2
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing thumbnail-3
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing thumbnail-4
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing thumbnail-5
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing thumbnail-6
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing photo-1
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing photo-2
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing photo-3
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing photo-4
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing photo-5
Slant Bed Cnc Seal Making Machine Lathe for Plastic Sealing photo-6
US$ 27,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BLIN
Place of Origin:
Zhejiang, China
Model Number:
BL-S36S
Contact Supplier Request Quote Chat Now
Drilling Tapping Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIN
Place of Origin Zhejiang, China
Model Number BL-S36S
Year 2019
Condition New
Product Description

Features:

■ Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.
■ Bed adopt flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility, easy for chip conveying, convenient operation.
■ Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, VDI tool plate, Robot etc.

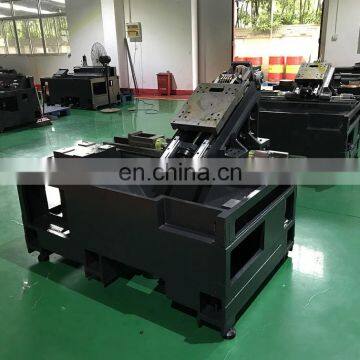

■ Adopt high-class resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,
high speed,wide adjustment range
■ Adopt high precision pre-stretched ball screw, coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
■ Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for heavy loading and precise machining

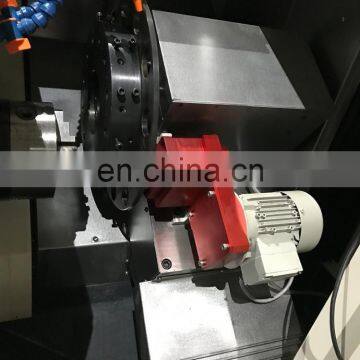

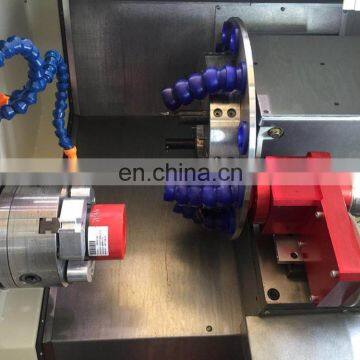

■ Adopt VDI tool turret,especially suitable for seal making.
■ Adopt two types lubrication: Spindle bearings and ball screw bearings adopt Germany KLUBER high speed long acting lubricating grease, maintenance-free. Ball screw and guideway adopt automatic centralization lubrication
■ Adopt LED working lamp, energy conservation, long using lifespan
■ Adopt high strength tempered glass to protect operator
■ Super compact structure, big inside space, modern appearance

Item
Specification
Unit
BL-S36S

    Capacity
Max. swing dia. over bed
mm
Φ560
Max. swing dia. over slide
mm
Φ265



Spindle
Spindle bore
mm
Φ56
Spindle end type
/
A2-5
Spindle speed
rpm
5000
Chuck size
/
6''(Manual)
Spindle motor power
kw
5.5



X/Z axes
X axes travel
mm
270
Z axes travel
mm
270
X/Z axes rapid moving speed
m/min
28
Ball screw O.D./pitch
mm
32/12
X/Z axes linear guideway width
mm
30/35



Tool turret
Tool turret type
/
Electric(VDI)
Tool qty
/
8 station
Tool change time(vicinal/farest)
s
1.2/1.8
Tool holder coulping
mm
VDI25
Coolant
Coolan pump power
w
180
Flow
m³/h
3
Tailstock
None



Accuracy
Ex-circle finish turning accuracy
/
IT6
Finish turning roughness
mm
Ra0.4~1.6
Finish turning roundness
mm
≤0.003
Positioning accuracy(X/Z)
mm
0.005/0.008
Repeat positioning accuracy(X/Z)
mm
0.002/0.004
Others
Overall size
mm
1560×1510×1500
N.W.
kg
2200
Why Choose us
Certifications
Our Customers
Packing & Delivery
FAQ

1.Are you factory or trading company?

We are factory and have 39 years history for machine tool manufacturing.Welcome to visi us anytime!

2.What's your payment term?

30% T/T in advanced,70% T/T balanced should be paid before shipping.

3.Do you have CE?

Yes,we have.

4.What is MOQ?

1 Unit.
