CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe

CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe thumbnail-1
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe thumbnail-2
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe thumbnail-3
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe thumbnail-4
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe thumbnail-5
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe thumbnail-6
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe thumbnail-7
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe photo-1
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe photo-2
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe photo-3
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe photo-4
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe photo-5
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe photo-6
CNC Machine Lathe,Chinese Automatic Metal Slant Bed CNC Lathe photo-7
US$ 27,650 - 28,750 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BLIN
Place of Origin:
Zhejiang, China
Model Number:
BL-X50
Contact Supplier Request Quote Chat Now
Drilling Tapping Machine Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BLIN
Place of Origin Zhejiang, China
Model Number BL-X50
Year 2019
Condition New
Product Description

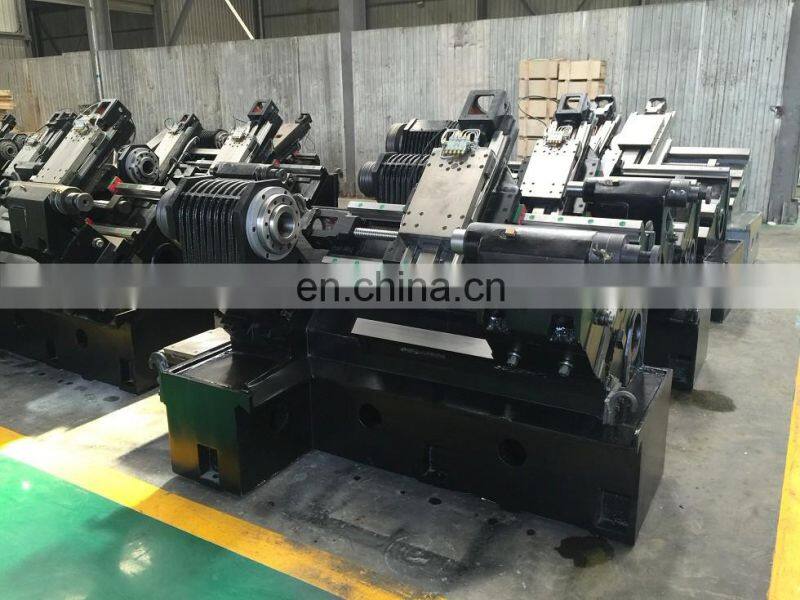

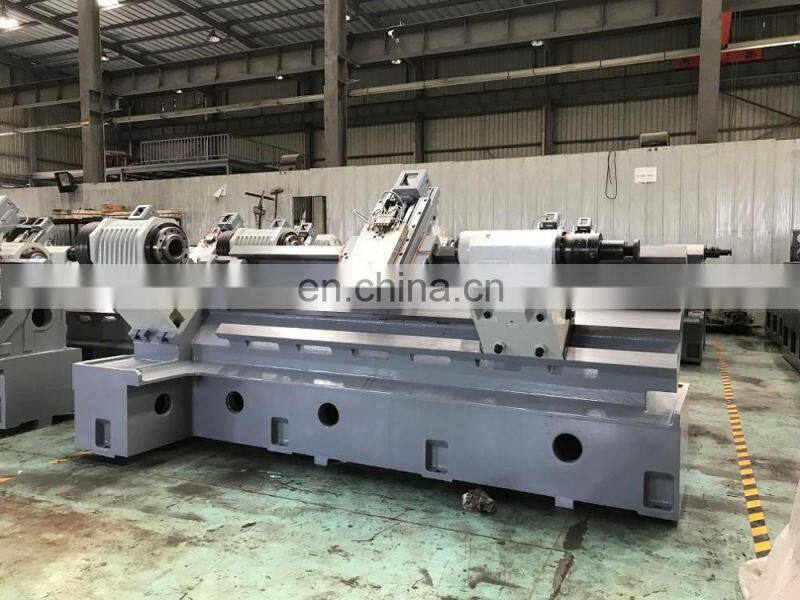

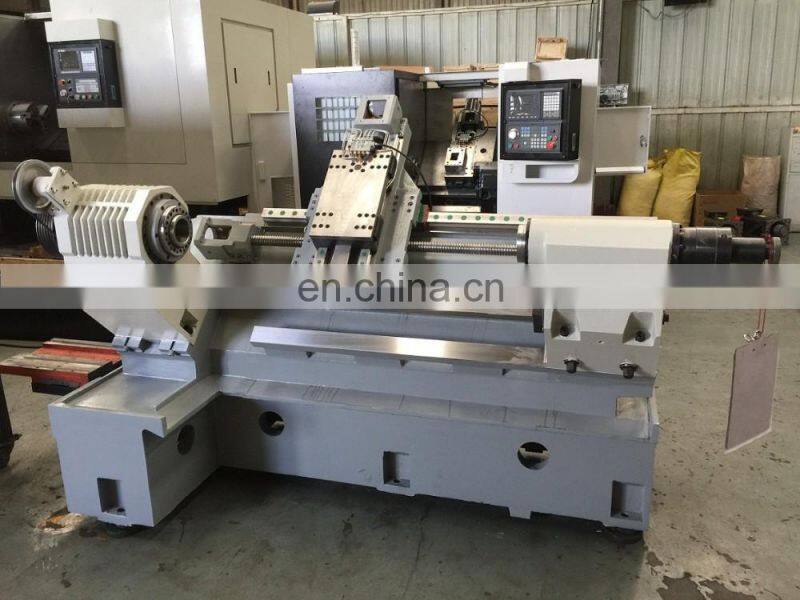

■ Machine frame designed similar as JAPAN machine. Adopt 45°slant bed,wide tubular hollow "L" shape monoblock bed, casted by HT300 resin sand cast iron,2 times aging treatment, small distortion, high stability, meantime torsional strength and flexural rigidity is obviously increased,also easy and fast for chip conveying.

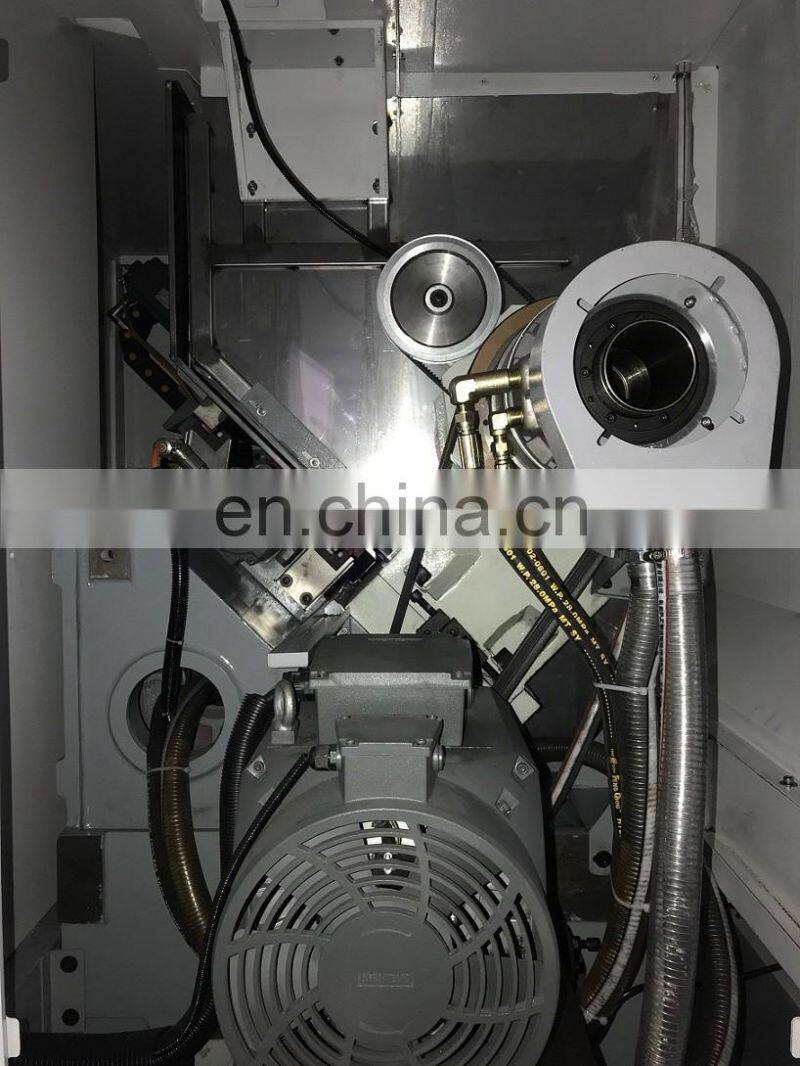

■ Adopt high rigid and high precision independent sleeve type spindle unit, use imported high precision spindle special bearings, adopt import high speed lubrication lipid, obviously reduce spindle's thermal deformation,increase thermal stability and precision.
■ Ball screw pre-load, has high transmission rigidity and precision.
■ Can choose LINEAR guideway or HARD BOX guideway according to need
Item
Specification
Unit
BL-X50
Capacity
Max. swing dia. over bed
mm
Φ570
Max. swing dia. over slide
mm
Φ320
Recommended turning dia.
mm
Φ250
Max. turning dia.
mm
Φ360
Max. turning length
mm
450/750/1350/2000/3000
Spindle
Spindle bore
mm
Φ86
Spindle type
/
A2-8
Spindle speed
rpm
2000
Chuck size
/
10''
Max. bar through dia.
mm
Φ74
Spindle motor power
kw
11(15)
X/Z axes
X axes travel
mm
250
Z axes travel
mm
600/1000/1500/2150/3150
X/Z axes rapid moving speed
m/min
20/16
Tool turret
Tool turret type
/
hydraulic 8 station
Toolshank size
mm
25×25, Φ40
Tailstock
Tailstock quill taper
/
MT5#(for 600mm)
MT4# rotary(for other)
Tailstock quill dia./travel
mm
Φ75/100(for 600mm)
Φ110/100(for other)
Tailstock guideway
/
Rectangle guideway
Others
Machining roughness
mm
Ra≤1.6
Machining accuracy
/
IT6
X/Z axes repeated positioning accuracy
mm
0.006/0.008(0.01,0.013,0.017,0.021)
Overall size
mm
2800/3200/4300/4900/5600×1900×1900
N.W.
kg
3100/3600/4600/5300/6900

Standard configuration:

● SIEMENS 808D ADVANCED CNC Controller
● Hydraulic chuck
● 8 station hydraulic tool turret
● Hydraulic tailstock

Optional configuration

● GSK/FANUC CNC controller
● Chip conveyor
● Hydraulic steady rest

Detailed Images
Why Choose us
Certifications
Our customer
Packing & Delivery
FAQ

1.Are you factory or trading company?

We are factory and have 39 years history for machine tool manufacturing.Welcome to visi us anytime!

2.What's your payment term?

30% T/T in advanced,70% T/T balanced should be paid before shipping.

3.Do you have CE?

Yes,we have.If need,we will send you.

4.What is MOQ?

1 Unit.
