VMC1060 Heavy duty vertical 5 axis cnc machine
Specification of vmc1060 Heavy duty vertical 5 axis cnc machine
| Items | Details | VMC1060 |
| Table | Size | 1300×600 |
| Travel of 3 axis(X/Y/Z)mm | 1000/600/650 | |
| Max, table load(kg) | 1000 | |
| T-slot | Size(mm) | 5-18×120 |
| Spindle | Spindle taper | BT40 |
| Distance from Spindle center to Colum guide(mm) | 650 | |
| Distance of spindle head to table(mm) | 130-780 | |
| Max speed(rpm) | 8000 | |
| Motor power(KW) | 11/15 | |
| Accuracy | Positioning accuracy(X/Y/Z)(mm) | ±0.01/±0.008/±0.008 |
| Repeatability(X/Y/Z)(mm) | ±0.005/±0.004/±0.004 | |
| Axis motor | Power of X/Y/Z(Kw) | 2.5/2.5/2.5 |
| Rapid feed of X/Y/Z(m/min) | 24/24/20 | |
| Cutting feed of X/Y/Z(m/min) | 10 | |
| Feeding speed | Weight(Kg) | 7800 |
| Dimension(mm) | 3300*2500*2700 | |
| Power(V) | 3 phase 380V, |
VMC1060 Heavy duty vertical 5 axis cnc machine is composed of mechanical equipment and numerical control system. It is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.

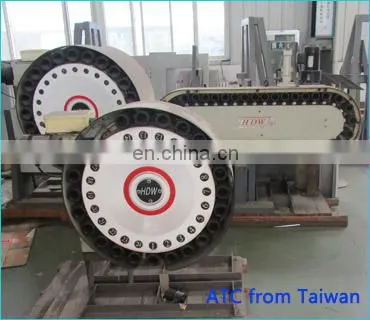

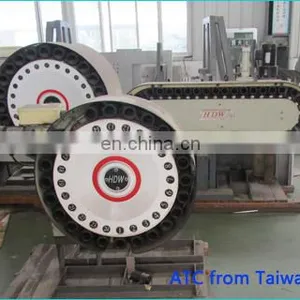

1. vmc1060 heavy duty 5 axis vmc machine price :Our ATC all come from Taiwan famous brand;Hat ATC Brand is HDW(Taiwan hand wheel), Disc type brand is OKADA.
2. heavy duty 5 axis machine center CNC controller system: You can choose the cnc system brand: KND,GSK,SYNTEC, SIEMENS, FANUC
3.Modular panel and electronic controller system ensure the system with high reliability.
4.Ball screw pre-tightening and protection: Both of the ball screw adopt imported bearing and lock nut,that could ensure the feeder precision.
The bumper block at the end of the ball screw could protect the machine parts when have impact.

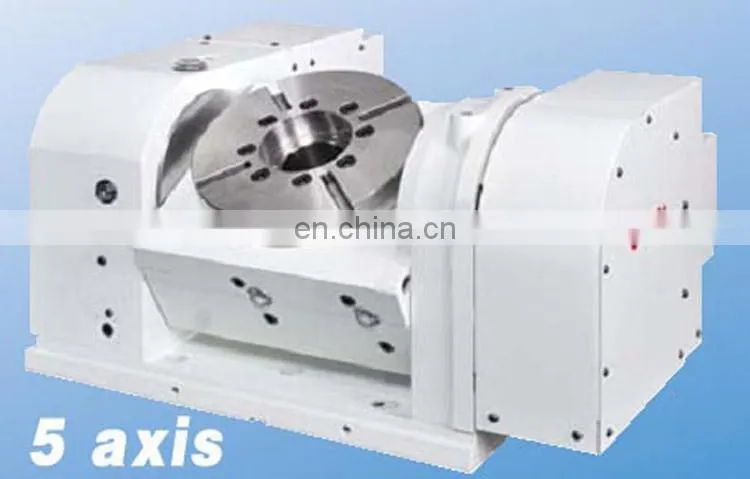

5.vmc1060 3 Axis and 5 Axis support : if you have special request for the 4 axis or 5 axis, we also could supply as your request.
Standard Configuration:
1. High strength resin sand casting
2.KND2000N control system
3. BT40 high speed spindle unit 8000rpm
4. Separate the handwheel

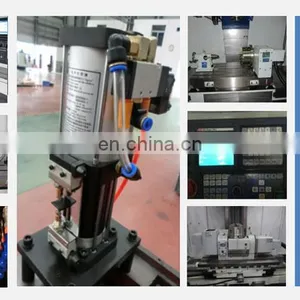

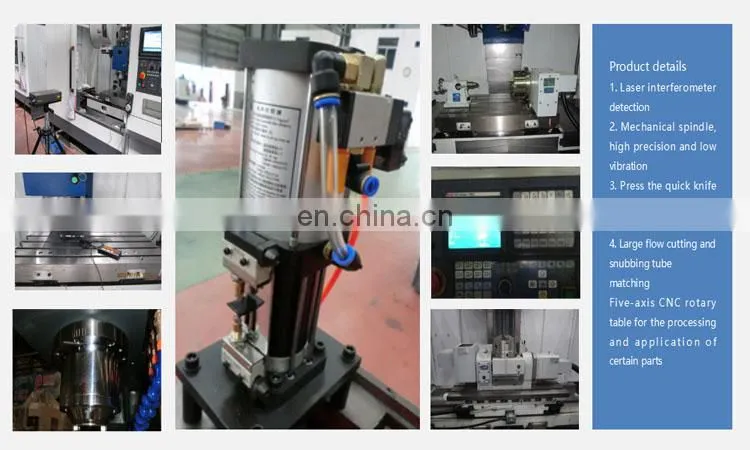

5. Pneumatic broach system
6. Semi- guard
7. Automatic intermittent lubrication
Company specializing in CNC machinery research and development in 20 years, we have good technology, and advanced team, to provide efficient service, for the ball more than 40 countries research and development, production, sales of the company.CNC lathe, CNC milling machine, machining center Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;

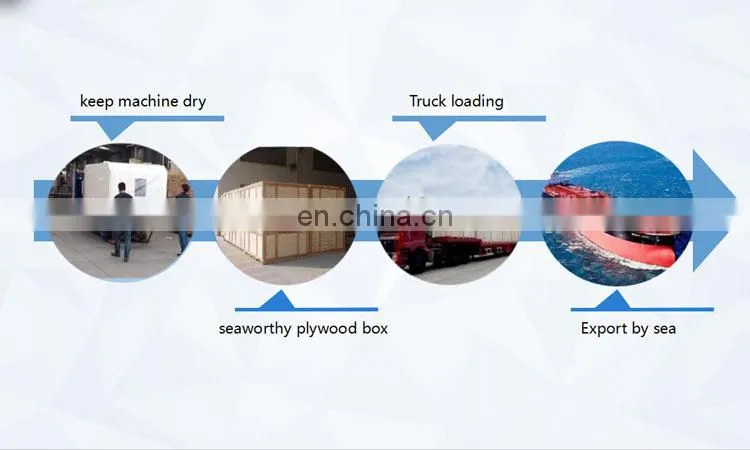

Packaging: the outer packing is standard Marine export plywood box, which is certified by the national inspection agency. Our products are shipped by sea.
We can also carry out the transportation according to your requirements.
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
