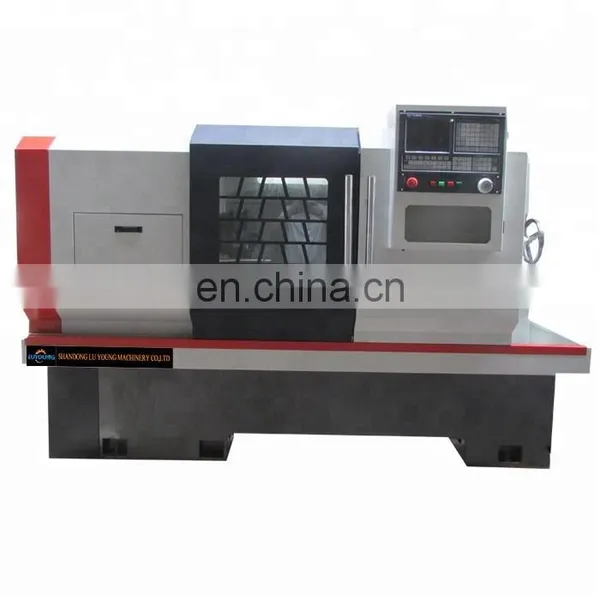

CK6150 horizontal cnc 4 jaw chuck mechanism
| Item | CK6150A |
| Max. swing dia. over bed | 500mm |
| Max. swing dia. over cross slide | 280mm |
| Processing length | 750mm/1000mm/1500mm |
| Width of the bed | 400mm |
| Dia. of spindle | 82mm |
| Spindle taper | 1:20/90 |
| spindle nose | Type of spindle head D-8 |
| Spindle speed | 150-2000rpm |
| Spindle speed step | step-less |
| chuck size | 250mm |
| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis travel | 360/750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |
| Dimension | 2410/2660/3160*1560*1730mm |
| weight | 2800/3200/3500kg |
1.CK6150 horizontal cnc 4 jaw chuck mechanism High precision of machine tool, the spindle adopts Harbin bearing HRB high precision double ball bearing support, low noise, high precision and good stability.
2. The CK6150 cnc lathe machine bed body guide is refined by ultrasonic quenching, high hardness and good rigidity.
3. The CK6150cnc lathe machine electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
4. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
5, wide CNC system adopts several system or Cain emperor and other well-known brands at home and abroad, the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
6.CK6150 lathe cnc machine Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching.
7. The CK6150 cnc lathe tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
1.2CK6150 CK6150 horizontal cnc 4 jaw chuck mechanism tools can complete the machining of straight line, arc, male and female threads and multi-thread, which can be used in the machining of disc and shaft parts with high precision and complex shape.
1.3 CK6150 machine tool X direction and Z guide rail adopt rigid sliding guide rail. The machine tool is suitable for heavy turning and precision retention.

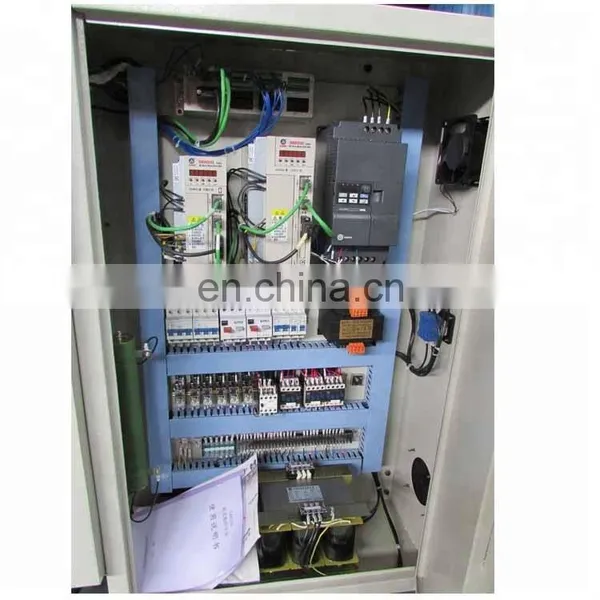

1.4 CK6150 CNC control system + servo drive, main shaft adopts inverter spindle.
1.5 adopt domestic famous ball screw and Japanese NSK screw bearing.

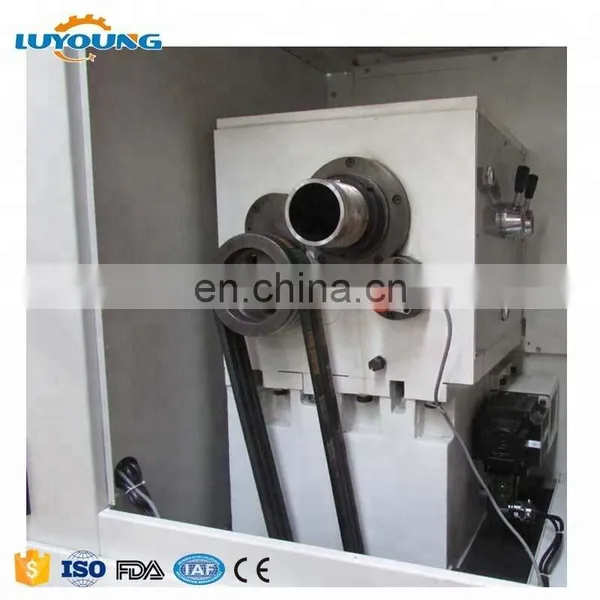

1.6 spindle unit adopts Japan NSK spindle bearing group, and the precision assembly and dynamic balance test, ensure that the spindle of high precision, low noise, strong rigidity, which can realize stepless speed regulation and constant speed cutting, start and stop quickly.
1.7 each lubrication point shall be fixed by the compulsory automatic lubricating device for fixed point, and the warning signal will be automatically generated when abnormal state or oil quantity is insufficient.
1.8The CK6150 lathe cnc machine adopts the four-position rotary tool holder, and the tool holder can be changed to the nearest path of the rotary tool, the speed of changing the knife is fast, the positioning rigidity is good, the repeatability positioning precision is high.

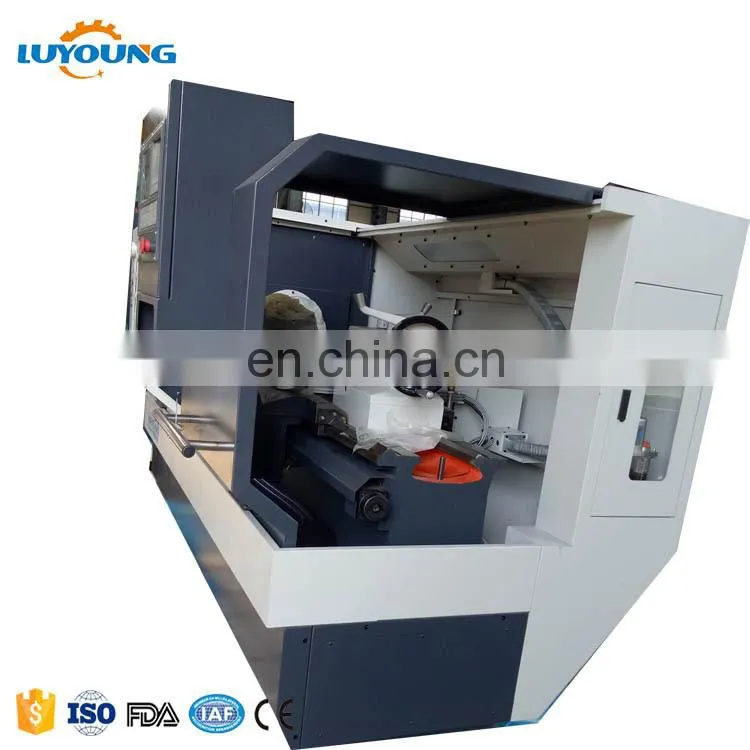

1.9 the whole sealing protection device is adopted to prevent the cooling liquid and debris flying out of the machine tool.
1.10CK6150 lathe machine chip removal device, easy to clean the iron dust.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
Our packing is standard sea export plywood box, which can guarantee the quality of the goods and also reduce the loss.
The mode of transportation is by sea.
You can also pack and transport according to your requirements
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
5. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
6.CK6150 horizontal cnc 4 jaw chuck mechanism can be customized?
A: Of course, if our products do not meet your needs, please tell us the model and send the drawings to us to recommend the right products. We can also design and produce the machines that meet your requirements.
