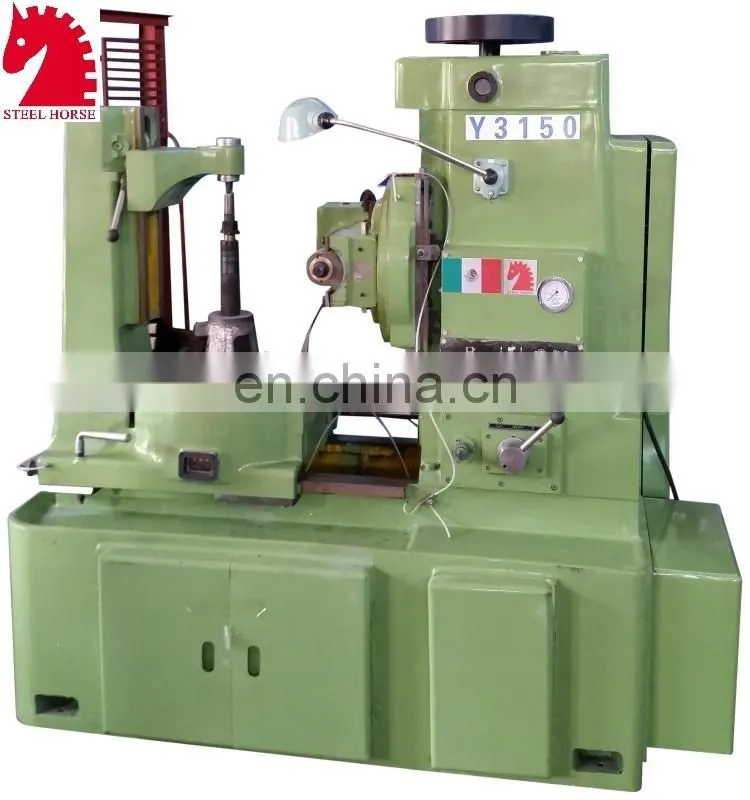

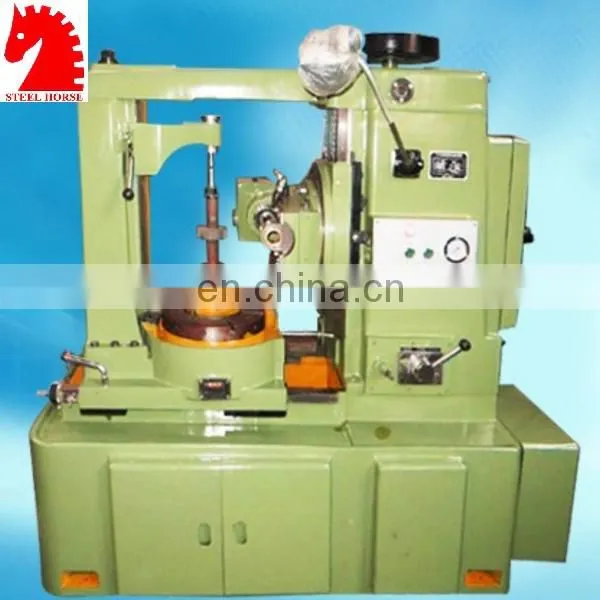

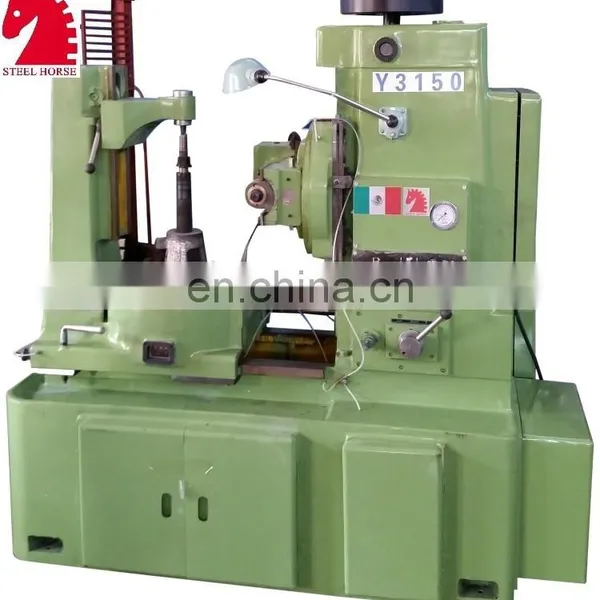

Economy Y3150 pfauter gear hobbing machine
- 1000 per Month
- T/T Credit Card
Product Details
Brand Name: | Steel horse | Place of Origin: | Shandong, China | Model Number: | Y3150 |
Type: | Gear Hobbing Machine | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Weight: | 2700kg | Dimension(L*W*H): | 1825x935x1730mm | Voltage: | 220,380 |
Condition: | New | Power(W): | 3kw | CNC or Not: | Normal |
Product Description
Economy Y3150 pfauter gear hobbing machine
The machine is suitable for processing bulk and single-piece production spur gears, helical gears, worm and sprockets.
This machine has good rigidity, high strength, high precision, easy operation, adjustment and maintenance simple.
Hwasun milling methods can be used milling machining gear, axial or radial can be processed.

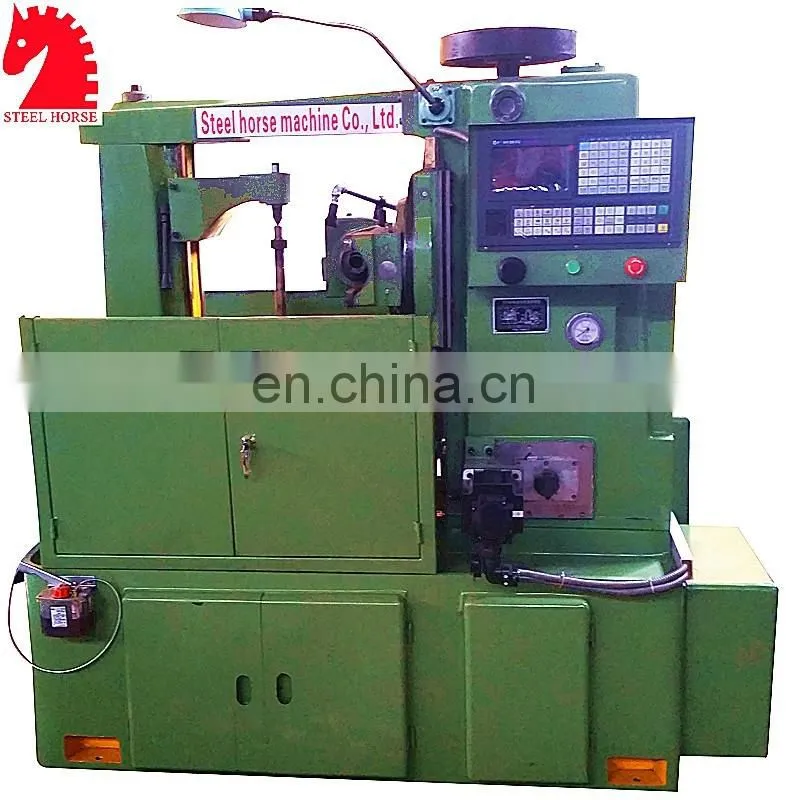

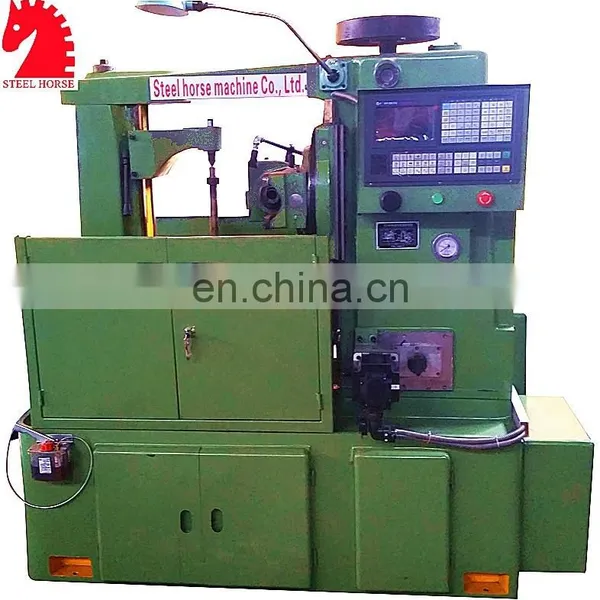

Can be configured according to the requirements of customers of Siemens CNC system, complete drum gear and
small taper bevel gear processing machine can also be heightened, lengthened to expand the machining range.
Y3150 gear hobbing machine Main data:
Maximum working diameter: 500mm
Maximum working Modulus: 8mm
Maximum working width: 250mm
Hob maximum diameter / length: 160/160mm
Working table diameter: 510mm
Hob spindle speed / level :40-250RPM / 9
Maximum axial runout tool spindle: 55mm
Spindle taper: Morse 5
Hob center to table distance :235-535mm
Hob centers and work center distance :20-330mm Countertop
External fixation nose to table distance :380-850mm
Table Aperture: 80mm
Maximum swivel turret: 240 °
Arbor Diameter: 22,27,32 mm
Workpiece spindle diameter: 30mm
Main motor: 5.5KM/1500RPM
Machine outline dimension: 2450 * 1272 * 1790
GW / NW: 5300/4500KG
Steel Horse machine,is a collection of machine development,testing,production,
sales and integration of joint-stock enterprises.Enterprises with an annual output
of 20,000 sets of various types of machine.Our company was founded in 1990,
in 1995 we shareholding system reform, found "Steel Horse Machine"brand.
With our "Steel Horse Machine" Twenty years in the machinery and equipment
manufacturing industry accumulated abundant capital and the introduction of
foreign advanced technology,in 2007 we spent a lot to create "White Horse CNC"
brand.Enterprise products have been metal processing, automotive,military,
aerospace and other key industries widely used.
Steel Horse machine"quality first,faith forever" as the purpose,we willing to
cooperate sincerely with friends at home and abroad for common development.
