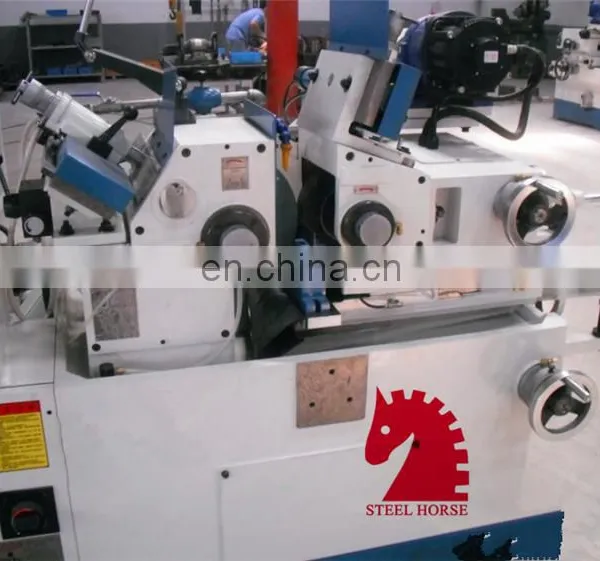

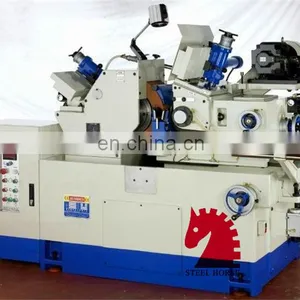

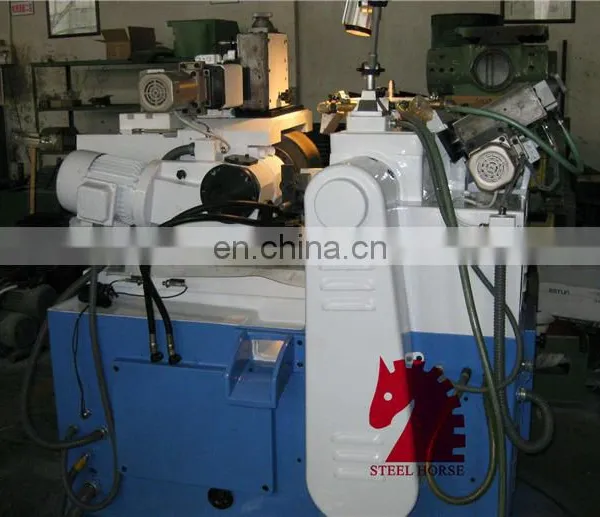

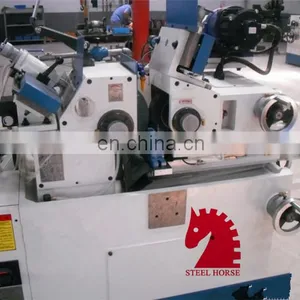

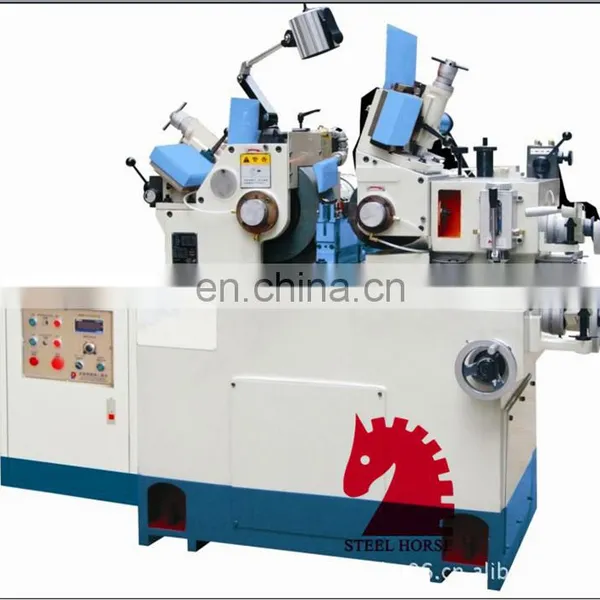

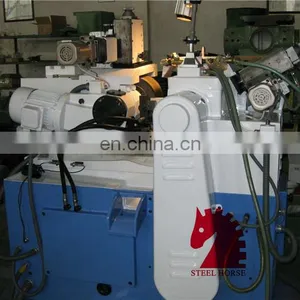

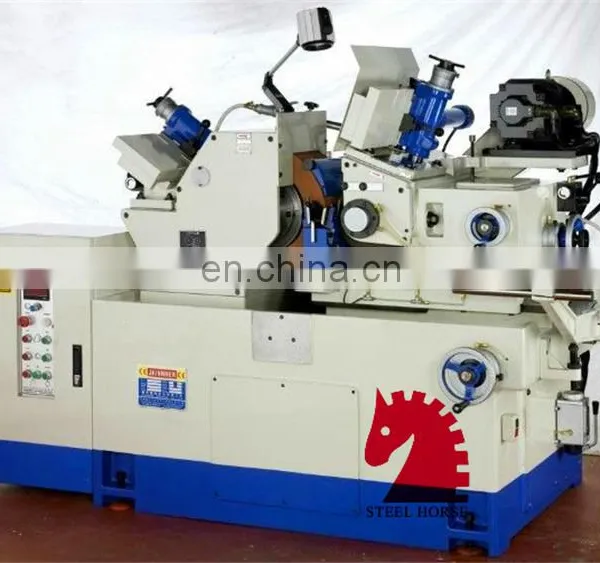

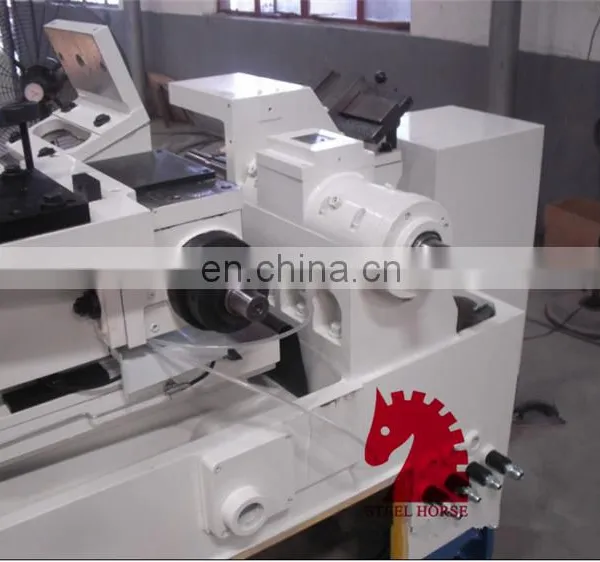

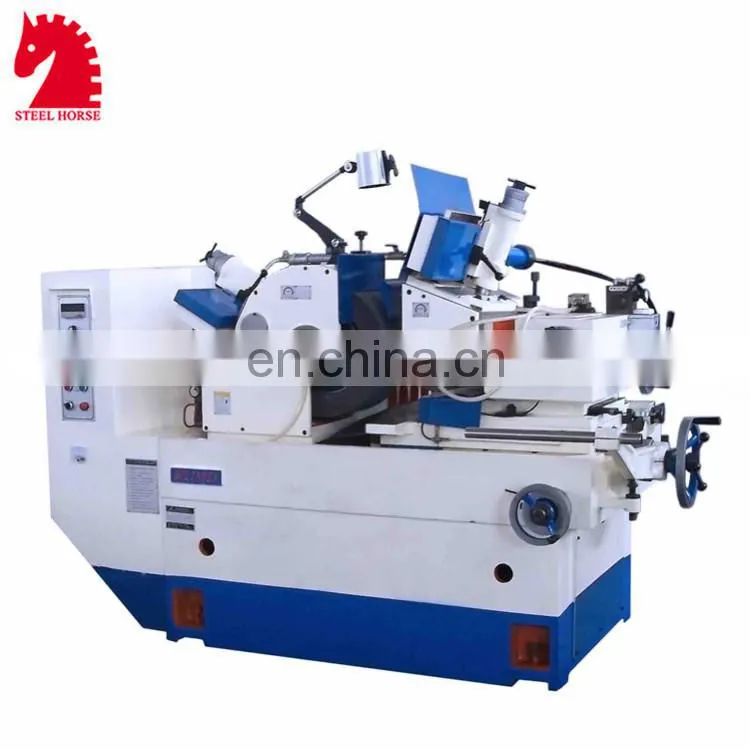

Help CenterSteel Horse M1040 Centerless Grinder Machine/centerless Grinding Machine
Related Products
-
MY820 Small Price Hydraulic Flat Grinding MachineUS$ 3,000 - 4,000MOQ: 1 Set -
MY1224 Automatic Hydraulic Metal Surface Grinder MachineUS$ 3,000 - 4,000MOQ: 1 Set
-
MY1230 Hydraulic Automatic Universal Surface Grinding Machine for MetalUS$ 3,000 - 4,000MOQ: 1 Set
-
M618S Easy Model Vertical Surface Grinder MachineUS$ 2400.00 - 15.00MOQ: 1 Set
-
M618S Easy Mode Rotary Table Surface GrinderUS$ 2,400 - 2,400MOQ: 1
Salient features:
1.Structure of fixed grinding wheel and movable regulating wheel
2.The grinding wheel designed in cantilever type, and its spindle
multi-plate long bearing bushed static-hydrodynamical oil film bearing.
adopted
3.Cantilevered regulating wheel, the spindle supports solid bearing sliding with 1:30 taper.
4.The swallow tailed roller guideway & differential screw supports the
regulating wheel feeding
5.AC frequency converter is used for regulating wheel speed control .
6.Hydraulic transmission & stepless speed regulation are adopted on
regulating wheel & grinding wheel dresser.
7.Equipped automatic plunge device in the grinder.
Model |
M1040 centerless grinder/grinding machine |
Thru-feed |
|
1)Grinding diameter |
2-40mm |
2)Grinding length |
140mm |
Plunge feed |
|
1)Grinding diameter |
7-40mm |
2)Grinding length |
120mm |
Grinding wheel specifications |
PSA350*125*127mm |
Regulating wheel specifications |
PSA250*125*75mm |
Grinding wheel speed |
1870r/min |
Regulating wheel speed(stepless) |
20-180r/min |
Swiveling angle of regulating wheel |
|
1)Invertical plane |
-2°~ 4° |
2)In horizontal plane |
0°~ 3° |
Feed amount per division of the feed handwheel |
0.002mm |
Feed amount per division of the dresser |
0.01mm |
Height from centerline of gri.wheel & reg.wheel to workest |
190mm |
Toal power of machine |
9kw |
1)Grinding wheel motor |
7.5kw |
2)Regulating wheel motor |
1.1kw |
Overall dimensions |
1550*1300*1405mm |
Machine weight |
about 2000kg |
Machining accuracy |
|
1)Roundness |
0.002mm |
2)Cylindricity |
0.003mm |
3)Surface Roughness |
Ra0.32um |
