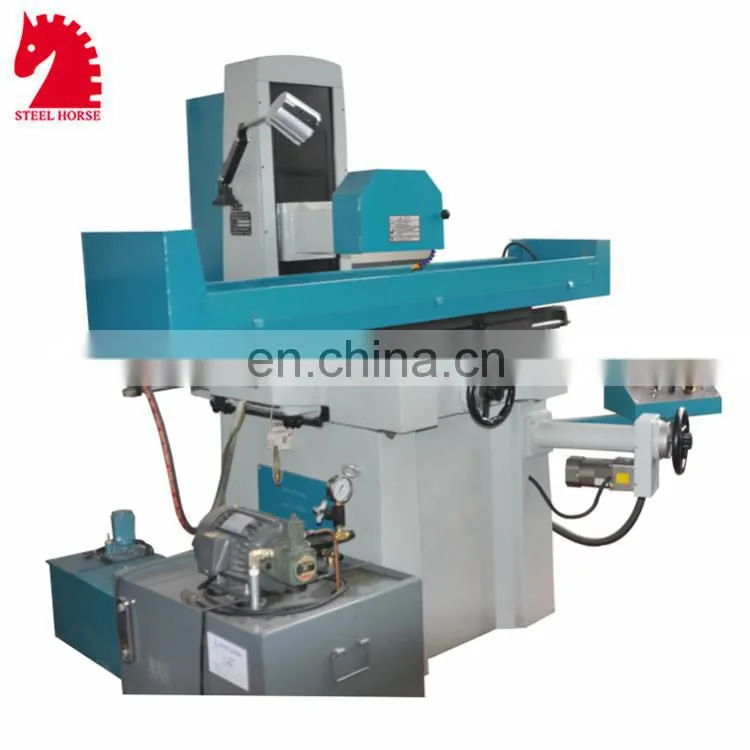

MY1224 Automatic Hydraulic metal surface grinder machine
Standard features:
* 3 – axis manual operation
* High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
* Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
*Enlarged spindle housing for heavier grinding
* V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability
* Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 vides quiet,vibration free operation for better workpiece accuracy.
* M618: roller steel balls on linear table ways for easy and smooth longitudinal movements and “V+Flat” shape saddle ways for rigidity.
* Mid-level downfeed handwheel placement for convenient and easy positioning for Z-axis
* Manual lubrication system provides lubrication to all necessary mechanism saddle&column ways,bearings and lead screws for better machine performance and less maintenance.
* Convenient control panel including all buttons and switches.
*Digital readout system – two axis (Z& Y axis) digital readout
The min.digital readout amount:0.001-0.005mm

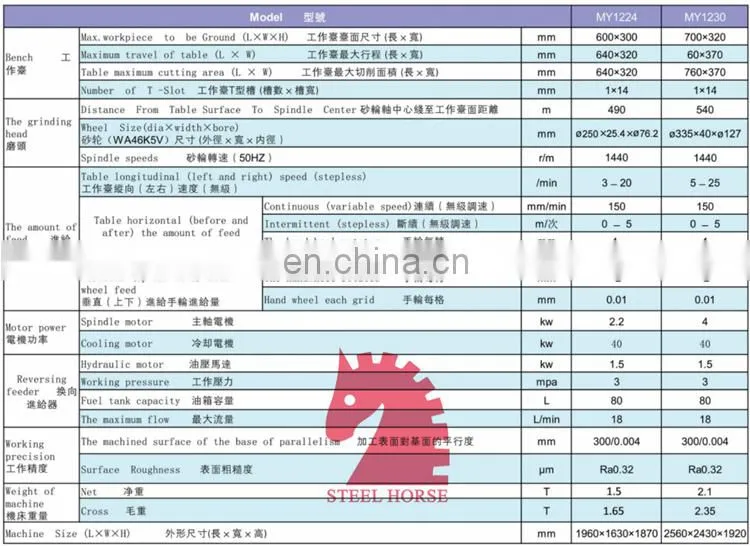

Technical Parameters |
Units |
MY1022 |
MY1224 |
|
piece to be Ground |
Mm |
540*250*450 |
600*300*530 |
|
( L×W×H) | ||||
Max. Grinding Length |
Mm |
540 |
630 |
|
Max. Grinding Width |
Mm |
250 |
320 |
|
Distance From Table Surface To Spindle Center |
Mm |
450 |
530 |
|
Slide way |
|
V-type rail with Steel-ball |
V-type rail with Steel-ball |
|
V-type rail with Steel-ball |
Kg |
200 |
250 |
|
Table Size (L×W) |
Mm |
540*250 |
600*300 |
|
Speed OF Working Table |
m/min |
3-23 |
3-23 |
|
Number of T -Slot |
Mm*n |
14*1 |
14×1 |
|
Cross Feed On Handwheel |
Mm |
0.02/Graduation 2.5/revolution |
0.02/Graduation 2.5/revolution |
|
Vertical Feed On Handwheel |
Mm |
0.01/Graduation 1.25/revolution |
0.01/Graduation 1.25/revolution |
|
Wheel Size (dia.×width×bore ) |
Mm |
200*20*31.75 |
250*25.4*76.2 |
|
Spindle Speeds |
50Hz |
rpm |
2850 |
1450 |
|
0-6000 |
0-6000 |
||
Spindle Motor |
kw |
1.5 |
2.2 |
|
Hydraulic station motor |
kw |
1.5 |
2.2 |
|
Rapid Up and down Motor |
W |
|
120 |
|
Working Pressure |
Mpa |
3 |
4 |
|
Max.Capacity |
L/min |
18 |
20 |
|
Minimum Of Numerical |
L |
80 |
100 |
|
Paraller Level |
mm |
300:0.005 |
300:0.005 |
|
Surface Roughness |
μm |
Ra0.32 |
Ra0.32 |
|
Machine Size (L×W×H) |
mm |
1250*1600*1800 |
1960*1480*1850 |
|
Packing Size (L×W×H) |
mm |
1300*1620*1900 |
1960*1640*2020 |
|
Gross,Net |
T |
1.0,0.9 |
1.43 /1.3 |
|
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench
(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner
(9) wheel dresser holder (10) machine stand pad (11) wheel flange
(12) diamond wheel dresser (diamond pen) (13) permanent chuck
Optional accessories:
(1) tiltable permanent chuck or electro magnetic chuck (2) demagnetizer (3) angle dresser
(4) radius dresser (5) precision vice (6) 2- axis digital readout system
(7) working light (8)wheel flange
