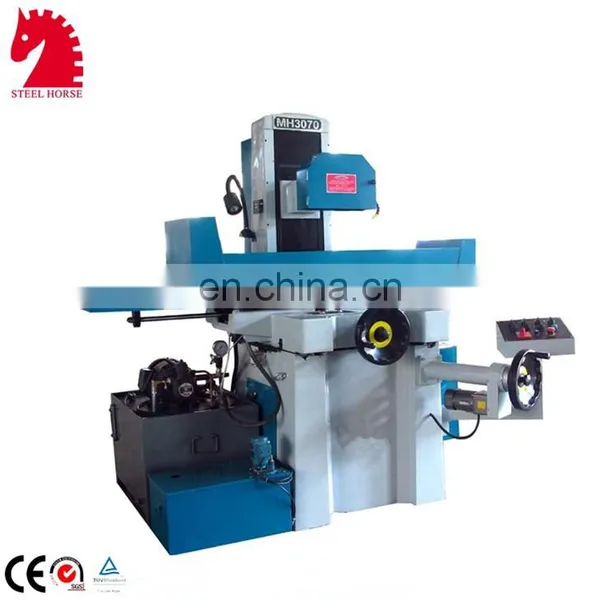

MY820 hydraulic small Surface grinding machine price
Standard features:
* 3 – axis manual operation
* High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
* Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
*Enlarged spindle housing for heavier grinding
* V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability
* Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 vides quiet,vibration free operation for better workpiece accuracy.
* M618: roller steel balls on linear table ways for easy and smooth longitudinal movements and “V+Flat” shape saddle ways for rigidity.
* Mid-level downfeed handwheel placement for convenient and easy positioning for Z-axis
* Manual lubrication system provides lubrication to all necessary mechanism saddle&column ways,bearings and lead screws for better machine performance and less maintenance.
* Convenient control panel including all buttons and switches.
*Digital readout system – two axis (Z& Y axis) digital readout
The min.digital readout amount:0.001-0.005mm

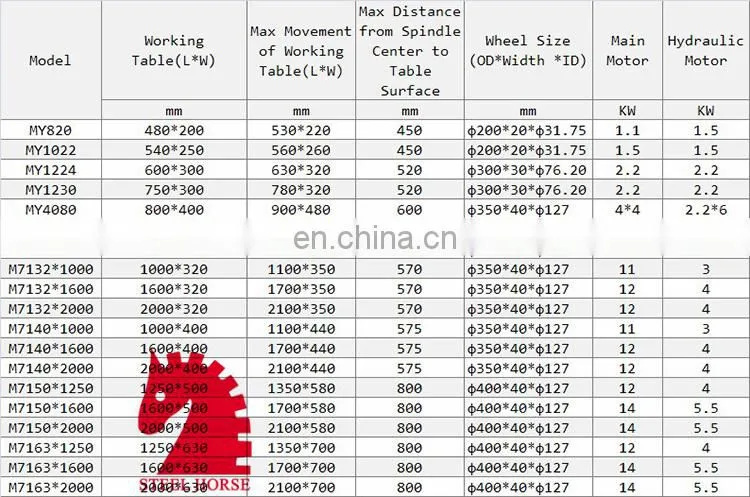

Specifications:
| Model | Units | MY820 | MY1022 | MY1224 | MY1230 | |
| Table Size (L×W) | mm | 480*220 | 540*250 | 600*300 | 750×300 | |
| ( L×W) | ||||||
| table travel | mm | 530x220 | 560x260 | 630x320 | 780x320 | |
| speed of working table | m/min | 3-20 | ||||
| Distance From Spindle to table | mm | 450 | 450 | 530 | 530 | |
| Table Slide way | / | V-type rail with Steel-ball | Double V-type rail | |||
| V-type rail with Steel-ball | kg | 200 | 200 | 250 | 250 | |
| Number of T -Slot | mm*n | 14*1 | ||||
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 4/revolution | |||
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 2/revolution | |||
| Wheel Size (dia.×width×bore ) | mm | 200*20*31.75 | 250*25*76.2 | |||
| wheel Speeds(50HZ) | rpm | 2850 | 2450 | |||
| Spindle Motor | kw | 1.1 | 1.5 | 2.2 | 2.2 | |
| Hydraulic station motor | kw | 1.5 | 1.5 | 2.2 | 2.2 | |
| Rapid Up and down Motor | w | 120 | 120 | |||
| Working Pressure | Mpa | 3 | 3 | 4 | 4 | |
| Max.Capacity | L/min | 18 | 18 | 20 | 20 | |
| Fuel tank capacity | L | 80 | ||||
| Packing Size (L×W×H) | mm | 1700*1200*1940 | 1300*1620*1900 | 1960*1640*2020 | 1960*1640*2020 | |
| Net,Gross | kg | 750/850 | 900/1000 | 1300/1430 | 1400/1530 | |
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench
(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner
(9) wheel dresser holder (10) machine stand pad (11) wheel flange
(12) diamond wheel dresser (diamond pen) (13) permanent chuck
Optional accessories:
(1) tiltable permanent chuck or electro magnetic chuck (2) demagnetizer (3) angle dresser
(4) radius dresser (5) precision vice (6) 2- axis digital readout system
(7) working light (8)wheel flange
