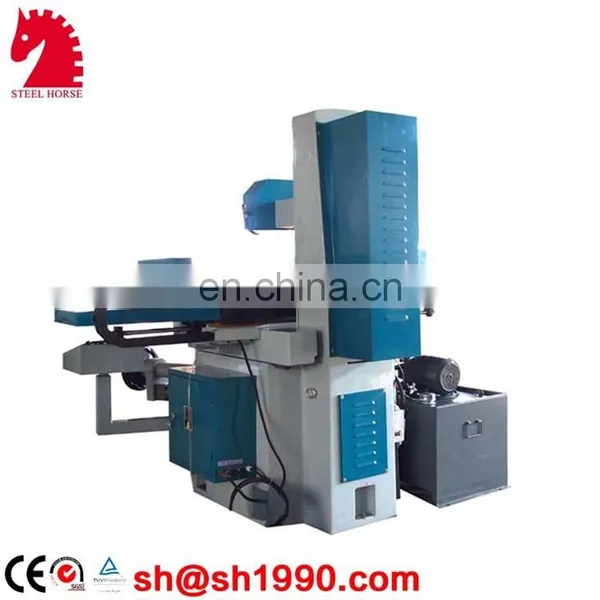

MY1230 Hydraulic Automatic surface grinding machine for metal
Standard features:
* 3 – axis manual operation
* High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
* Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
*Enlarged spindle housing for heavier grinding
* V3 grade spindle motor for powerful output to achieve prescicion work standards and better grinding capability
* Cartridge spindle w/4 preloaded class 7 (P4) bearing and run our of taper nose better than 0.00060 vides quiet,vibration free operation for better workpiece accuracy.
* M618: roller steel balls on linear table ways for easy and smooth longitudinal movements and “V+Flat” shape saddle ways for rigidity.
* Mid-level downfeed handwheel placement for convenient and easy positioning for Z-axis
* Manual lubrication system provides lubrication to all necessary mechanism saddle&column ways,bearings and lead screws for better machine performance and less maintenance.
* Convenient control panel including all buttons and switches.
*Digital readout system – two axis (Z& Y axis) digital readout
The min.digital readout amount:0.001-0.005mm
Standard Appendix:
(1) tool box (2) balancing stand and bar (3) handwheel nut (4)flange wrench
(5) screwdriver (6)Balancing screw (7)open-end wrench (8)inner hexagon spanner
(9) wheel dresser holder (10) machine stand pad (11) wheel flange
(12) diamond wheel dresser (diamond pen) (13) permanent chuck
Optional accessories:
(1) tiltable permanent chuck or electro magnetic chuck (2) demagnetizer (3) angle dresser
(4) radius dresser (5) precision vice (6) 2- axis digital readout system
(7) working light (8)wheel flange
| Model | Unit | MY1230 | ||
| Bench | piece to be Ground (L×W×H) | mm | 700×320 | |
| Maximum travel of table (L × W) | mm | 760×320 | ||
| Table maximum cutting area (L × W) | mm | 760×320 | ||
| Number of T -Slot | mm | 1×14 | ||
| The grinding head | Distance From Table Surface To Spindle Center | m | 540 | |
| Wheel Size(dia×width×bore) | mm | ø335×30×ø127 | ||
| Spindle speeds | r/m | 1440 | ||
| The amount of feed | Table longitudinal (left and right) speed (stepless) | /min | 5-25 | |
| Table horizontal (before and after) the amount of feed | Continuous (variable speed) | mm/min | 150 | |
| Intermittent (stepless) | m/time | 0-5 | ||
| The handwheel rotates | mm | 4 | ||
| Hand wheel each grid | mm | 0.02 | ||
| Vertical (up and down) feed wheel feed | The handwheel rotates | mm | 2 | |
| Hand wheel each grid | mm | 0.01 | ||
| Motor power | Spindle motor | kw | 4 | |
| Cooling motor | kw | 40 | ||
| Reversing feeder | Hydraulic motor | kw | 1.5 | |
| Working pressure | mpa | 3 | ||
| Fuel tank capacity | L | 80 | ||
| The maximum flow | L/min | 18 | ||
| Working precision | The machined surface of the base of parallelism | mm | 300/0.004 | |
| Surface Roughness | μm | Ra0.32 | ||
| Weight of machine | Net | T | 2.1 | |
| Cross | T | 2.35 | ||
| Machine Size (L×W×H) | mm | 1990×1700×1990 | ||
