MK7340/M7340/M7340PLC CNC rotary table horizontal spindle surface grinding machine

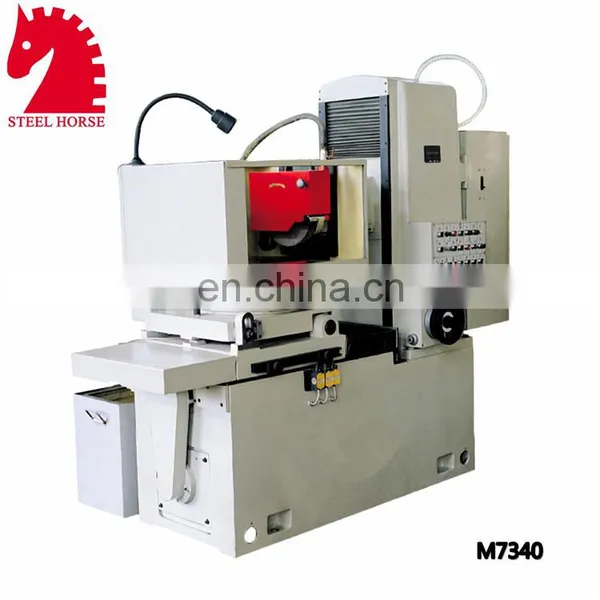

1.Introduction of M7340 Series Horizontal Shaft Table Grinder
M7340 horizontal axis circular table surface grinder is a new type of horizontal axis circular table surface grinder developed by our company by absorbing the advanced grinding machine structure and manufacturing technology at home and abroad. Workbench 500 overall layout, the work table can be adjusted to achieve ± 3 °, grinding concave or convex, to achieve the requirements of internal and external cone grinding workpiece.
M7340P horizontal axis rotary table surface grinder simple CNC touch screen series, is our company's upgrading of ordinary grinder products, using touch screen man-machine dialogue operating system plus digital servo feed control system. The automatic processing control function is upgraded on the basis of preserving the original manual functions, and the programming process is not required more simple than the full CNC. The grouping parameters of the machine tool processing process can be set according to the machining requirements of the processing workpieces, which is convenient, simple and intuitive, and is extremely large. The convenience of the machine operator.
MK7340 CNC horizontal axis circular table surface grinder, using advanced CNC control system, powerful, stable performance. Vertical and horizontal feed two-axis linkage, AC servo motor drive, high positioning accuracy, liquid crystal display, with a complete programming and automatic processing and compensation. It can automatically complete the grinding plane size control, the processing program can be automatically cycled, the product processing accuracy is consistent, the rotation is flexible, and the precision is high. The higher degree of automation of machine tools enables one person to operate multiple machine tools, reduce labor costs for enterprises, and improve the quality of product processing.
2, the main manufacturing standards for machine tools
JB/T 9872-1999 Metal Cutting Machines General Specifications for Machined Parts
JB/T 9874-1999 Metal Cutting Machine Assembly General Specifications
JB/T 10051-1999 Metal Cutting Machines Hydraulic System General Specifications
JB/T9909.1-99.3-1999 "Vertical Axis Circular Surface Grinder Accuracy Test"
3, the main accuracy of the machine
Flatness of table top 0.01mm
Table face runout 0.01mm
Radial runout of the cone of the grinding wheel spindle 0.005mm
Axial rotation of grinding wheel spindle 0.005mm
The thickness of the sample after grinding 0.01mm
