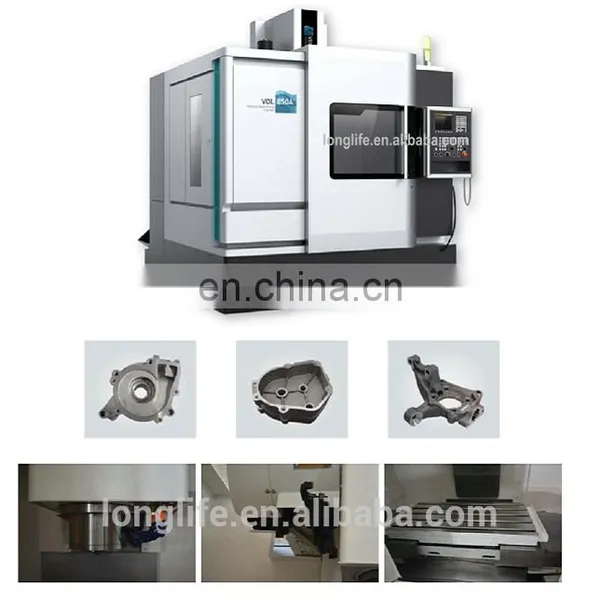

Catalogue of Linear Way and Box Way Cnc Vertical Machining Center With Atc photo-2
Catalogue of Linear Way and Box Way Cnc Vertical Machining Center With Atc photo-3
Catalogue of Linear Way and Box Way Cnc Vertical Machining Center With Atc photo-4
Catalogue of Linear Way and Box Way Cnc Vertical Machining Center With Atc photo-5
Catalogue of Linear Way and Box Way Cnc Vertical Machining Center With Atc photo-6
US$ 20,000 - 70,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
DALIAN
Place of Origin:
Liaoning, China
Type:
Vertical
Contact Supplier Request Quote Chat Now
Machining Center Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DALIAN
Place of Origin Liaoning, China
Type Vertical
Certification CE; ISO9001; GB/T19001:2008
Warranty 1 Year
Weight depends
Dimension(L*W*H) depends
Voltage Customer's Requirement
Condition New
Power(W) 15~40kW

Catalogue of CNC Vertical Machining Center

Recommended VMC
VDF850(1000x500mm) 3/4-axis CNC Vertical Machining Center Box Ways



VDL1000(1120x560mm) 3-axis CNC Vertical Machining Center

Machine Featurers:

1. With CE Certificate;

2. National Inspection-free products

3. Highly rigid and stable machine structure;

4. High precision linear on all three-axis;

5. High precision spindle and High spindle speed: 8000~10000rpm;

6. Fast and reliable tool changing mechanism;

7. Cooling system;

8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;

Brief Introduction

There are four series of CNC machining center in our company:



CNC Horizontal Machining Center, CNC Vertical Machining Center, CNC High-speed Vertical Machining Center and CNC Milling Machine



CNC Vertical Machining Center: VDL500;VDL600A;VDL800;VDL1000;VDL1200; VDL1400A;VDF850 ;VDF1000; VDF1200; VDF1500; VDF1800

VDF series: Box way;

VDL series: X/Y-Linear way, Z-box way;

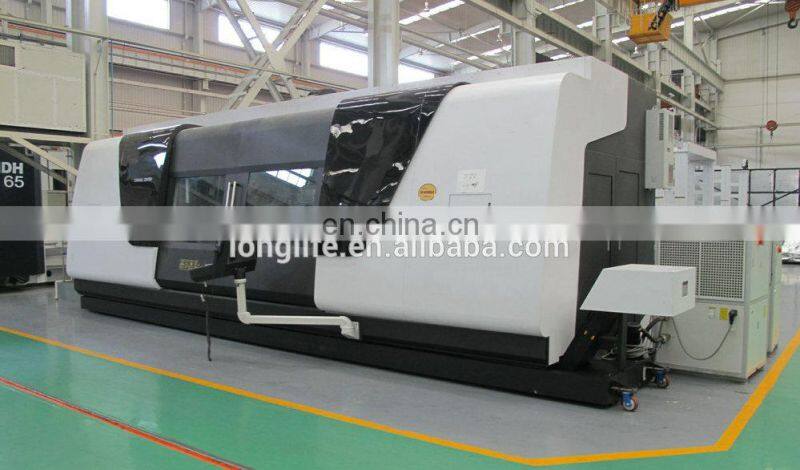

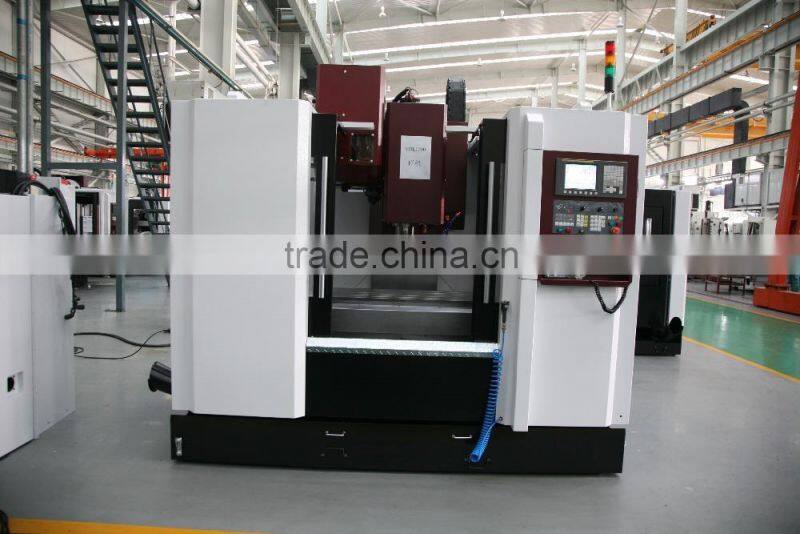

Real Photos

Catalogue of linear way and box way cnc vertical machining center with atc



Catalogue of linear way and box way cnc vertical machining center with atc

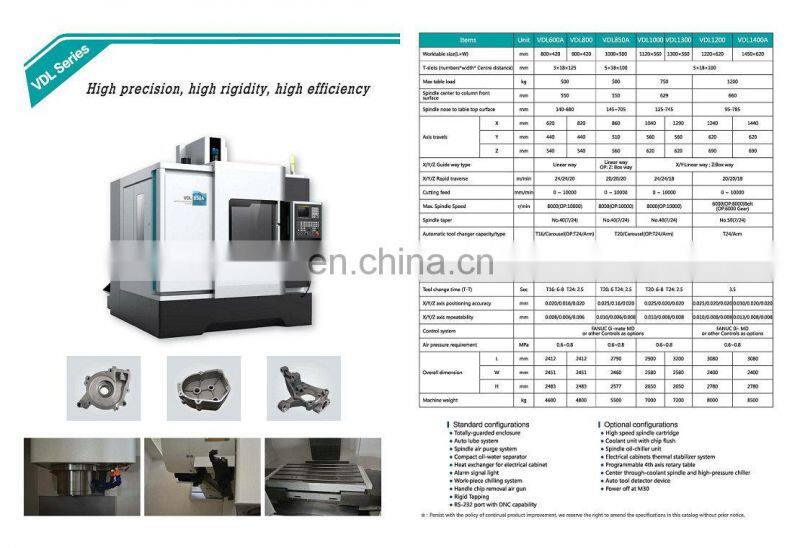

Catalogue
Catalogue of linear way and box way cnc vertical machining center with atc
Main Technical Data

Item

VDL500

VDL600A

VDF850

VDL1000

VDF1000

VDL1200

VDF1200

VDL1400A

VDF1500

VDF1800

Table(L×W)(mm)

700×320

800×420

1000×500

1120×560

1220×620

1450×620

1700×800

2000×800

T-slot(Numbers×Width×Distance)

3×14×110

3×18×125

5×18×100

5×18×100

5×18×100

5×18×100

6×18×125

6×18×125

Table load Max(kg)

150

500

500

750

1500

1500

2500

2500

X/Y/Z rapid traverse speed(m/min)

30/30/30

24/24/20

20/20/18

24/24/18

24/24/18

24/24/18

15/15/12

15/15/12

Feed rate(mm/min)

1~10000

1~10000

1~7600

1~10000

1~10000

1~10000

1~6000

1~6000

Spindle speed range(r/min)

60~10000

60~10000

60~8000

60~8000

45~6000

45~6000

45~6000

45~6000

Tool magazine capacity/Type

12/drum

16/drum 24/swing arm

20/drum
24/swing arm

20/drum 24/swing arm

24/swing arm

24/swing arm

24/swing arm

24/swing arm

Tool adaptor type

BT40

BT40

BT40

BT40

BT50

BT50

BT50

BT50

Max. Tool weight (kg)

6

7

7

7

15

15

15

15

Time of tool change(T-T) (sec)

6~8

6~8/3.5

6~8/3

6~8/3

3.5

3.5

3.5

3.5

Air pressure requirement (MPa)

0.6

0.6

0.5

0.6

0.6

0.6

0.6

0.6

Power requirement (kW)

15

25

25

25

35

35

40

40
Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353

7, Fax us:+86-411-84410129
