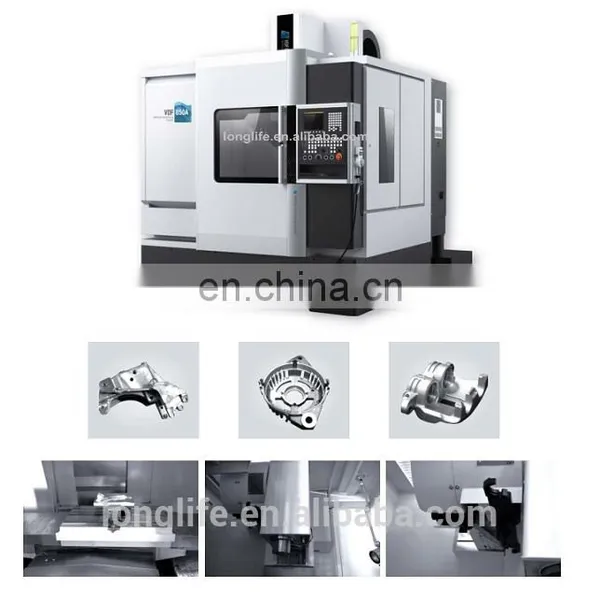

Help CenterVDF1500 Sliding Guide Way Cnc Vertical Machining Center Cnc
Related Products
-
MDH50 OKK 4 Axis Cnc Horizontal Machining CenterUS$ 100,000 - 700,000MOQ: 1 Set -
VDF850/1000/1200/1500/1800 3 Axis Cnc Vertical Machining CenterUS$ 20,000 - 150,000MOQ: 1 Set
-
MDH100 5 Axis Cnc Horizontal Machining CenterUS$ 100,000 - 700,000MOQ: 1 Set
-
SVW80B 5 Axis Cnc Vertical Machining Center/5 Axis Cnc VmcUS$ 100,000 - 500,000MOQ: 1 Set
-
VDL1000 3 Axis Cnc Vertical Machining CenterUS$ 20,000 - 70,000MOQ: 1 Set
1. With CE Certificate;
2. National Inspection-free products
3. Highly rigid and stable machine structure;
4. High precision Box Ways on all three-axis;
5. High precision spindle and High spindle speed: 8000~10000rpm;
6. Fast and reliable tool changing mechanism;
7. Cooling system;
8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;
Specifications |
Unit |
Parameter |
Table ( L× W) |
mm |
1700×800 |
T-slot (Numbers × Width × Distance) (b/t slots) |
mm |
6×18×125 |
Table load Max |
kg |
2500 |
Distance from spindle center line to column guide way surface |
mm |
850 |
Distance from spindle nose end face to table upper surface |
mm |
200~962 |
X/Y/Z travel |
mm |
1530/800/762 |
X/Y/Z guide way type |
|
Sliding guide way |
X/Y/Z rapid traverse speed |
m/min |
15/15/12 |
Feed rate |
mm/min |
1~6000 |
Positioning accuracy |
mm |
X:0.030 Y/Z:0.020 |
Repeat positioning accuracy |
mm |
X:0.013 Y/Z:0.008 |
X/Y/Z servo motor power |
kW |
3/3/3 |
Spindle motor power |
kW |
11/15 wide range motor |
Spindle speed range |
r/min |
45~6000 |
Spindle taper |
|
#50(7/24) |
Tool magazine capacity/Type |
|
24/swing arm |
Tool adaptor type |
|
BT50 |
Max. Tool weight |
kg |
15 |
Max. Tool diameter / length |
mm |
110/350 swingarm |
Time of tool change (T-T) |
sec |
3.5 |
Air pressure requirement |
MPa |
0.6 |
Power requirement |
kW |
40 |
Overall dimension (L × W × H) |
|
4300×3480×3120 |
Net weight |
kg |
14000 |
Machine covers an area of size |
mm |
5530×3895 |
Pls send inquiry to me for optioanl accessories and other further information about such cnc vertical machining centers.
