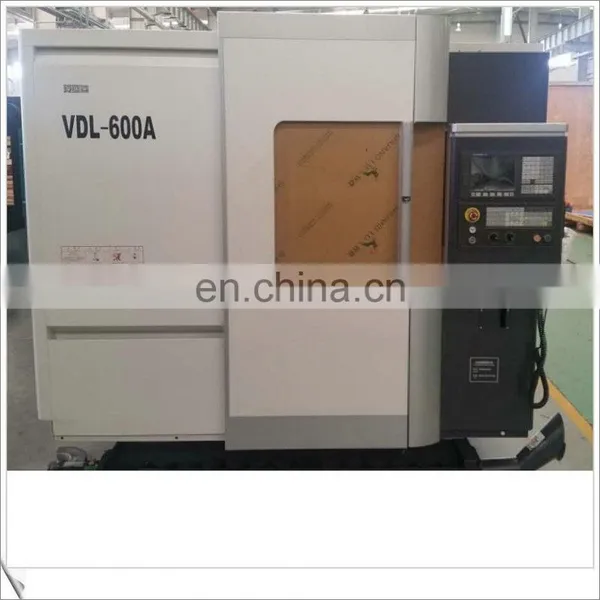

VDL500/600 cnc vertical machining center
1. With CE Certificate;
2. National Inspection-free products
3. Highly rigid and stable machine structure;
4. High precision linear on all three-axis;
5. High precision spindle and High spindle speed: 8000~10000rpm;
6. Fast and reliable tool changing mechanism;
7. Cooling system;
8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;
New Design:
Specifications |
Unit |
VDL500 vmc |
VDL600A vmc |
Table(L×W) |
mm |
700×320 |
800×420 |
T-slot(Numbers×Width×Distance)(b/t slots) |
mm |
3×14×110 |
3×18×125 |
Max. Table load |
kg |
150 |
500 |
The distance from spindle center line to column guide way surface |
mm |
430 |
511 |
The distance from spindle nose end face to table upper surface |
mm |
140~520 |
150~670 |
X/Y/Z travel |
mm |
450/350/380 |
600/420/520 |
X/Y/Z guide way type |
|
Linear way |
Linear way |
X/Y/Z rapid traverse speed |
m/min |
30/30/30 |
24/24/20 |
Feed rate |
mm/min |
1~10000 |
1~10000 |
X/Y/Z servo motor power |
kW |
1.4/1.4/1.6 (1.2/1.2/1.8) ( 2.85/2.85/2.85) |
3/3/3 (1.2/1.2/1.8) (1.8/1.8/2.5) |
X/Y/Z servo motor torque |
N.m |
7/7/7 |
11/11/11 |
Positioning accuracy |
mm |
0.016 |
X/Z:0.020 Y:0.016 |
Repeat positioning accuracy |
Nm |
0.006 |
X/Z:0.008 Y:0.006 |
Spindle motor power |
kW |
3.7/5.5 |
7.5/11 |
Spindle speed range |
r/min |
60~10000 |
60~8000 |
Spindle taper |
|
#40(7/24) |
#40(7/24) |
Tool magazine capacity/Type |
|
12/drum |
16/drum |
Tool adaptor type |
|
BT40 |
BT40 |
Max. Tool weight |
kg |
6 |
7 |
Max. Tool diameter/length |
mm |
80/200 drum |
100/280 drum 77/280 swing arm |
Time of tool change(T-T) |
sec |
6~8 |
6~8/3.5 |
Air pressure requirement |
MPa |
0.6 |
0.6 |
Power requirement |
kW |
15 |
25 |
Overall dimension(L×W×H) |
mm |
2450×1590×2200 |
2310×2040×2337 |
Net weight |
kg |
2000 |
4800 |
Pls send inquiry to me for optioanl accessories and other further information about such cnc vertical machining center.
