Product Details
Brand Name: | Luzhong machine | Place of Origin: | Shandong, China | Model Number: | CQ6230B |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

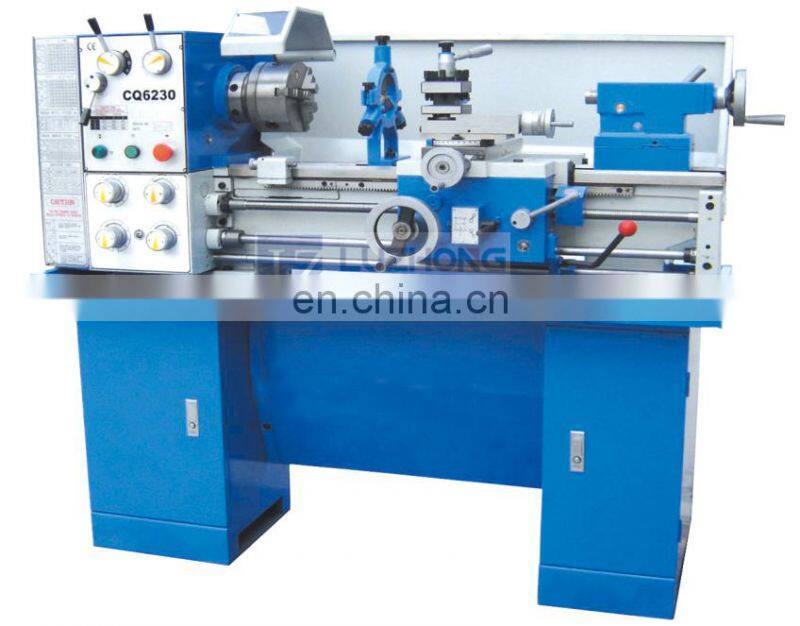

Mini bench lathe for sale CQ6230 mini bench lathe
Product description:

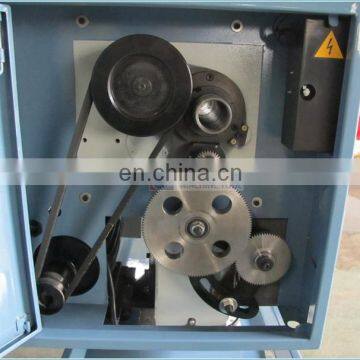

1.The machine adopts full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch.
2.Vertical and horizontal feed adopts interlocking mechanism, safety is good.
3.The machine tool uses two mountains and two moment rail, high frequency quenching, high accuracy, high rigidity, good abrasion resistance.
Product main technical Specifications:
Specifications | CQ6230B |
Max .Swing over bed | Φ300mm |
Max .Swing over cross slide | Φ180mm |
Max .Swing in gap | Φ430mm |
Max. distance between center | 940mm |
Spindle bore | Φ38mm |
Taper of spindle bore | M.T.#5 |
Range of spindle speed | 65~1400rpm |
Range of longitudinal feeds | 0.079~1.291mm/rev. |
Range of cross feeds | 0.017~0.276mm/rev. |
Range of metric threads | 0.4~7mm |
Range of inch threads | 4~60TPI |
Max. size of tool shank | 16×16mm |
Taper of tailstock bore | M.T.#3 |
Power of main motor | 1.1/1.5kw |
Unitary packing size | 1680×750×1400mm |
Asunder packing size | 1680×750×750mm |
Left stand packing size | 690×400×370mm |
Right stand packing size | 690×400×300 mm |
Gross weight | 430kg |
Net weight | 480kg |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
Machine Model: Mini bench lathe for sale CQ6230 mini bench lathe
Type of package: Plywood case
N.W./G.W.: 430/480KGS
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
