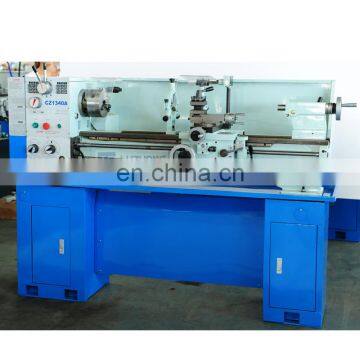

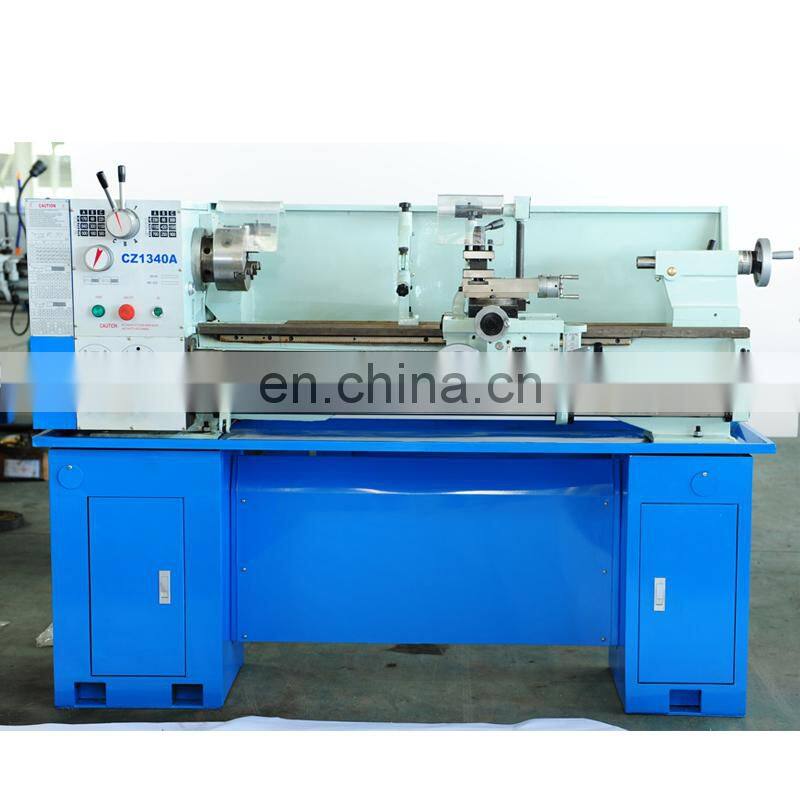

Horizontal Cheap CZ1340A CZ1440A Bench Lathe Machine price
The main performance characteristics:
The clutch inside headstock realize the spindle to change FWD/REV direction.
It avoids electric motor to be changed frequently
Supersonic frequency hardened bed ways
Precision roller bearing for spindle
High quality steel, ground and hardened gear inside headstock
Easy and fast operating gear box
Enough strong power motor
ASA D4 camlock spindle nose
Various thread cutting available
Product main technical parameters:
ITEM |
| CZ1340A | CZ1440A |
Swing over bed | mm | φ330 | φ350 |
Swing over carriage | mm | φ195 | φ215 |
Swing over gap | mm | φ476 | φ500 |
Width of bed-way | mm | 186 | 186 |
Distance between centers | mm | 1000 | 1000 |
Taper of spindle |
| M.T.5 | M.T.5 |
Spindle diameter | mm | φ38 | φ38 |
Step of speed |
| 18 | 18 |
Range of speed | rpm | Low step 60~1100 | Low step 60~1100 |
High step 85~1500 | High step 85~1500 | ||
Head |
| D1-4 | D1-4 |
Metric thread |
| 26kinds (0.4~7mm) | 26kinds (0.4~7mm) |
Inch thread |
| 34kinds(4~56T.P.I) | 34kinds(4~56T.P.I) |
Moulder thread |
| 16 kinds(0.35~5M.P) | 16 kinds(0.35~5M.P) |
Diametral thread |
| 36 kinds(6~104D.P) | 36 kinds(6~104D.P) |
Longitudinal feeds | mm/r | 0.052~1.392 (0.002”~0.0548”) | 0.052~1.392 (0.002”~0.0548”) |
Cross feed s | mm/r | 0.014~0.38 (0.00055”~0.015”) | 0.014~0.38 (0.00055”~0.015”) |
Diameter lead screw | mm | φ22(7/8”) | φ22(7/8”) |
Pitch of lead screw |
| 3mm or 8T.P.I | 3mm or 8T.P.I |
Saddle travel | mm | 1000 | 1000 |
Cross travel | mm | 170 | 170 |
Compound travel | mm | 74 | 74 |
Barrel travel | mm | 95 | 95 |
Barrel diameter | mm | φ32 | φ32 |
Taper of center | mm | M.T.3 | M.T.3 |
Motor power | Kw | 1.5(2HP) | 1.5(2HP) |
Motor for coolant system’s power | Kw | 0.04(0.055HP) | 0.04(0.055HP) |
Machine(L×W×H) | mm | 1920×760×760 | 1920×760×760 |
Stand(left) (L×W×H) | mm | 440×410×700 | 440×410×700 |
Stand (right)(L×W×H) | mm | 370×410×700 | 370×410×700 |
Machine | Kg | 500/560 | 505/565 |
Stand | Kg | 70/75 | 70/75 |
| | | |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
